Capacity/Door: 150 kg
Track: 5040
Movement: Straight
Docs
Find all MANTION product lines and all the technical information on our products. If you need help, contact us.
Looking for our catalogues? Click here.
200 & 2200 series – Capacity door 150 KG
200 & 2200 series – Capacity door 400 KG
200 & 2200 series – Capacity door 80 KG
600 series – Weight per panel: 130 Kg
Weight per panel: 130 Kg
Track: 8570
Movement: Concertina folding doors
600 series – Weight per panel: 20 Kg
600 series – Weight per panel: 35 Kg
600 series – Weight per panel: 75 Kg
Weight per panel: 75 Kg
Track: 6255
Movement: Concertina folding doors

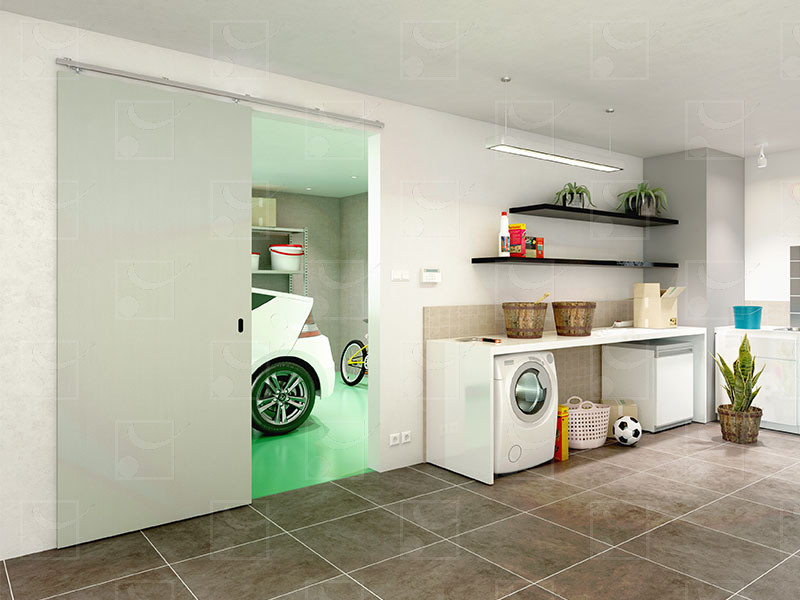

CADETTE
Capacity/Door: 40 kg
Track: Galvanized Steel (2525F)/Aluminium (2526F)
Movement: Straight
For doors up to 200 Kg maxi
Capacity/Door: 200 kg
Track: Stainless steel 304L (9030 X)
Movement: Straight
For doors up to 200 Kg maxi
Capacity/Door: 200 kg
Track: Stainless steel 316L (9030 X)
Movement: Straight
For doors up to 400 Kg maxi
Capacity/Door: 400 kg
Track: Stainless steel 304L (9040 X)
Movement: Straight
For doors up to 400 Kg maxi
Capacity/Door: 400 kg
Track: Stainless steel 316L (9040 X)
Movement: Straight
For doors up to 60 Kg maxi
Capacity/Door: 60 kg
Track: Stainless steel 304L (9010 X)
Movement: Staight
For doors up to 60 Kg maxi
Capacity/Door: 60 kg
Track: Stainless steel 316L (9010 X)
Movement: Straight
For doors up to 600 Kg maxi
Capacity/Door: 600 kg
Track: Stainless steel 304L (9050 X)
Movement: Straight
INTEC
Capacity/Door: 80 kg
Door thickness: 8-10 mm
Track: Aluminium
Movement: Straight
Invisible door closer
MA 40A

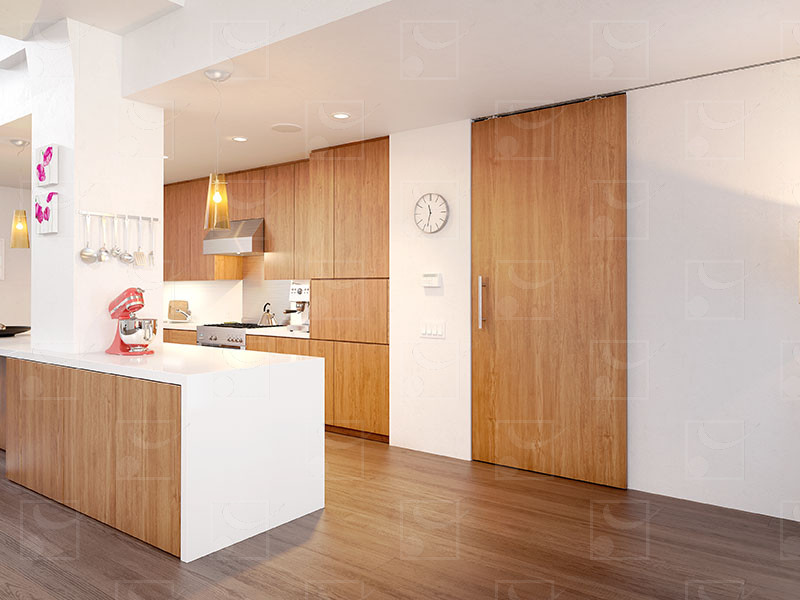

MA 80A
MINITUB
Moventiv 80 for glass doors weighing 20 – 80 kg
Capacity / Panels: Doors from 20 to 80 kg
Motor type: Linear motor
Movement : Straight motorised
See the rangeMoventiv 80 for wooden doors weighing 20 – 80 kg
Capacity / Panels: Doors from 20 to 80 kg
Motor type: Linear motor
Movement : Straight motorised
See the rangeOPENTEC F80
Capacity/Door: 80 kg
Door thickness: 10-12-12.7 mm
Max opening dimensions: 9 x 3 m (6+6 panels)
Track: Aluminium
Movement: Folding
OPENTEC FMF100
Capacity/Panel: 100 kg
Panel thickness: 70 mm
Profils: 60 mm min
Max opening dimensions: 6 x 2.4 m (3+5 panels)
Track: Aluminium
Movement: Folding
OPENTEC FMF150
Capacity/Panel: 150 kg
Panel thickness: 50 to 100 mm
Profils: 120 mm min
Max opening dimensions: 16.5 x 3.5 m (7+8 panels)
Track: Aluminium
Movement: Folding
OPENTEC FW75
Capacity/Panel: 75 kg
Panel thickness: 30 to 50 mm
Panel width: 400 to 1000 mm
Max opening dimensions: 12 x 4 m (6+6 panels)
Track: Aluminium
Movement: Folding
OPENTEC FWF100
Capacity/Panel: 100 kg
Panel thickness: 83 to 100 mm
Max opening dimensions: 16.5 x 3.5 m (7+8 panels)
Track: Aluminium
Movement: Folding
PICO 13-25-26
Tragkraft/Tür: 13 kg (PICO 13) 25 kg (PICO 25-26)
Track: PVC
Movement: Straight

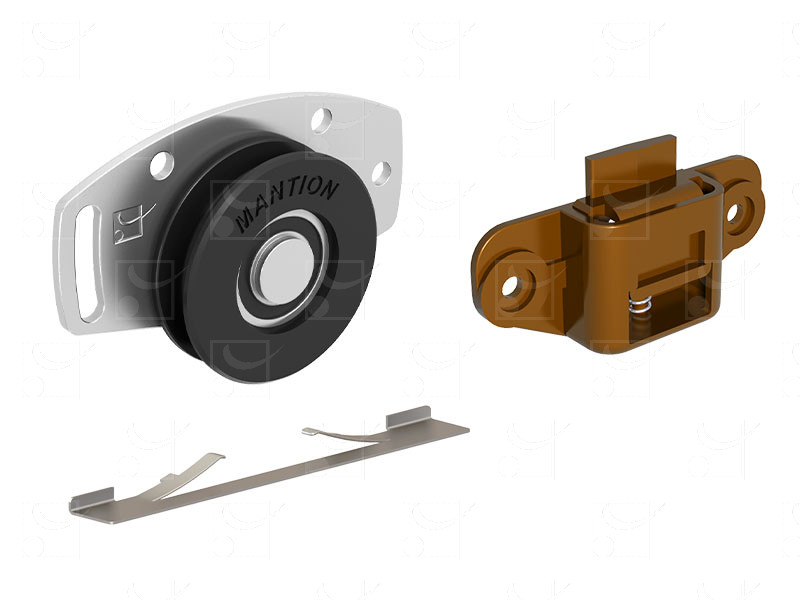

PICO 60
PICOSTAR 18
Capacity/Door: 55 kg
Track: Aluminium
Movement: Straight
Panel thickness: 18 mm
PICOSTAR 19
Capacity/Door: 55 kg
Track: Aluminium
Movement: Straight
Panel thickness: 19 mm
PICOSTAR 2
Capacity/Door: 55 kg
Track: Aluminium
Movement: Straight
Panel thickness: 12-19 mm
ROC-DESIGN
Capacity/Door:
- Type A-B-D-F: 120 kg
- Type E: 100 Kg
- Type C: 80 Kg
Track: Flat track with "black" finish
Movement: Straight

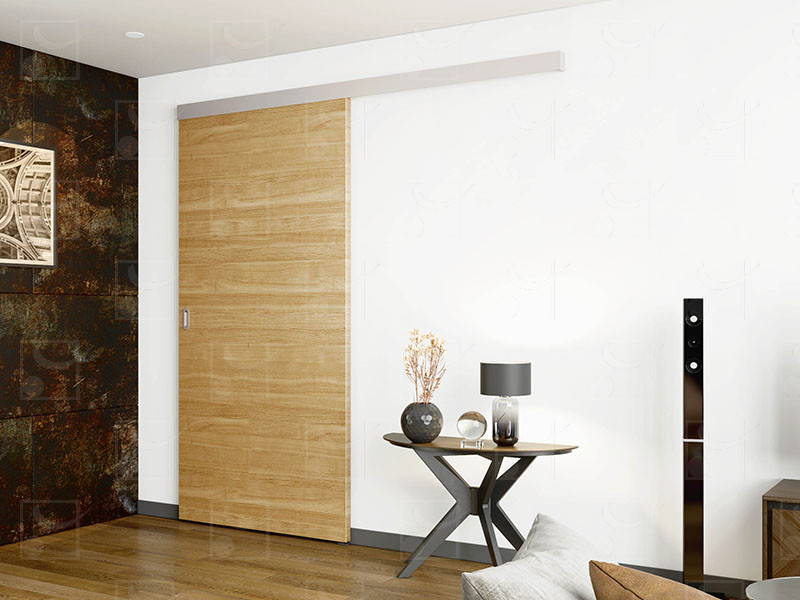

SAF 10-80
SAF 120 TELESCOPIC – 2 doors
Capacity / Door : 120 kg
Track : Aluminium
Movement : Straight
SAF 120 TELESCOPIC – 3 doors
Capacity / Door : 120 Kg
Track : Aluminium
Movement : Straight
SAF 80 TELESCOPIC – 3 doors
Capacity / Door : 80 kg
Track : Aluminium
Movement : Straight
SAF 81-120
SAF-FOLD for wooden doors up to 80 kg
Capacity of the 2 panels: 80 kg
Track: Anodised aluminium
Movement : Folding sliding
SAF-INSIDE Motorized set for single leaf glass door
Capacity/Door: 80 kg
Door thickness: 8 mm
Track: Aluminium
Movement: Straight
SAF-INSIDE Motorized set for single leaf wooden door
Capacity/Door: 80 kg
Track: Aluminium
Movement: Straight
SAF-INSIDE Set for double leaves wooden door
Capacity/Door: 80 kg
Track: Aluminium
Movement: Straight

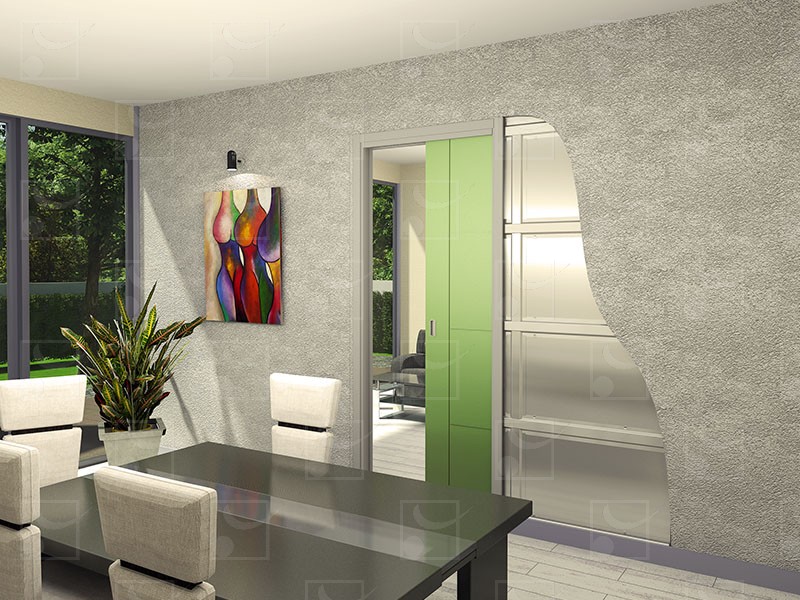

SAF-INSIDE Set for single leaf wooden door
Capacity/Door: 80 kg
Track: Aluminium
Movement: Straight
SAF-SLIM
SAFGLASS PINCE 120
Capacity/Door: 120 kg
Door thickness: 12 - 15 mm
Track: Aluminium
Movement: Straight
SAFGLASS PINCE 80
Capacity/Door: 80 kg
Door thickness: 8 - 10 - 12 mm
Track: Aluminium
Movement: Straight
SAFGLASS POWER
Capacity/Door: 80 or 2x50 kg
Door thickness: 8-10-12 mm
Track: Aluminium
Movement: Straight
SAFGLASS-INSIDE Set for double leaves glass door
Capacity/Door: 80 kg
Door thickness: 8 mm
Track: Aluminium
Movement: Straight
SAFGLASS-INSIDE Set for single leaf glass door
Capacity/Door: 80 kg
Door thickness: 8 mm
Track: Aluminium
Movement: Straight
Shutters stays 1300
Sliding system for shutters WIN-SLIDE 2
Capacity per panel: 80 kg
Panel thickness: 25-40 mm (up to 80 mm (1 channel) for a "shade screen" type mounting)
Panel types: Wood, Aluminium, PVC,etc.
Track: Anodised aluminium
Movement: Straight
See the range
SOFTCLOSE

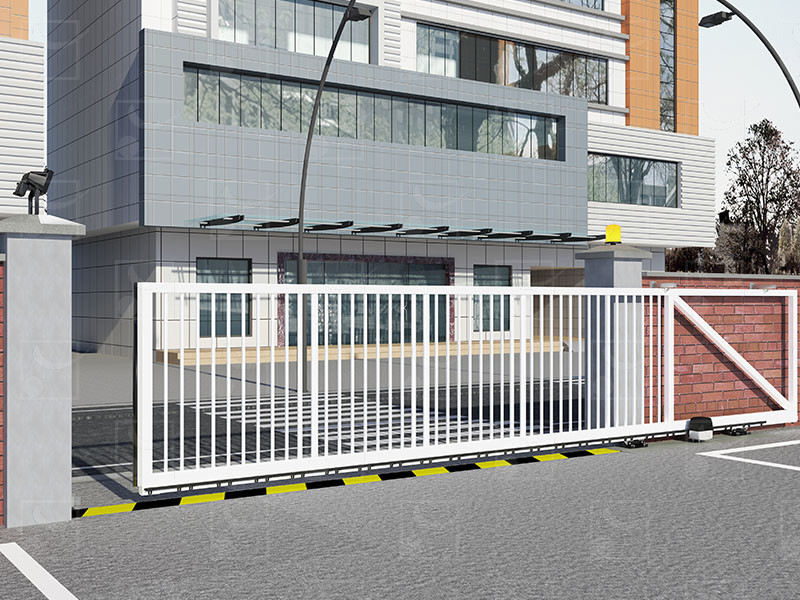

Steel cantilever gate – PAF version
Capacity: maximum opening of up to 10.5 m
Track: Steel
Movement: Straight
Hangers recommended for motorised version
Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.
See the rangeSteel cantilever gate – S version
Capacity: maximum opening of up to 10.5 m
Track: Steel
Movement: Straight
Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.
SYCOMM – Motorization (WIN-SLIDE and WIN-SLIDE-R)
Capacity per panel: 80 kg (1 panel), 200 kg (4 panels)
Panel thickness: 20-40 mm, 40-80 mm
Panel types: Wood, Aluminium, PVC ...
Track: Aluminium
Movement: Straight

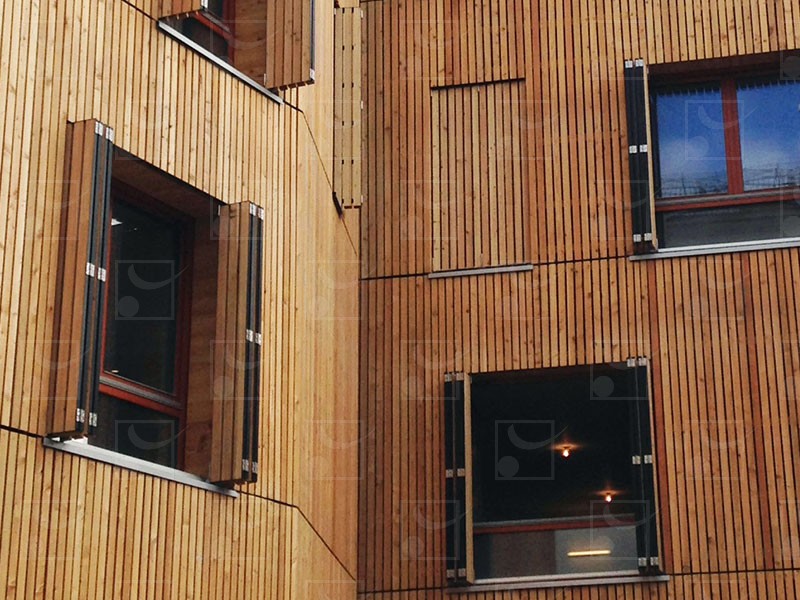

System for folding sliding shutters WIN-FOLD 2
Capacity per panel: 20 kg
Panel thickness: 30-34 mm
Panel width: 600 mm maxi
Track: Aluminium
Movement: Straight folding
System for motorizing swinging shutters WIBAT
Capacity per panel: 50 kg & 1,6 m² max. / 30 cm min. & 80 cm max.
Motor type: Motorized hinge pin
Supply voltage : 24 V DC
Installation: New / renovation
Movement: Swinging

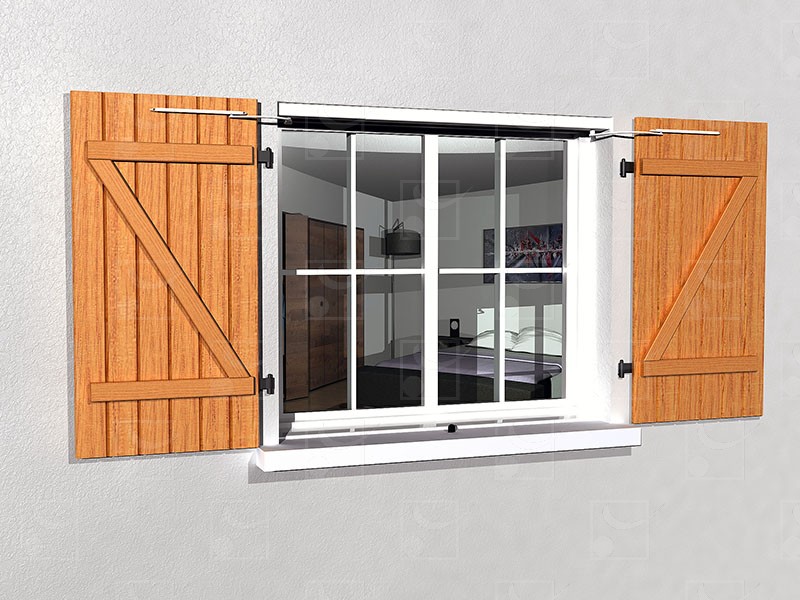

System for motorizing swinging shutters WIBAT LINTEAU
Capacity per panel: 50 kg & 1,6 m² max. / 40 cm min. & 80 cm max.
Motor type: Motorized arm
Supply voltage : 230VAC
Installation: New / renovation
Movement: Swinging

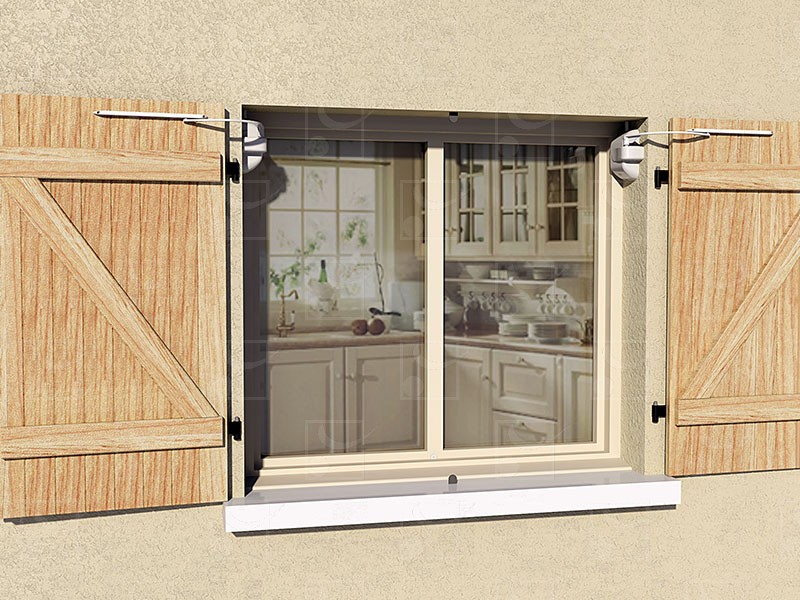

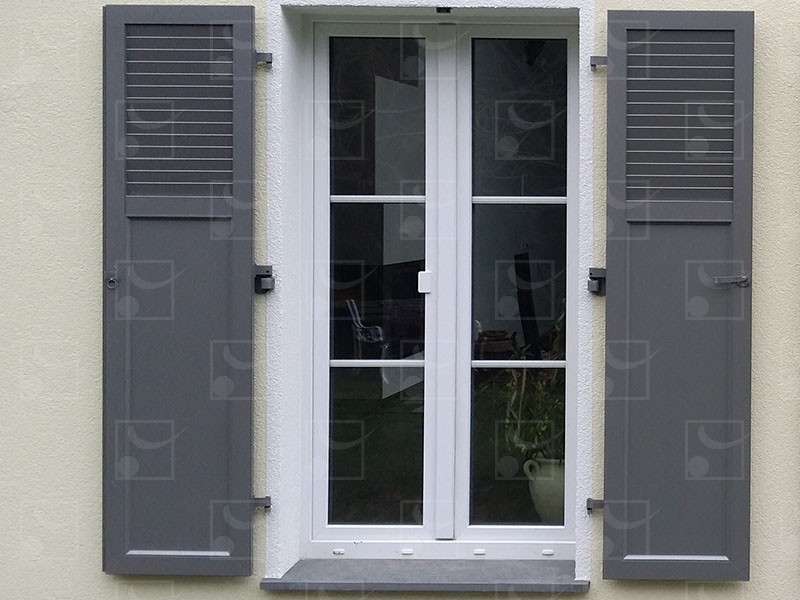

System for motorizing swinging shutters WIBAT-APPLIQUE
Capacity per panel: 50 kg & 1,6 m² max. / 40 cm min. & 80 cm max.
Motor type: Motorized arm
Supply voltage : 230V
Installation: New / renovation
Movement: Swinging

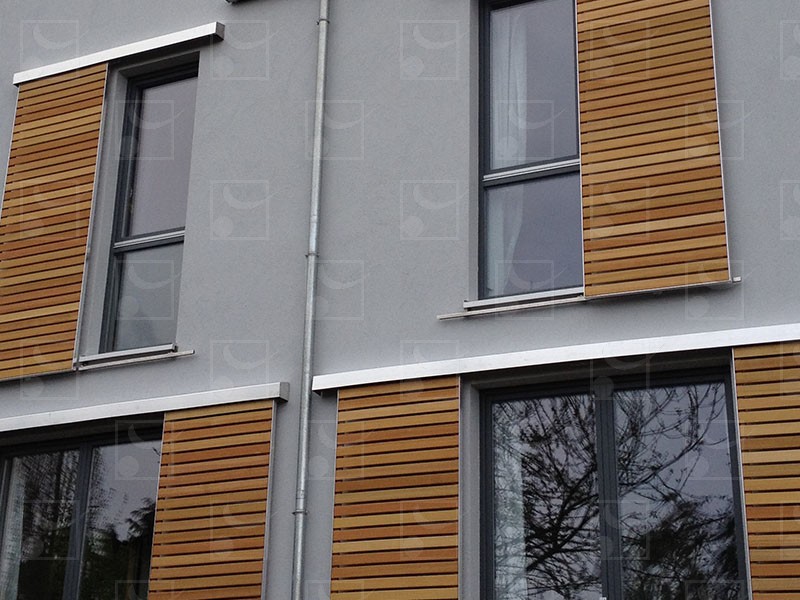

System for sliding shutters WIN-SLIDE-R: simple track or double track
Capacity per panel: 80 kg, 120 kg
Panel thickness: 20-40 mm, 40-80 mm
Panel types: Wood, Aluminium, PVC ...
Track: Aluminium
Movement: Straight

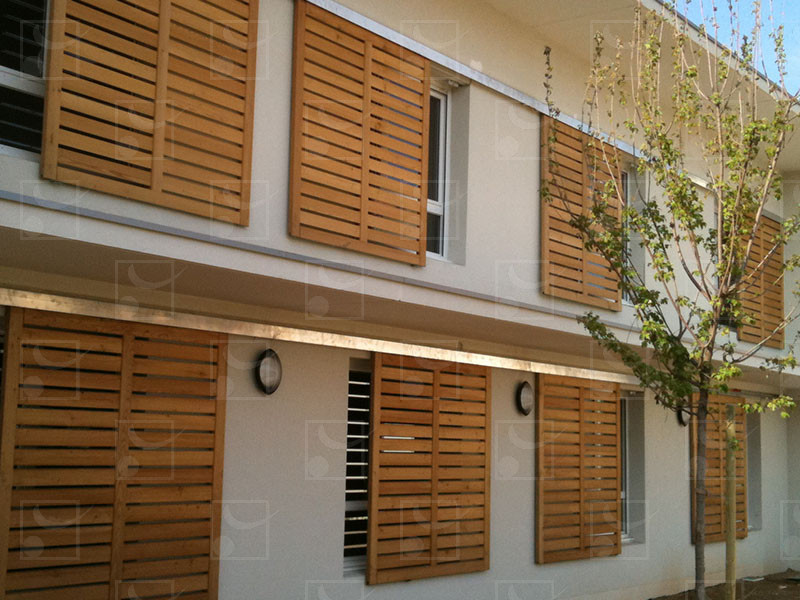

System for sliding shutters WIN-SLIDE: simple track
Capacity per panel: 80 kg
Panel thickness: 20-40 mm
Panel types: Wood, Aluminium, PVC ...
Track: Aluminium
Movement: Straight
TANGO
TUBEL
Capacity/door: 30 kg (edge-mounted) and 40 kg (face-mounted)
Track: Aluminium
Movement: Straight

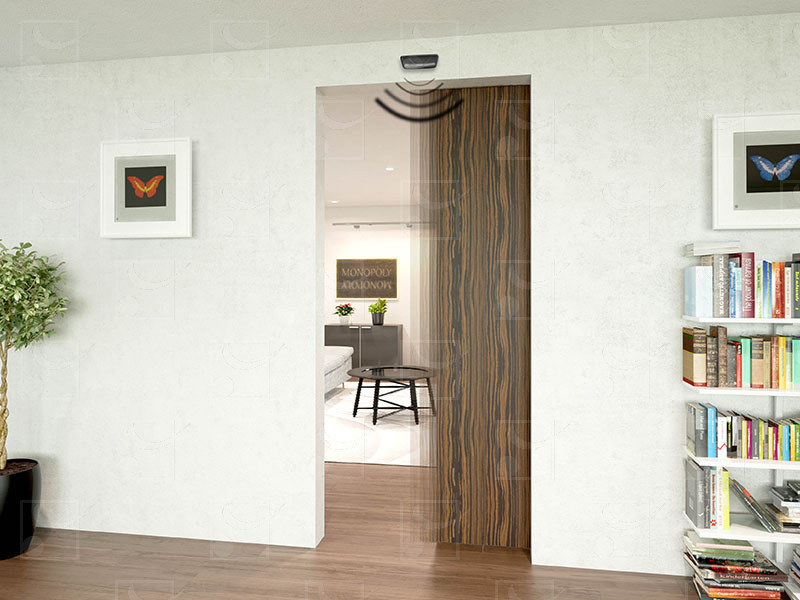

WIDOOR
Capacity/Pannel: 80 kg or 2x50 kg
Track: Aluminium
Movement: Straight motorized

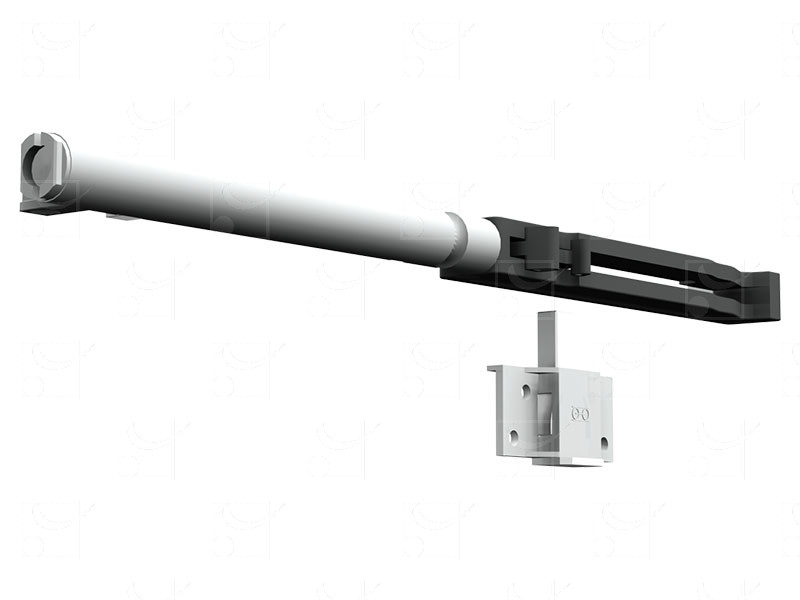

Damper closer system for gentle closing of doors (100 mm). Damper automatically follows door to its closed position. For doors between 61 and 81 Kg.
2 dampers recommended for doors 900 mm wide and over.
View product“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“V” shape groove wheel
“Invisible” flush-mounted hinge
“Invisible” flush-mounted hinge. The hinge is concealed inside the panel and is flush with the surface.
Advantages:
- 3D adjustment: depth (X): ± 2 mm / vertical (Z): ± 2.5 mm / horizontal (Y): ±1 mm
- Reversible hinge
- Width 23 mm
220V/24V DC 100W power supply
220 V/24 V DC 100W power supply for one opening. Length = 70 mm. Depth = 63 mm. Height = 88 mm.
View product220V/24V DC 240W power supply
220 V/24 V DC 240W power supply for 2 to 5 openings. Length = 63.5 mm. Depth = 135 mm. Height = 140 mm.
View productAccessories
Stainless steel brush finish and anodised aluminium fore the central part.Height 330 mm Ø 30 mm
View productAccessories
Stainless steel brush finish and anodised aluminium fore the central part.Height 370 mm Ø 30 mm
View productAdhesive seal – 3 m
Adhesive sealing brush grey – 2.15 m
Adjsutable guide
Adjsutable guide
Adjustable angle plate
Adjustable angle plate
Adjustable apron set
Adjustable bracket
- Adjustable mounting bracket 80 Kg with stainless steel screws and bolts. Vertical adjustment = 10 mm - Horizontal adjustment = 12 mm
Adjustable bracket
- Adjustable mounting bracket with stainless steel screws and bolts for panels up to 80 mm thick and 120 kg max. (track 11312). Vertical adjustment = 10 mm - horizontal adjustment = 25 mm

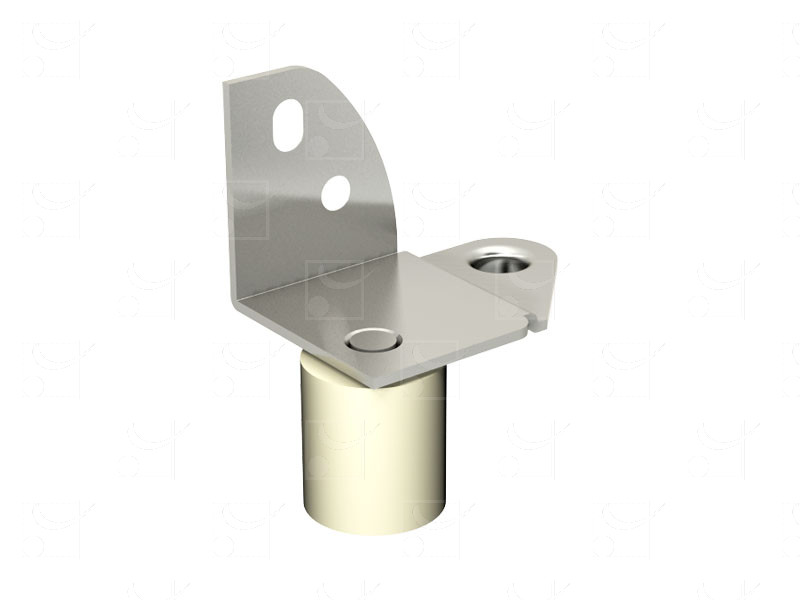

Adjustable guide
Adjustable guide
Adjustable guide
- Adjustable upper guide mounted on roller cages, for bottom sliding door - sealing type Height of the olive = 30 mm
Adjustable guide
- Long adjustable upper guide mounted on roller cages, for bottom sliding door - sealing type Height of the olive = 65 mm
Adjustable guide
- Long adjustable upper guide mounted on roller cages, for bottom sliding door - screwing type Height of the olive = 65 mm
Adjustable guide
Adjustable guide

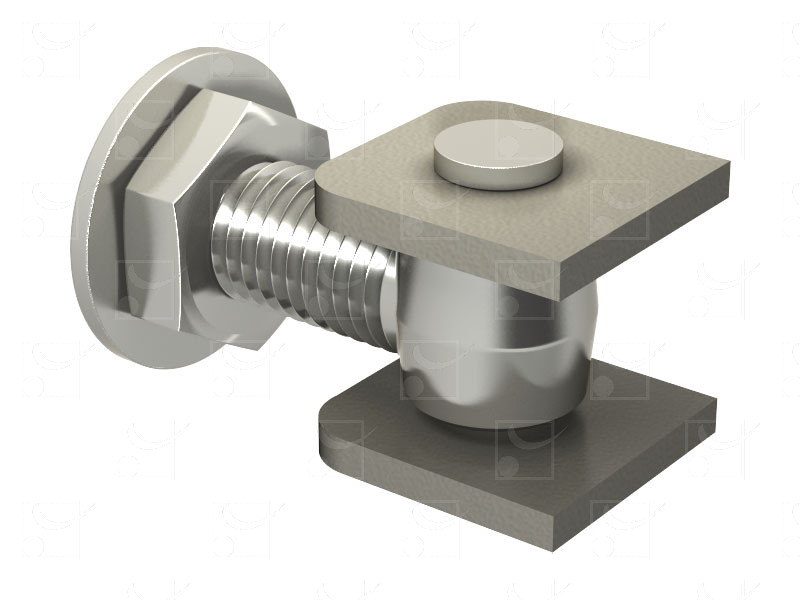

Adjustable hinge
Adjustable hinge
Adjustable pulley

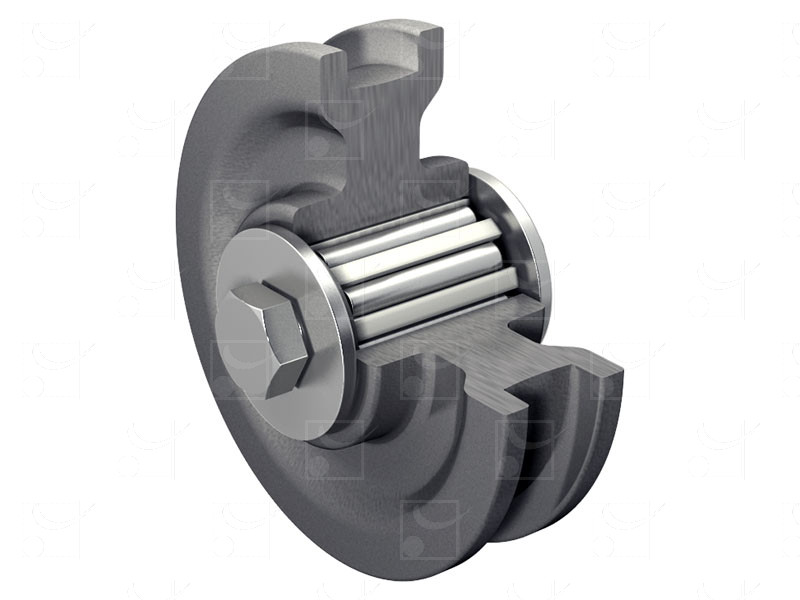

Adjustable pulley with cast iron wheel. Ø ext. 145 mm - groove Ø 120 mm for cables of Ø max. 6 mm.
View productAdjustable shoe-guide
Adjustable shoe-guide
Adjustable stop
Adjustment kit
Adjustment plate
Adjustment plate
Alu cap
Aluminium mounting bracket
Adjustable, double, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.
View productAluminium mounting bracket
Adjustable, single, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.
View productAluminium pelmet – 1.95 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for ceiling mounting.
Height = 64 mm - Length = 1.95 m. Includes 3 clips.
Aluminium pelmet – 1.95 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for wall mounting.
Height = 82 mm - Length = 1.95 m. Includes 3 clips.
Aluminium pelmet – 2 m
Aluminium pelmet – 3 m
Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 3 m. Pelmets can be painted on request in your choice of RAL colour.

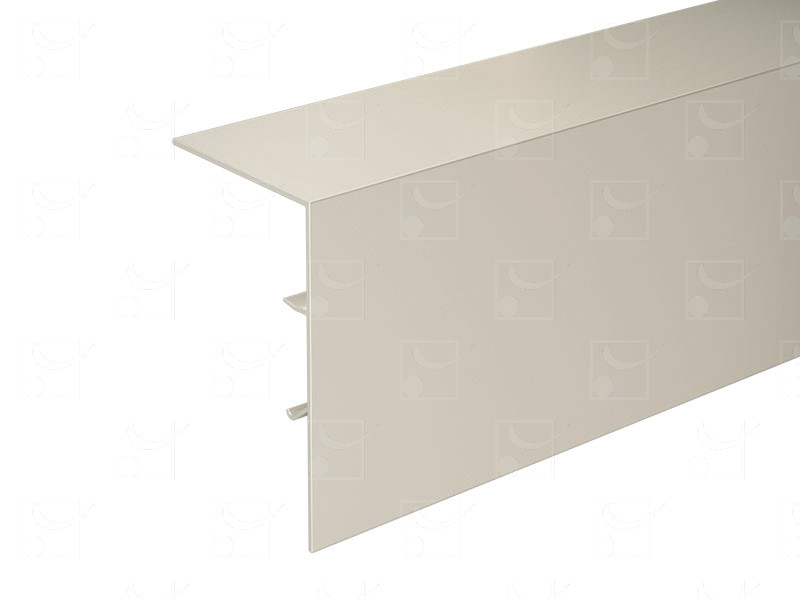

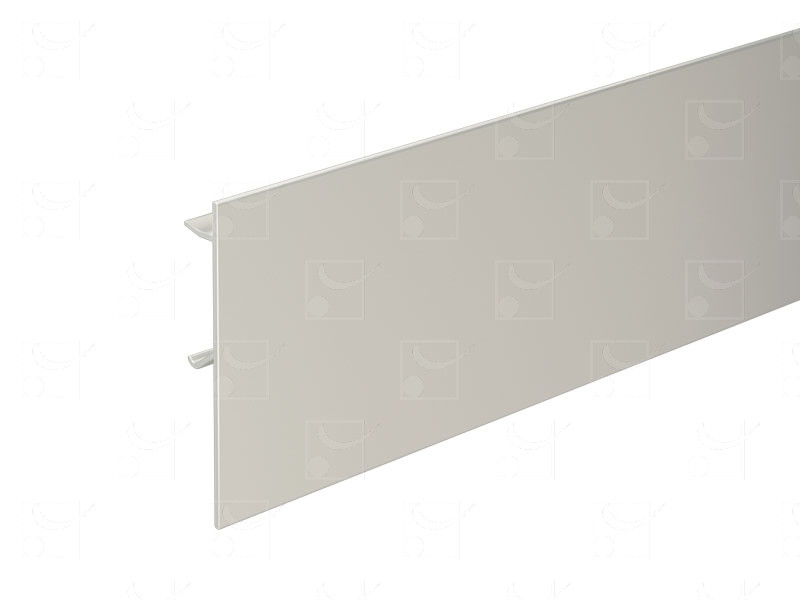

View productAluminium pelmet – 3 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for ceiling mounting.
Height = 64 mm - Length = 3 m. Includes 5 clips.
Aluminium pelmet – 3 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for wall mounting.
Height = 82 mm - Length = 3 m. Includes 5 clips.

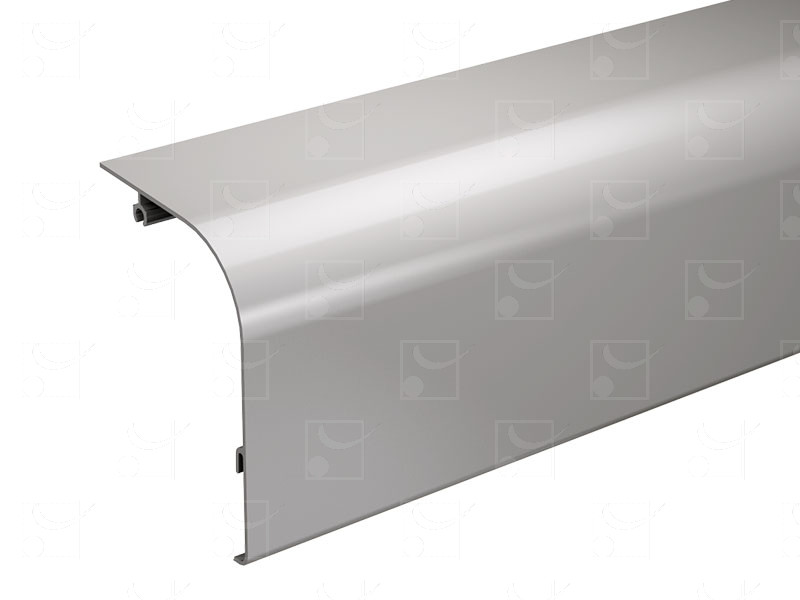

Aluminium pelmet – 6 m
Raw finish aluminium pelmet to be clipped onto the track.
To be used for ceiling mounting.
Height = 64 mm - Length = 6 m. Without clips.
Aluminium pelmet – 6 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for ceiling mounting.
Height = 64 mm - Length = 6 m. Without clips.
Aluminium pelmet – 6 m
Raw finish aluminium pelmet to be clipped onto the track.
To be used for wall mounting.
Height = 82 mm - Length = 6 m. Without clips.
Aluminium pelmet – 6 m
Anodised aluminium pelmet to be clipped onto the track.
To be used for wall mounting.
Height = 82 mm - Length = 6 m. Without clips.
Aluminium pelmet – 6 m
Aluminium pelmet – 6 m
Raw aluminium pelmet. Length = 6 m.
*other lenghts available on request
View productAluminium pelmet – 6 m
Raw aluminium pelmet to paint. L = 6 m. Available in RAL colours upon request.
*other lenghts available on request
View productAluminium pelmet – 6 m
Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 6 m. Pelmets can be painted on request in your choice of RAL colour.
View productAluminium track
Anodised Aluminium track, 39 x 36 mm cross section. L = 6m
*other lenghts available on request
View productAluminium track – 1.95 m
Anodised aluminium track, 36 x 27 mm cross-section, drilled every 0.44 m. Length = 1.95 m.
View productAluminium track – 2 m
Aluminium track – 3 m
Aluminium track – 3 m
Aluminium track – 3 m
Aluminium track – 3 m
Anodised aluminium track, 36 x 27 mm cross-section, drilled every 0.44 m. Length = 3 m.
View productAluminium track – 3 m
Anodised aluminium track, 39 x 28 mm cross-section, drilled every 0.30 m. Length = 3 m.
View productAluminium track – 4 m
Aluminium track – 4 m
Aluminium track – 4 m
Aluminium track – 5 m
Aluminium track – 5 m
Aluminium track – 5 m
Aluminium track – 6 m
Anodised aluminium track, 36 x 27 mm cross-section, drilled every 0.44 m. Length = 6 m.
View productAluminium track – 6 m
Anodised aluminium track, 39 x 28 mm cross-section, drilled every 0.30 m. Length = 6 m.
View productAluminium track – 6 m
Aluminium track – 6 m
Aluminium track – 6 m
Aluminium U-profile – 2 m
Aluminium U-profile – 2.5 m
Aluminium U-profile – 3 m
Aluminium U-profile – 5 m
Aluminium U-profile – 6 m
Angle
Angle bracket set
Set of 4 anodised aluminium angle brackets for mounting tracks on walls, 10500A.
View productAngle bracket set
Set of 4 anodised aluminium angle brackets for mounting tracks on walls, 10400A.
View productAngle plate
Angle plate
Angle plate
Angle plate
Angle plate
Angle plate
Angle plate
Angle plate
Angle plate
- Angled (sliding) bracket for wall mounting of tracks 11108 and 11312. Fastened every 0.44 m (Track 11108) and fastened every 0.30 m (Track 11312).
Angle plate
- Angle plate for wall-fixing of the track (MA40A), supplied with screws, nut and washer. Height = 17 mm - Length = 22 mm - Thickness = 18/10
Angle plate
- Angle plate for wall-fixing of twinned tracks. Height = 34 mm - Length = 62 mm - Thickness = 30/10
Angle plate
- Reinforced angle plate for wall fixing of track (MA80A), supplied with screws, nuts and washer. Height = 23 mm - Length = 30 mm - Thickness = 30/10
Angle plate
- Wall-fixing bracket for twinned tracks 2525 supplied with screws, nuts and washers.
Height: 34 mm - Length: 47 mm - Thickness: 30/10e
Angle plate
- Wall fixing bracket for twinned tracks 2525. Supplied with screws, nuts and washers.
Height: 34 mm - Length: 52 mm - Thickness: 30/10e
Angle plate
Angle plate
Angle plate
Angle plate
Angle steel
Angle steel
Angle steel
Angle support
- Dual (sliding) bracket for wall mounting of 2 tracks 11108 and 11312 (distance between centres of axes = 47 mm). Fastened every 0.44 mm.
Anneau
Anneau en acier zingué Ø10. Passage intérieur : Ø25. Charge maxi : 25 Kg. Rail associé : 9010.
View productAnneau
Anneau en acier zingué Ø12 - Passage intérieur : Ø29. Charge maxi : 60 Kg. (Rail MANTION associé : 9030).
View productAnodised aluminium pelmet
Anodised aluminium pelmet
Anodised aluminium pelmet
Anodised aluminium pelmet
Anodised aluminium profile – 3 m
Flush-mounted anodised aluminium lower profile, for threshold. Length = 3 m.
View productAnodised aluminium profile – 6 m
Flush-mounted anodised aluminium lower profile, for threshold. Length = 6 m.
View productAnodised aluminium track – 3 m
Anodised aluminium drilled track, 72 x 64 mm cross-section. Length = 3 m.
View productAnodised aluminium track – 3 m
Anodised aluminium drilled track, 51.5 x 47.5 mm cross-section. Length = 3 m.
View productAnodised aluminium track – 6 m
Anodised aluminium drilled track, 72 x 64 mm cross-section. Length = 6 m.
View productAnodised aluminium track – 6 m
Anodised aluminium drilled track, 51.5 x 47.5 mm cross-section. Length = 6 m.
View productAnodised Profile for installation of the fixed glass panel
- Anodised aluminium Profile for installation of the fixed glass panel. To be screwed on the track - Length = 6 m
Apron set
Apron set
- Adjustable apron set for panels from 40 to 50 mm thickness - Capacity : 75 kg. Top fixing, screwing type
Apron set
Bob hanger
Bolt
Bolt
Bolt
- Bolt with PORTE CADENAS, BOITIER EN FONTE, Cane and keeper in steel. Weight : 660 gr. - Ø 16 mm
Bolt
Bolt
Bolt
Reinforced bolt with screwing type. Length = 300 mm - Ø 14 mm - adjustable nut
View productBolt
- Reinforced bolt with screwing type (23 mm). Length = 500 mm - Ø 16 mm - adjustable nut
Bolt lock set
Bottom bolt
Bottom bolt kit
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
Bottom guide
- Bottom guide with a nylon olive (mounted on roller cages), without plate. For U-profile 25 x 17 mm
Bottom guide
- Bottom guide with a brass olive (mounted on roller cages), without plate. For U-profile 30 x 30 mm
Bottom guide
Bottom guide
- Bottom guide with a brass olive, with sealing type plate. For U-profile 30 x 30 mm
Bottom guide
- Bottom guide with a brass olive, on a reinforced plate. Sealing type - For U-profile 30 x 30 mm
Bottom guide
- Bottom guide with a nylon olive (monted on roller cages), on a reinforced plate, screwing type. For U-profile 50 x 60 mm
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Ceiling mounting bracket for removable tracks in a pocket door configuration. The bracket is clipped into the far end of the cassette and is screwed into the opening.
Provides easy access to components found in the track (to replace hangers, etc.).
Ideal for tracks 13108.
Bracket
Wall bracket for removable tracks in a pocket door configuration. The bracket is clipped into the far end of the cassette and is screwed into the opening.
Provides easy access to components found in the track (to replace hangers, etc.).
Ideal for tracks 13108.
Bracket
Angle bracket (sliding) for fastening tracks 13312 and 13108 to the wall. Fastened every 0.44 m.
View productBracket
Wall angle bracket for track 2525, screws, nuts and washers. Height : 23 mm. Length : 30 mm. Thickness : 30/10. Set of seven.
View productBracket
Wall angle bracket for track 2525, screws, nuts and washers. Height : 23 mm. Length : 30 mm. Thickness : 30/10. Set of five.
View productBracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Bracket
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
Brackets
A4 stainless steel bracket to be screwed on panel face (80 x 58mm).
Panel thickness : 28 to 36mm.
View productBrush
Dustproof brush with aluminium support L = 3 m - total Height 90 mm, brush 40 mm.
View productBrush seal
Brush seal – 10 m
Brush seal – 2.5 m
Buffer
Buffer
Buffer
Buffer damper system
Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position.
Suitable for doors weighing 81-120 kg. It is recommended that 2 dampers be used for doors with a width of 870 mm or more.
Butée Win-Slide 2
Butée Win-Slide 2 avec maintien en PA 6 chargé fibre verre, avec visserie en INOX A4.
Rail associé : 11208A.
Butée Win-Slide 2
Butée Win-Slide 2 avec maintien en PA 6 chargé fibre verre, avec visserie en INOX A2.
Rail associé : 11208.
Cable
Cam lock
Cane bolt
Cap
Cassette kit
Cassette kit for single timber pocket door - 1030 x 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productCassette kit
Cassette kit for double timber pocket door - 730 x 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productCassette kit
Cassette kit for double timber pocket door - 830 x 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productCast iron wheel
Cast iron wheel
Cast iron wheel
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
CAST IRON WHEELS
Catch stop
Ceiling bracket for removable tracks
Ceiling-mounted bracket for removable tracks in a pocket door configuration. The bracket is fastened at the far end of the cassette and near the opening. Provides easy access to components found in the track (to replace rollers, etc.).
View productCeiling-mounted plate
Ceiling-mounted plate
Ceiling-mounted plate
Ceiling-mounted plate
Clamp covering
- CLAMP COVERING* (only covers clamp) - The kit includes 4 clamp pelmets and 4 end pieces - Length of clamp pelmets = 169 mm or painted on request in your choice of RAL colour
Clamp covering – 12 mm
- CLAMP COVERING*(only covers clamp) Aluminium covering for 12 mm clamp consisting of 4 clamp pelmets and 4 end pieces - Length of clamp pelmets = 194 mm - * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Clamp covering – 12 mm
- LONG CLAMP COVERING*(covers entire width of door) Aluminium covering for 12 mm clamp consisting of 2 clamp pelmets and 2 end pieces. Length of clamp pelmets = 1.5 m (cut to length)
Clamp covering – 12 mm
- LONG CLAMP COVERING*(covers entire width of door) Aluminium covering for 12 mm clamp consisting of 2 clamp pelmets and 2 end pieces - Length of clamp pelmets = 3 m (cut to length) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Clamp covering – 15 mm
- CLAMP COVERING* (only covers clamp) Aluminium covering for 15 mm clamp consisting of 4 clamp pelmets and 4 end pieces - Length of clamp pelmets = 194 mm * Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Clamp covering – 8 mm
- CLAMP COVERING* (only covers clamp) - The kit includes 4 clamp pelmets and 4 end pieces - Length of clamp pelmets = 169 mm * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Clamp stop
Clip-in kit
Clip-in kit for a panel weighing under 50 kg. Enables panels to be held in the closed position.
View productClip-in kit
Clip-in kit for a panel weighing over 50 kg. Enables panels to be held in the closed position.
View productCloser pivot kits for doors
180° single pivot, can be integrated into a tubular profile starting at Ø40, for leaves of 1000 x 2000 max. Delivered with an upper pivot, for doors only. Closing force: 16 N/m. Opening to the right. Door capacity: 85 kg.
View productCloser pivot kits for doors
180° single pivot, can be integrated into a tubular profile starting at Ø40, for leaves of 1000 x 2000 max. Delivered with an upper pivot, for doors only. Closing force: 16 N/m. Opening to the left. Door capacity: 85 kg.
View productCloser pivot kits for doors
180° single pivot, can be integrated into a tubular profile starting at Ø50, for 1800 x 2400 max. leaf. Delivered with an upper pivot, for doors only. Closing force: 49 N/m. Opening to the right. Door capacity: 200 kg.
View productCloser pivot kits for doors
180° single pivot, can be integrated into a tubular profile starting at Ø50, for 1800 x 2400 max. leaf. Delivered with an upper pivot, for doors only. Closing force: 49 N/m. Opening to the left. Door capacity: 200 kg.
View productCloser pivot kits for side gates
Kit including: closer pivot 25312DT and a screw-in upper pivot. For tubular profiles starting at Ø40, for leaves of 1000 x 2000 max. Opening to the right. Gate capacity: 85 kg.
View productCloser pivot kits for side gates
Kit including: closer pivot 25312DT and a screw-in upper pivot. For tubular profiles starting at Ø40, for 1000 x 2000 max. leaf. Opening to the left. Gate capacity: 85 kg
View productCloser pivot kits for side gates
Kit including: closer pivot 25312DT and a weld-on upper pivot. For tubular profiles starting at Ø40, for leaves of 1000 x 2000 max. Opening to the right. Gate capacity: 85 kg.
View productCloser pivot kits for side gates
Kit including: closer pivot 25312DT and a weld-on upper pivot. For tubular profiles starting at Ø40, for 1000 x 2000 max. leaf. Opening to the left. Gate capacity: 85 kg.
View productComplete gear without track for doors up to 40 kg
Complete gear without track for 40 Kg doors comprising:
- 2 rollers MA40A and 2 plates 10036;
- 2 adjustable stops;
- 1 guide 1100;
- Spanner, screws and assembly instructions.
Complete gear without track for doors up to 80 kg
Complete gear without track for 80 Kg doors comprising:
- 2 rollers MA80A and 2 plates 10036;
- 2 adjustable stops;
- 1 guide 1103R;
- Spanner, screws and assembly instructions.
Concealed hinge for heavy duty use
Invisible" concealed hinge. The hinge is hidden inside the panel and does not protrude from its plane. Reinforced version (for intensive consumer use).
- 3D adjustment: depth (X): ± 1 mm / vertical (Z): ± 2 mm / horizontal (Y): ± 1mm
Connector plate
Counterweight
Counterweight
Cupped finger pull
Cupped finger pull
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve
Curve sector
Curve sector
Curve sector
Curve sector
Damper
- Damper system allowing for soft closing of doors. Thanks to a catch pin fixed on the panel, the damper automatically travels to the closed position along with the door. Packaged in PET tube.
Damper
- Closer system allowing smooth door closing. The damper automatically close the door up to its end course. Available for doors weighing up to 40kg
Damper
- Closer system allowing smooth door closing. The damper automatically close the door up to its end course. Available for doors weighing up to 80kg
Damper
- Damper system allowing a smooth closing of the door. The shock accompanies the door automatically to the closed position. door up to 40 KG
Damper closer
Damper closer system for gentle closing of doors (100 mm). Damper automatically follows door to its closed position. For doors between 20 and 60 Kg.
View productDamper closer
Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position. Suitable for doors weighing 10-20 kg. It is recommended that 2 dampers be used for doors with a width of 830 mm or more
Damper closer
Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position. Suitable for doors weighing 21-60 kg. It is recommended that 2 dampers be used for doors with a width of 830 mm or more
Damper closer
Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position. Suitable for doors weighing 61-80 kg. It is recommended that 2 dampers be used for doors with a width of 870 mm or more.
Damper closer system
Damper Closer with seamless performance of closing. Suitable for doors between 81-120 Kg with rollers ensuring a perfect guiding. Weigth of the door: 81-->120 Kg. Width of the door: 700 mm min for one M68 and 900 mm min for two M68.
View productDamper closer system
Damper closer system for gentle closing or opening of doors. For doors up to 120 Kg.
View productDamper system
Damper system enabling the panel to close softly.
Not compatible with hanger 0030.
View productDeflection sheave
Deflection pulley with cast iron wheel. Ø ext. 145 mm - groove Ø 120 mm for cables of Ø max. 6 mm.
View productDished flush pull
Dished flush pull, in steel, with «black» finish. Height: 200 mm - Width: 90 mm.
View productDished flush pull
Dished flush pull
Door aligner
Door aligner, to align the panels in the closed position. One finger to be fixed on each panel.
Packing: 2 pieces.
View productDoor jamb – L = 3 m
PRM (persons with reduced mobility) door jamb with threshold seal. Length = 3 m.
View productDoor jamb – L = 6 m
PRM (persons with reduced mobility) door jamb with threshold seal. Length = 6 m.
View productDressing kit
Drilling jib
Drilling jig for hinges
Drilling jig for hinges
Drilling jig for hinges
Drilling template
Drilling template for 1540 and 1575 hinges.
Supplied with 4 interchangeable plates to machine different depths.
View productDrive + wired two-button switch kit
Drive kit (230V power supply) with wired control, includes:
- 1 SYCOMM motor (on-board electronics); with position-holding brake
- 1 wired switch C0001050
Drive kit for 1 door 10 mm
- Drive kit for 1 door including: - 1 clamp with 1 belt support - 1 pulley and pulley cover
Drive kit for 1 door 12 mm
- Drive kit for 1 door including: - 1 clamp with 1 belt support - 1 pulley and pulley cover
Drive kit for 1 door 8 mm
- Drive kit for 1 door including: - 1 clamp with 1 belt support - 1 pulley and pulley cover
Drive kit for 2 doors 10 mm
- Drive kit for 2 doors including: - 2 clamps with 2 belt supports - 1 pulley and pulley cover
Drive kit for 2 doors 12 mm
- Drive kit for 2 doors including: - 2 clamps with 2 belt supports - 1 pulley and pulley cover
Drive kit for 2 doors 8 mm
- Drive kit for 2 doors including: - 2 clamps with 2 belt supports - 1 pulley and pulley cover
Driving Bracket
Dual adjustable bracket
- Dual adjustable mounting bracket 80 Kg with stainless screws and bolts. Vertical adjustment = 10 mm - Horizontal adjustment = 12 mm
Dual jointing bracket
Dustproof brush
- Adhesive dustproof brush, short bristles (5 mm) - in lengths of 12 m - to put on the handle (shock absorber)
Dustproof brush
- Adhesive dustproof brush, short bristles (15 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Dustproof brush
- Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Dustproof brush
- Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
Dustproof brush
Dustproof brush
- Dustproof brush for lower part with aluminium reinforcement in 2.50 m length. Height of the brush = 20 mm
Dustproof brush
- Dustproof brush for lower part with aluminium reinforcement - Length = 3 m
Dustproof seal
Dustproof seal
End bottom guide
End caps
End caps
End caps
End caps
Stainless steel end caps for U-Profile. Suitable for references GB6330 and GB6331.
View productEnd caps
End guide
End guide
End guide
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger
End hanger set
End hanger set
End hanger set including:
- 1 end hanger;
- 1 lower end-guide;
- 1 split hinge 1512GJSO.
End holder
End stop
End stop
End stop
End stop
End stop
End stop
End stop
End stop
End stop
End stop
End stop
End stop
- Galvanized steel end stop cylinder-shaped for double doors joining in the center.
End wheel
End wheel
End wheel
Ensemble – 10 mm – baie : 650 à 700 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 10 mm – baie : 750 à 800 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 10 mm – baie : 850 à 900 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 10 mm – baie : 950 à 1000 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 8 mm – baie : 650 à 700 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 8 mm – baie : 750 à 800 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 8 mm – baie : 850 à 900 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Ensemble – 8 mm – baie : 950 à 1000 mm
- Ensemble comprenant : 1 rail en alu - 1 bandeaux avec 2 embouts + 2 supports bandeau - 2 pinces en alu - 2 montures - 1 habillage de pince - 1 frein de crémaillère - 1 crémaillère - 1 boitier de commande - kit maintien de porte - 2 butées - 1 guide
Fastener
Finger pull
- «Square» cupped finger pull in ABS, mortising type Height : 70 mm - Width : 46 mm
Fitting kit flush-mounted in timber panels
Fitting kit – flush-mounted in timber panels, includes:
- 1 anodised aluminium profile to be flush-mounted in the top of the door, 1.5 m;
- 2 end caps;
- 2 door-to-carrier connecting screws;
- 1 PVC profile to be flush-mounted in the underside of the door, 1.5 m;
- 1 polyamide guide.
Fitting kit for 10 mm glass panels
Fitting kit for 10 mm glass panels, includes:
- 2 clamps;
- 2 door-to-carrier connecting screws;
- 2 anodised aluminium pelmets, 1.5 m;
- 2 end caps;
- 1 stainless steel lower guide.
Fitting kit for 8 mm glass panels
Fitting kit for 8 mm glass panels, includes:
- 2 clamps;
- 2 door-to-carrier connecting screws;
- 2 anodised aluminium pelmets, 1.5 m;
- 2 end caps;
- 1 stainless steel lower guide.
Fitting kit with hanger type A
Set for doors up to 120 Kg comprising:
- 2 rollers type "A" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fitting kit with hanger type B
Set for doors up to 120 Kg comprising:
- 2 rollers type "B" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fitting kit with hanger type C
Set for doors up to 120 Kg comprising:
- 2 rollers type "C" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fitting kit with hanger type D
Set for doors up to 120 Kg comprising:
- 2 rollers type "D" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fitting kit with hanger type E
Set for doors up to 120 Kg comprising:
- 2 rollers type "E" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fitting kit with hanger type F
Set for doors up to 120 Kg comprising:
- 2 rollers type "F" with "black" finish.
- 2 end stops with rubber buffer, with "black" finish.
- 2 anti disbonding systems, with "black" finish.
- 1 bottom guide in black plastic.
- Screws, spanner and mounting instructions
Fixed Point Assembly
Fixed suspension
Fixed end suspension for cables 70x20 maxi - (capacity/trolley 25 kg - track 3530) ou (capacity/trolley 50 kg - track 5040).
View productFixed suspension
- Fixed end suspension - (Load 50 kg - profile 6255) or (Load 50 kg - profile 8570)
Fixed suspension
Fixed end suspension for cable Ø 10 to 25 - (Capacity/trolley 15 kg - track 3530) ou (Capacity/trolley 20 kg - track 5040).
View productFixed suspension
- Fixed end suspension - (Load 20 kg - profile 6255) or (Load 20 kg - profile 8570)
Fixing accessories
Fixing accessories
Fixing accessories
Fixing accessories
Fixing bracket
Fixing bracket
Fixing bracket
Fixing hanger
Fixing hanger
Fixing kit
- Fixing kit for attic enables an easy horizontal fixing of the upper track. For a 17 to 59° roof pitch.
Fixing kit – maximum opening of 1200 mm
Kit for maximum opening of 1200 mm, «black» finish, comprising:
- 1 flat steel track, in length of 2400 mm with «black» finish.
- 4 track brackets for wall mounting (every 0.56 m.)
- 1 damper closer system for gentle closing or opening of doors.
Fixing kit – maximum opening of 950 mm
Kit for maximum opening of 950 mm, «black» finish, comprising:
- 1 flat steel track, in length of 1950 mm. 50 x 6 mm
- 4 track brackets for wall mounting (every 0.56 m.)
- 1 damper closer system for gentle closing or opening of doors
Fixing plate
Fixing plate
Fixing plate
Flush pull
Gate stop
Tilting gate stop, adjustable cataphoresis protection, sealing type Spacing : 40-70 mm Height : 50 mm Width : 40 mm - Length : 150 mm.
View productGate stop
Tilting gate stop, adjustable in dichromated steel, screwing type Spacing : 40-70 mm Height : 120 mm Width : 40 mm - Length : 145 mm.
View productGear
Gear for a door of max 150 kg and max 3 m opening, includes:
- 2 edge-mounted hangers 0255A with 2 steel rollers mounted in a roller frame;
- 2 plates for edge mounting 0056;
- 10 box brackets 5041;
- 1 joining bracket 5041MC;
- 11 screw-in angle plates 5043;
- 2 end caps 5050;
- 1 bottom guide 1092V25;
- 2 stops 2091;
- 1 handle 1298.
Assembled WITHOUT a U-profile: double olive lower guide.
Order separately: 2 tracks 5040/300.
View productGear
Gear for manual 200 kg gate, including 2 steel wheels with internal mounting brackets 22081R16, 2 track connector pins 20016M, 2 adjustable guides 1062, 1 screw-in stop 2099V, 1 flush-mounted lock gear 957, 1 zamak double handle 1295/60.
View productGear
Gear for manually-operated gates weighing 800 kg, includes:
- 2 internal mounting brackets 22100R21 ;
- 2 track joining brackets 20020M ;
- 1 adjustable guide 1065 ;
- 1 screw-in stop 2099V ;
- 1 flush-mounted lock gear 0957 (diameter = 7) ;
- 1 Zamak double handle 1295/60 (diameter = 7).
Gear
Gear for 200 kg motorised gate, including 2 steel wheels with internal mounting brackets 22081R16, 2 track connector pins 20016M, 2 adjustable guides 1062, 1 screw-in stop 2099V *drive not included.
View productGear
Gear for motorised gates weighing 800 kg, includes :
- 2 steel internal mounting brackets 22100R21
- 2 track joining brackets 20020M
- 1 adjustable guide 1065
- 1 screw-in stop 2099V
Motor not included.
View productGear
Gear to guide 2 panels. Suitable for TANGO40-120 and TANGO40-150 to add 2 panels on a 4 panels installation (2+2).
View productGear
Gear including :
- 1 adjustable shoe;
- 1 slider;
- 2 retractable upper pivots, wall fixing;
- 1 lower pivot, wall fixing;
- 1 footstep bearing;
- 3 hinges 1504 C3;
- 1 door aligner 5330;
- 1 fitting tool and 1 spanner 8/13;
- Screws and mounting instructions.
Gear
Gear for 2 panels without floor guidance, includes:
- 1 adjustable shoe;
- 1 slider;
- 2 retractable upper pivots, flush-mounted;
- 1 lower pivot, flush-mounted;
- 1 pivot bracket;
- 3 hinges 1504 C3;
- 1 door aligner 5330;
- 1 fitting tool and 1 size-13 spanner;
- screws and installation instructions.
Gear
Gear including :
- 1 adjustable shoe;
- 1 slider;
- 3 retractable upper pivots, wall fixing;
- 1 lower pivot, wall fixing;
- 1 footstep bearing;
- 3 hinges 1504 C3;
- 1 guiding wheel Ø 14.5 mm;
- 1 fitting tool and 1 spanner 8/13;
- Screws and mounting instructions.
Gear
Gear for 2 panels with floor guidance, includes:
- 1 adjustable shoe;
- 1 slider;
- 3 retractable upper pivots, flush-mounted;
- 1 lower pivot, flush-mounted;
- 1 pivot bracket;
- 3 hinges 1504 C3;
- 1 guiding roller, Ø 14.5 mm;
- 1 fitting tool and 1 size-13 spanner ;
- screws and installation instructions.
Gear
Gear for 40 Kg doors comprising:
- 2 rollers SAF40A (with ball bearings and polyamide wheels)
- 2 plates 11036
- 1 soft stopper 11213 S40
- 1 adjustable stop 11213
- 1 guide 1103
- 1 spanner, screws and assembly instructions
Gear
Gear for 80 Kg doors comprising :
- 2 rollers SAF80A (with ball bearings and polyamide wheels)
- 2 plates 10036
- 1 soft stopper 11213S80
- 1 adjustable stop 11213
- 1 guide 1103R
- 1 spanner, screws and assembly instructions
Gear
Gear for 120 Kg doors comprising:
- 2 rollers SAF120A (with ball bearings)
- 2 plates 10036
- 2 adjustable stops 11213
- 1 guide 1103R
- 1 spanner, screws and assembly instructions
Gear
Gear including:
- 2 hangers 0222 mounted on a RILSAN ring with plates 0026 et 0021
- 2 end stops 1097
- 1 guide 1103
- 1 spanner 13, Screws and mounting instructions
Gear
Gear including:
- 2 rollers 0224 with monobloc plates and crash-stops
- 1 guide 1103R
- Screws, spanner and mounting instructions
Gear
Gear for 1 edge-mounted panel, includes:
- 2 edge-mounted hangers 0030;
- 2 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
Gear
Gear for third face-mounted panel, includes:
- 2 face-mounted hangers 0040-C;
- 1 positioner for the central panel;
- 2 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
Used in addition to the TUB40 sets for a third panel.
View productGear
Gear for 2 face-mounted panels, includes:
- 2 face-mounted hangers 0040-A;
- 2 face-mounted hangers 0040-B, mounted on ball-bearings;
- 4 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
Gear
Special gear for 4-metre-long steel cantilever sliding gates weighing 400 kg.
Gear includes:
- 2 standard cantilever hangers 9952PAF;
- 2 end brackets 1051G;
- 2 lead-in guides 1050E;
- 2 adjustable guides 1062.
Gear – Doors up to 300 Kg
Gear for doors up to 300 kg including:
- 2 hangers 0265 Side fixing equipped with 2 steel wheels mounted on roller cages
- 2 plates 0066 Top fixing
- 12 brackets 6256
- 1 jointing bracket 6256MC
- 13 angle plates 6258
- 2 ornemental caps 6265
- 2 bottom guides 1101
- 2 stops 2094
- 1 handle 1297
Gear – Doors up to 80 Kg
Gear for 80 Kg doors comprising :
- 2 rollers SAF80A (with ball bearings and polyamide wheels)
- 2 plates 11036
- 1 soft stopper 11213S80
- 1 adjustable stop 11213
- 1 guide 1103R
- 1 spanner, screws and assembly instructions
Gear for 1 door 10 mm
- SAFGLASS POWER gear for 1 door including: - 2 rollers with precision bearings (long screw) - 2 anodised aluminium clamps - 2 end stops - 1 grey nylon lower guide
Gear for 1 door 12 mm
- SAFGLASS POWER gear for 1 door including: - 2 rollers with precision bearings (long screw) - 2 anodised aluminium clamps - 2 end stops - 1 grey nylon lower guide
Gear for 1 door 8 mm
- SAFGLASS POWER gear for 1 door including: - 2 rollers with precision bearings (long screw) - 2 anodised aluminium clamps - 2 end stops - 1 grey nylon lower guide
Gear for 1 door weighing 10-80 kg
Gear for 1 door weighing 10-80 kg:
- 2 hangers 13218 (mounted on ball bearings);
- 2 plates 13036;
- 2 adjustable end stops 11213;
- 1 floor guide 1103R;
- 1 Buly (bubble level).
Gear for 1 door weighing 81-120 kg
Gear for 1 door weighing 81-120 kg:
- 2 hangers 13232 (mounted on ball bearings);
- 2 plates 13036;
- 2 adjustable end stops 11213;
- 1 floor guide 1103R;
- 1 Buly (bubble level).
Gear for 1 leaf – for opening of 0.73 m to 0.83 m
Gear for 1 leaf for opening of 0.73 m to 0.83 m including:
- 1 roller kit with clamps and damper
- 2 end stops
- 2 fastening clips for pelmet
- 1 lower guide
- Installation instructions and tools
Gear for 1 leaf – for opening of 0.83 m to 1.33 m
Gear for 1 leaf for opening of 0.83 m to 1.33 m including:
- 1 roller kit with clamps and damper
- 2 end stops
- 2 fastening clips for pelmet
- 1 lower guide
- Installation instructions and tools
Gear for 1 panel
Gear for one panel, includes :
- 2 rollers SAF81A (stainless steel pins mounted on ball bearings),
- 2 plates 10036,
- 2 stops 11213,
- 1 lower guide 1124,
- Tools and installation instructions
Gear for 1 panel
Gear includes :
- 2 rollers 0160, mounted on precision ball bearings,
- 2 upper guides 1155,
- 1 stop-holder (immobilises one panel),
- Screws and installation instructions.
Gear for 2 synchronised leaves – for opening of 1.33 m to 1.53 m
Gear for 2 synchronised leaves for opening of 1.33 m to 1.53 m including:
- 2 roller kits with clamps and dampers
- 1 cable-operated synchronisation kit
- 4 end stops
- 3 fastening clips for pelmet
- 2 lower guides and 1 translucent adhesive seal for door edge
- Installation instructions and tools
Gear for 2 synchronised leaves – for opening of 1.53 m to 1.73 m
Gear for 2 synchronised leaves - for opening of 1.53 m to 1.73 m including:
- 2 roller kits with clamps and dampers
- 1 cable-operated synchronisation kit
- 4 end stops
- 3 fastening clips for pelmet
- 2 lower guides and 1 translucent adhesive seal for door edge
- Installation instructions and tools
Gear for 2 synchronised leaves – for opening of 1.73 m to 2.53 m
Gear for 2 synchronised leaves - for opening of 1.73 m to 2.53 m including:
- 2 roller kits with clamps and dampers
- 1 cable-operated synchronisation kit
- 4 end stops
- 3 fastening clips for pelmet
- 2 lower guides and 1 translucent adhesive seal for door edge
- Installation instructions and tools
Gear for doors up to 40 Kg
Gear for 40 Kg doors comprising:
- 2 rollers SAF40A (with ball bearings and polyamide wheels)
- 2 plates 10036
- 1 soft stopper 11213 S40
- 1 adjustable stop 11213
- 1 guide 1103
- 1 spanner, screws and assembly instructions
Gear for doors weighing up to 80 kg
Gear for doors weighing up to 80 kg:
- 2 SAF hangers
- 2 hanger/door fixing plates
- 2 adjustable door stops, 11213 (closer available as an option)
- 1 guide 1103R
- 2 Allen keys, screws and dowels + installation instructions
Gear for double synchronised 10mm door
Gear for two 10 mm doors including :
- 4 rollers with precision bearings and 4 aluminium clamps;
- 2 end stops 11213N;
- 2 damper closer systems M66;
- 1 cable 1.5 mm Ø 10 m long;
- 1 translucent adhesive seal to be fitted on door edge to dampen closure. L = 3 m;
- Fasteners on short clamps;
- 2 lower guides in stainless steel;
- 1 spirit level for the track adjustment;
- 4 cleaning wipes for the degreasing of the glass before clamp fitting;
- Tools and installation instructions.
Gear for double synchronised 12mm door
Gear for two 12 mm doors including :
- 4 rollers with precision bearings and 4 aluminium clamps;
- 2 end stops 11213N;
- 2 damper closer systems M66;
- 1 cable 1.5 mm Ø 10 m long;
- 1 translucent adhesive seal to be fitted on door edge to dampen closure. L = 3 m;
- Fasteners on short clamps;
- 2 lower guides in stainless steel;
- 1 spirit level for the track adjustment;
- 4 cleaning wipes for the degreasing of the glass before clamp fitting;
- Tools and installation instructions.
Gear for double synchronised 8mm door
Gear for two 8 mm doors including :
- 4 rollers with precision bearings and 4 aluminium clamps;
- 2 end stops 11213N;
- 2 damper closer systems M66;
- 1 cable 1.5 mm Ø 10 m long;
- 1 translucent adhesive seal to be fitted on door edge to dampen closure. L = 3 m;
- Fasteners on short clamps;
- 2 lower guides in stainless steel;
- 1 spirit level for the track adjustment;
- 4 cleaning wipes for the degreasing of the glass before clamp fitting;
- Tools and installation instructions.
Gear for STARAL GLASS 150
Gear for one 12 mm thick door, includes :
- 2 stainless steel rollers with precision bearings + installation template
- 2 anodised aluminium clamps
- 2 track stops
- 1 brushed stainless steel lower guide
- 1 bubble level for installing the track2 wipes to clean the glass of any grease before fixing the clamps
- Allen keys and installation instructions
Gear for three doors weighing 120 kg each
Gear for three doors weighing max. 120 kg each and an opening of max. 4.5 m, with screw-in, edge-mounted stainless steel plates.
View productGear for three doors weighing 120 kg each
Gear for three doors weighing max. 120 kg each and an opening of max. 4.5 m, with flush-mounted galvanised steel plates.
View productGear for three doors weighing 80 kg each
Gear for three doors weighing max. 80 kg each and an opening of max. 4.5 m, with screw-in, edge-mounted stainless steel plates.
View productGear for three doors weighing 80 kg each
Gear for three doors weighing max. 80 kg each and an opening of max. 4.5 m, with flush-mounted galvanised steel plates.
View productGear for two doors weighing 120 kg each
Gear for two doors weighing max. 120 kg each and an opening of max. 3 m, with screw-in, edge-mounted stainless steel plates.
View productGear for two doors weighing 120 kg each
Gear for two doors weighing max. 120 kg each and an opening of max. 3 m, with flush-mounted galvanised steel plates.
View productGear for two doors weighing 80 kg each
Gear for two doors weighing max. 80 kg each and an opening of max. 3 m, with screw-in, edge-mounted stainless steel plates.
View productGear for two doors weighing 80 kg each
Gear for two doors weighing max. 80 kg each and an opening of max. 3 m, with flush-mounted galvanised steel plates.
View productGear MINITU
- Gear including : 2 sliders Minitub 111, 1 guide 1123, 1 finger pull 1293, Screws and mounting instructions
Gear PICO 13
- Gear including : 2 rollers 0113 mortising type, 2 guides 1113 mortising type, Screws and mounting instructions
Gear PICO 25
- Gear including : 2 rollers 0125 mortising type, 2 guides 1125 mortising type, Screws and mounting instructions
Gear PICO 26
- Gear including : 2 rollers 0126, screwing type, mounted on ball bearings, 2 guiding plates 1155, screwing type, Screws and mounting instructions
Gear PICO 55
Gear including : 2 rollers 0155 mounted on accurate ball bearings, 2 guides 1155, Screws and mounting instructions.
View productGear PICO 59
Gear for equiping 1 panel:
- 2 rollers equipped with nylon rollers mounted on precision ball bearings
- 2 guides equipped with nylon rollers mounted on precision ball bearings
- Fixing screw and installation instructions
Gear SAFGLASS PINCE 120
- Gear for one 12 mm door including: - 2 rollers with precision bearings + installation template (STAINLESS screws, bolts and bearings) - 2 anodised aluminium clamps - 2 claw stops - 1 stainless steel lower guide - Installation instructions
Gear SAFGLASS PINCE 120
- Gear for one 15 mm door including: - 2 rollers with precision bearings + installation template (STAINLESS screws, bolts and bearings) - 2 anodised aluminium clamps - 2 claw stops - 1 grey nylon lower guide - Installation instructions
Gear SAFGLASS PINCE 80 – 10 mm
- Gear for one 10 mm door including: - 2 rollers with precision bearings + installation template - 2 anodised aluminium clamps - 2 hydraulic door closer end stops - 1 stainless steel lower guide - Installation instructions
Gear SAFGLASS PINCE 80 – 12 mm
- Gear for one 12 mm door including: - 2 rollers with precision bearings + installation template - 2 anodised aluminium clamps - 2 hydraulic door closer end stops - 1 stainless steel lower guide - Installation instructions
Gear SAFGLASS PINCE 80 – 8 mm
- Gear for one 8 mm door including: - 2 rollers with precision bearings + installation template - 2 anodised aluminium clamps - 2 hydraulic door closer end stops - 1 stainless steel lower guide - Installation instructions
Guide
Stainless steel (304L) plate-mounted lower guide, to be screwed in, for track (GC6100) (OPENTEC FW75).
View productGuide
Universal adjustable lower guide (cut-to-length) in transparent polycarbonate for equipping two doors.
2 installation options:
- without grooves (1 guide on each side of the door);
- with 5 x 15 mm grooves.
Guide
Guide
Screw-in guide, adjustable (35 to 60 mm) with two black nylon olives. Diameter = 25 mm. To be fixed on the jambs of the opening.
View productGuide
Screw-in guide, adjustable (18 to 42 mm) with two black nylon olives. Diameter = 14 mm. To be fixed on the jambs of the opening.
View productGuide
Guide
Guide
Guide
Guide
Guide with convex nylon olive.
A = 71 - B = 49 - C = 50 - D = 10
Guide for sliding gates.
Guide
Lower guide reinforced with a 64-mm-diameter steel roller (mounted on ball bearings), on a screw-in plate (position adjustable thanks to slotted holes) for UPE 80.
View productGuide
Zinc-plated single roller guide, for gates on rails on the ground. Diameter: 50 MM. To be used with the U 1115 profile.
View productGuide
Guide
Guide
Guide
Guide
- Guide with 1 brass olive on stainless steel plate to be screwed in for 30x30 U-profile
Guide
Guide
Guide
Guide
Guide
Guide
- Adjustable upper guide. Sealing type. For bottom sliding gate. Equipped with the 1050 guide.
Guide
- Adjustable guide with 2 nylon olives on a galvanised steel angle plate for U 25x17
Guide
Guide
Guide
- Adjustable guide with 2 nylon olives on a stainless steel plate for U 25x18
Guide
- Guide with 1 nylon olive on stainless steel plate to be screwed in for 25x17 U-profile
Guide
- White plastic runner on tiltable stainless steel plate for 25x17 and 30x30 U-profiles and 4-mm flat iron
Guide
Dual white plastic runner on tiltable stainless steel plate for 25x17 and 30x30 U-profiles and 4-mm flat iron
View productGuide
Guide without plate mounted on needle bearing with a nylon olive. Supplying with the 1052 and 1053 guides. Ø 50 mm - Height 25 mm.
View productGuide
Guide
Guide
Guide
Guide
Guide
Guide
- Upper guide with 2 adjustable olives (Ø 40) for a 40 to 70 mm tube. Length : 105 mm.
Guide
- Upper guide with 4 adjustable olives (Ø 40) for a 40 to 70 mm tube. Length : 245 mm.
Guide
- Upper guide with 4 adjustable olives (Ø 40) for 40 to 60 mm tube. Length : 220 mm.
Guide
Guide
Guide
Guide
Guide
Guide
Guide
Guide with safety brake, right-side version (R). Corresponding runner: 4272.
View productGuide
Guide
Guiding profile
Anodised aluminium guiding profile, 41 x 12 mm (4 mm wide), available in 3 m length (single track)
View productGuiding profile
Anodised aluminium guiding profile, 41 x 12 mm (4 mm wide), available in 2.5 m length (single track)
View productGuiding profile
Anodised aluminium guiding profile, 41 x 12 mm (4 mm wide), available in 4 m length (single track)
View productGuiding profile
Anodised aluminium guiding profile, 41 x 12 mm (4 mm wide), available in 5 m length (single track)
View productGuiding profile
Anodised aluminium guiding profile, 41 x 12 mm (4 mm wide), available in 6 m length (single track)
View productGuiding profile
Anodised aluminium guiding profile, 63 x 12 mm (4 mm wide), available in 2.5 m length (dual track)
View productGuiding profile
Anodised aluminium guiding profile, 63 x 12 mm (4 mm wide), available in 3 m length (dual track)
View productGuiding profile
Anodised aluminium guiding profile, 63 x 12 mm (4 mm wide), available in 4 m length (dual track)
View productGuiding profile
Anodised aluminium guiding profile, 63 x 12 mm (4 mm wide), available in 5 m length (dual track)
View productGuiding profile
Anodised aluminium guiding profile, 63 x 12 mm (4 mm wide), available in 6 m length (dual track)
View productHalf shoe guide
Half shoe guide
Half shoe guide
Handle
Handle
Handle
Zamak double handle for 25-40 mm tubes, with adjusting screw. Square inner rod - 8 mm.
View productHandle
Zamak double handle for 30-70 mm tubes, with adjusting screw. Square inner rod - 8 mm.
View productHandle
Handle
Handle
Handle
Handle
Handle
Set of 2 anodized aluminium“drop” handles. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel)
View productHandle
Set of 2 anodized aluminium “drop” handles with lacquered white (RAL 9016) finishing. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel).
View productHandle
Set of 2 anodized aluminium“coma” handles. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel).
View productHandle
Set of 2 anodized aluminium“coma” handles with lacquered white (RAL 9016) finishing. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel)
View productHandle 18mm
Handle 18mm
- Lacquered white handle 18 mm (RAL 9016) - 2.8 m long - packaged in PET tube
Handle 18mm
Handle 18mm
- Anodised aluminium 19 mm handle lacquered white handle (RAL 9016) - 2.8 m long
Handle 19mm
Handle 19mm
- Anodised aluminium 19 mm handle lacquered white handle (RAL 9016) - 2.8 m long - packaged in PET tube
Handle 19mm
Handle 19mm
- Anodised aluminium 19 mm handle lacquered white handle (RAL 9016) - 2.8 m long - packaged in PET tube
Handle 19mm
Handle 19mm
Handle 19mm
Handle 19mm
- Anodised aluminium 19 mm handle lacquered white handle (RAL 9016) - 2.8 m long - packaged in PET tube
Handle kit
Kit comprising 2 handles with brushed stainless steel fastening element. Height 505 mm, Ø 25 mm.
View productHandle kit
Kit comprising 2 handles with brushed stainless steel fastening element. Height 810 mm, Ø 25 mm.
View productHandle kit
Kit comprising 2 handles with brushed stainless steel fastening element. Height 657 mm, Ø 25 mm.
View productHandles
Handles
Hanger
Hanger
Roller with stainless steel framing and nylon wheels mounted on ball bearing top fixing Ø M10. To be used with plates 0036 or adjustable apron 0031. Capacity/door : 200 Kg.
2 per pack.
View productHanger
Roller with bracket to be screwed, fitted with 4 nylon wheels mounted on ball bearing top fixing. Capacity/door : 200 Kg.
2 per pack.
View productHanger
Roller with stainless steel framing and nylon wheels mounted on ball bearing top fixing Ø M12.
To be used with plates 0056 / 0055 or adjustable apron 0051. Capacity/door: 400 Kg.
2 per pack.
View productHanger
Roller with bracket to be screwed, fitted with 4 nylon wheels mounted on ball bearing top fixing. Capacity/door : 400 Kg.
2 per pack.
View productHanger
- Hanger equipped with 4 rollers, pin mounted on ball bearings, M8 stainless steel screw - 80 Kg max./panel
Hanger
- Hanger equipped with 4 rollers, pin mounted on ball bearings, M8 stainless steel screw - 120 Kg max./panel
Hanger
Hanger
- Hanger mounted on ball bearings with Nylon binding, with a STAINLESS STEEL axis
Hanger
Hanger
Hanger
Swivelling hanger with adjustable height, Delrin wheels, Ø M10 screw.
Maximum load: 20 kg per panel.
Combined track: 3530.
View productHanger
Hanger
Hanger
Hanger with polyamide wheels mounted on high- precision ball bearings. For track : 10500 PAF.
2 per pack.
View productHanger
Hanger with polyamide wheels mounted on high- precision ball bearings. For track : 10500 PAF.
2 per pack.
View productHanger
Hanger with polyamide wheels mounted on high- precision ball bearings. For track : 10600 PAF.
2 per pack.
View productHanger
Hanger with polyamide wheels mounted on high- precision ball bearings. For track : 10600 PAF.
2 per pack.
View productHanger
Hanger with steel wheels mounted on high-precision ball bearings. For track : 9050.
2 per pack.
View productHanger
Hanger with steel wheels mounted on high-precision ball bearings. For track : 9060.
2 per pack.
View productHanger
- Hanger with steel wheels mounted on high-precision ball bearings. For track : 9070
Hanger
Hanger with steel wheels mounted on high-precision ball bearings. For track : 9050.
2 per pack.
View productHanger
Hanger with steel wheels mounted on high-precision ball bearings. For track : 9060.
2 per pack.
View productHanger
- Hanger with steel wheels mounted on high-precision ball bearings. For track : 9070
Hanger
Hanger equipped with reinforced ball bearings. For track : 9060.
2 per pack.
View productHanger
Hanger equipped with reinforced ball bearings. For track : 9060.
2 per pack.
View productHanger
Hanger equipped with reinforced ball bearings. For track : 9050.
2 per pack.
View productHanger
Hanger equipped with reinforced ball bearings. For track : 9060.
2 per pack.
View productHanger
Hanger
Hanger with stainless steel reinforcement, equipped with 4 nylon-coated rollers mounted on ball bearings with a M8 pin diameter (plate 0036XM8).
View productHanger
Swivelling hanger with adjustable height, steel wheels, Ø M16 screw.
2 per pack.
View productHanger
Swivelling hanger with adjustable height, steel wheels, Ø M14 screw.
2 per pack.
View productHanger
Hanger
Hanger
Hanger
Hanger
STAINLESS STEEL hanger with Delrin wheels on smooth axle, fixing screw Ø M 10.
2 per pack.
View productHanger
STAINLESS STEEL hanger with Delrin wheels on smooth axle, fixing screw Ø M 12) For doors up to 100 kg.
2 per pack.
View productHanger
- STAINLESS STEEL hanger (with stainless steel wheels mounted on ball bearings, fixing bolt Ø M 12) - For doors up to 200 kg.
Hanger
- STAINLESS STEEL hanger (with stainless steel wheels mounted on ball bearings, fixing bolt Ø M 14)
Hanger
Hanger
- STAINLESS STEEL hanger with Delrin wheels on smooth axle, fixing screw Ø M 10
Hanger
- STAINLESS STEEL hanger with Delrin wheels on smooth axle, fixing screw Ø M 12) For doors up to 100 kg.
Hanger
- STAINLESS STEEL hanger (with stainless steel wheels mounted on ball bearings, fixing bolt Ø M 12) - For doors up to 200 kg.
Hanger
- STAINLESS STEEL hanger (with stainless steel wheels mounted on ball bearings, fixing bolt Ø M 14)
Hanger
Hanger, top fixing with 2 steel wheels mounted on roller cages. Capacity per door: 80kg.
2 per pack.
View productHanger
Hanger, top fixing with 2 Delrin wheels mounted on roller cages. Capacity per door: 80kg.
2 per pack.
View productHanger
Hanger with swan-neck, with 4 steel wheels mounted on ball bearings. Capacity per door: 80kg.
2 per pack.
View productHanger
Hanger top fixing, with 4 steel wheels mounted on ball bearings. Capacity per door: 80kg.
2 per pack.
View productHanger
Hanger
Hanger
Hanger with stainless steel reinforcement, equipped with 4 nylon-coated rollers mounted on ball bearings. Pin Ø = M10
View productHanger
Hanger equipped with 4 rollers, pins mounted on ball bearings, A4 stainless steel M8 screws (59mm). For panels operated manually, without synchornisation - max weight 80kg/panel.
View productHanger
Hanger
Hanger side-fixing, with 2 steel wheels mounted on roller cages. Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger side-fixing with 2 Delrin wheels mounted on roller cages. Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger top-fixing, with 2 steel wheels mounted on roller cages. Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger with long fixing bolt (118 mm). Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger top fixing with fixing bolt and 2 Delrin wheels mounted on roller cages Capacity per door: 150kg.
2 per pack.
View productHanger
Monture with long fixing bolt (118 mm). Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger with swan-neck, with 4 steel wheels mounted on ball bearings. Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger, top fixing, with 4 steel wheels mounted on ball bearings. Capacity per door: 150kg.
2 per pack.
View productHanger
Hanger
- Hanger, top fixing, with wheels mounted on roller cages. Removable plate, which enables 2 different positions and an adaptation to 2 different panel thicknesses.
Hanger
Hanger top fixing, with 2 steel wheels mounted on roller cages. Fixing bolt : 50 mm.
2 per pack.
View productHanger
Hanger
Hanger top fixing, nylon wheels with glass fiber mounted on roller cages.
2 per pack.
View productHanger
Hanger with swanneck, 4 wheels with ball bearings, nylon tyre and glass fiber.
View productHanger
Hanger, top fixing, 4 wheels with ball bearings, nylon tyre and glass fiber.
2 per pack.
View productHanger
Hanger
Hanger
Hanger
Hanger
Hanger, side fixing, with wheels mounted on roller cages. Removable flange, which enables 2 different positions and an adaptation to 2 different panel thicknesses. Capacity per door: 600kg.
View productHanger
Hanger with a bigger bore of the wheels and high precision roller cages. Capacity per door: 1200kg.
View productHanger
Hanger top fixing, with 2 steel wheels mounted on roller cages. Vis d’accrochage Ø M 16. Capacity per door: 600 kg.
2 per pack.
View productHanger
Monture with long fixing bolt (123 mm). Capacity per door: 600 kg.
2 per pack.
View productHanger
Hanger, top fixing with 2 steel wheels mounted on high precicion roller cages . Fixing bolt Ø M 20. Capacity per door: 800 kg.
2 per pack.
View productHanger
Hanger with long fixing bolt (133 mm). Capacity per door: 1200 kg.
2 per pack.
View productHanger
Hanger, top fixing, 4 wheels with ball bearings, nylon tyre and glass fiber. Fixing bolt Ø M 16. Capacity per door: 600kg.
2 per pack.
View productHanger
Hanger
Hanger, top fixing with carbonized steel wheels mounted on ball bearings. Fixing bolt Ø M 16. Capacity per door: 800 kg.
2 per pack.
View productHanger
Hanger with long fixing bolt (123 mm). Capacity per door: 800 kg.
2 per pack.
View productHanger
Hanger top fixing with 4 wheels equipped with ball bearings. Recommanded for FIRE DOORS and other HIGH QUALITY doors. Fixing bolt Ø M 20. Capacity per door: 1200 kg.
2 per pack.
View productHanger
Hanger
Hanger, top fixing, with steel wheels mounted on roller cages. Fixing bolt Ø M 20. Capacity per door: 1200 kg.
View productHanger
Hanger
Hanger top fixing with 4 wheels equipped with ball bearings. Recommanded for FIRE DOORS and other HIGH QUALITY doors. Capacity per door: 2000 kg. Fixing bolt Ø M 20.
View productHanger
Hanger
Hanger with swanneck and 2 steel wheels mounted on balls. Capacity per door : 60 kg.
View productHanger
- Hanger with swanneck and 2 steel wheels mounted on balls. Capacity per door : 60 kg
Hanger
- Hanger with swanneck and 4 Delrin wheels mounted on smooth axle. Capacity per door : 60 kg
Hanger
- Hanger with removable collar and 4 Delrin wheels mounted on smooth axle. Capacity per door : 60 kg
Hanger
- Welding type hanger, with 4 steel wheels mounted on balls. Capacity per door : 60 kg
Hanger
Hanger with swanneck and 4 steel wheels mounted on balls. Capacity per door: 80 kg.
View productHanger
- Hanger with swanneck and 4 steel wheels mounted on balls. Capacity per door : 90 kg
Hanger
Hanger
Hanger
Hanger
- Hanger on ball bearing with nylon binding - M12 stainless steel screw - 200 kg per panel
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Roller with stainless steel framing and nylon wheels mounted on ball bearing top fixing Ø M14.
View productHanger
Hanger
Hanger with swan neck bracket, with 4 steel rollers mounted on ball bearings. M16 screw. Capacity/door: 300 kg. Corresponding track: 9040.
View productHanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
- Roller with stainless steel framing and nylon wheels mounted on ball bearing top fixing Ø M12
Hanger
Hanger
Hanger for automatic doors, with a swan neck bracket, 4 steels rollers mounted on ball bearings, and a guiding roller at each end. M16 screw. Capacity/door: 350 Kg. Corresponding track: 9050.
View productHanger
Hanger for automatic doors, with a swan neck bracket, 4 steels rollers mounted on ball bearings, and a guiding roller at each end. M16 screw, long (150 mm). Capacity/door: 350 kg. Corresponding track: 9050.
View productHanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
- Hanger with swanneck and 4 steel wheels mounted on ball bearings. Capacity per door : 1200kg
Hanger
Hanger
- Hanger for automatic doors, idem 9262S equipped with a guiding wheel at each end.Capacity per door :700 kg
Hanger
Hanger
- Hanger with swanneck and 4 steel wheels mounted on ball bearings Capacity per door : 1200kg
Hanger
- Hanger with removable collar, with 4 steel wheels mounted on ball bearings Capacity per door : 1200kg
Hanger
Hanger
- Double hanger with removable collar, with 8 steel wheels mounted on ball bearings Capacity per door :2000kg
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Steel hanger, 4 steel rollers mounted on ball bearings. Hanger with roller guidance. Corresponding track: 9070.
View productHanger
Hanger with removable collar and 4 steel wheels mounted on balls. Capacity per door : 80 kg.
View productHanger
Hanger
Hanger
Hanger
Universal face-mounted hangers (A or B depending on set-up) for panels up to 40 kg.
Hangers not compatible with 30 track, for wall mounting.
Hanger
Hanger equipped with 4 rollers, pins mounted on ball bearings, A2 stainless steel M8 screw (59mm). For panels operated manually, without synchronisation – max. weight 80 kg/panel.
View productHanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
- Side fixing hanger - with delrin hub and steel flange mounted on roller cages.
Hanger
Hanger
- Side fixing hanger - with nylon hub and steel flanges, mounted on roller cages
Hanger
Hanger
Hanger
Hanger
- Hanger with swanneck, mounted on ball bearings with Nylon binding - axle : Ø M10
Hanger
Hanger
- Hanger with swanneck, mounted on ball bearings with Nylon binding - axle: Ø M12
Hanger
- Hanger with swanneck, mounted on ball bearings with Nylon binding - axle : Ø M14
Hanger
Hanger
- Hanger with swanneck, mounted on ball bearings with Nylon binding - axle : Ø M16
Hanger
Hanger
- Hanger with swanneck, mounted on ball bearings with Nylon binding - axle : Ø M16
Hanger
Hanger
Hanger
Hanger with 2 Delrin rollers mounted in a roller frame. Door capacity 200 kg. Corresponding track: 5040.
View productHanger
Hanger with 2 steel rollers mounted in a roller frame; Door capacity 350 kg. Corresponding track: 6255.
View productHanger
Hanger with 2 steel rollers mounted in a roller frame. Door capacity 450 kg. Corresponding track: 8570.
View productHanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger
Hanger set
Left-side end hanger set including:
- 1 left-side end hanger
- 1 lower end-guide
Hanger set
Right-side end hanger set including:
- 1 right-side end hanger
- 1 lower right-side end-guide
Hanger set
Intermediate hanger set including:
- 1 intermediate hanger
- 1 lower intermediate guide
Hanger SUPERCADETTE
- Hanger SUPERCADETTE with wheels mounted on a RILSAN ring, supplied with stop-plate and stop
Heavy duty version for intensive use of the door (public places)
Set for doors up to 80 Kg, including:
- 1 hanger 13232 (mounted on ball bearings);
- 1 12046 reinforced Plate + 1 track/panel height adjustment gauge;
- 6 reinforced 1575 concealed hinges;
- Fasteners and instructions.
Hinge
Adjustable polished stainless steel hinge, 2 mm. Dimensions: 65 X 62 mm. Stainless steel pin, 8 mm in diameter. Face-mounted.
View productHinge
Adjustable galvanized steel hinge, 2 mm. Dimensions: 40 X (47 + 30) mm. Steel pin, 6 mm in diameter. Face-mounted.
View productHinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
- Hinge, welding type M 18 - 180° orientable. For gate up to 100 kg max. Length : 125 mm
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Weld-on hinge - M18, galvanized steel, screw-in clevis. For gates weighing up to 150 kg.
View productHinge
Hinge
Hinge
Screw-in hinge - M18, galvanized steel, screw-in clevis. For gates weighing up to 150 kg
View productHinge
Hinge
Hinge
Screw-in hinge - M18, galvanized steel, weld-on clevis. For gates weighing up to 150 kg.
View productHinge
Hinge
Hinge, welding type M 16 - 180° orientable. For gate up to 80 kg max. Length : 125 mm.
View productHinge
Screw-in (M116) plate-mounted hinge, galvanized steel, screw-in clevis, for gates of up to 100 kg.
View productHinge
- Special hinge with ball bearings. The benefits: - Holds the panels in the closed position - Closes the gap between the panels. This special hinge is an alternative to the hinges 1504C3 (3 hinges are required for 2 panels installations and 6 for 4 panels installations).
Hinge
Hinge
Hinge
- Screwing hinge 85 x 85, with a Ø 12 axle, top-fixing, for woods of 35 mm thick
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Hinge
Weld-type adjustable offset split hinge. Ø = 14 mm. Opening to the left.
View productHinge
Weld-type adjustable offset split hinge. Ø = 14 mm. Opening to the right.
View productHinge
Hinge
Stainless steel hinge (XA2), offset, fastened on edge (with handle). Pin Ø = 10 mm.
View productHinge
Hinge
Hinge
Hinge
Weld-type split hinge, between two doors. Adjustable for the 3 dimensions. Pin Ø = 12 mm.
View productHinge
Weld-type split hinge, between door and frame. Mounted on the right of the opening, (when you are on the track side). Adjustable for the 3 dimensions. Pin Ø = 12 mm.
View productHinge
Weld-type split hinge, between door and frame. Mounted on the left of the opening, (when you are on the track side). Adjustable for the 3 dimensions. Pin Ø = 12 mm.
View productHinge
Weld-type split hinge (with lubricator), between door and frame. Pin Ø = 12 mm.
View productHinge
Weld-type split hinge (with lubricator), between two doors. Pin Ø = 12 mm.
View productHook
Hook with safety catch, Ø14 - Inner diameter: 20 mm. Max. load: 150 Kg. (Corresponding MANTION track: 9040).
View productHook
Hook with safety catch, Ø16 - Inner diameter: 20 mm. Max. load: 250 kg. (Corresponding MANTION track: 9050/9060).
View productHook
Hook with safety catch, Ø16 - Inner diameter: 20 mm. Max. load: 250 kg. (Corresponding MANTION track: 9050)
View productHook
Hook with safety catch, Ø20 - Inner diameter: 20 mm. Max. load: 500 Kg. (Corresponding MANTION track: 9060).
View productHook
Hook
Housing kit
Housing kit
Housing kit
Housing kit
Housing kit
Housing kit
Housing kit
Housing kit
Intermediate bottom guide
Intermediate bottom guide
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger
Intermediate hanger set
Intermediate hanger set including:
- 1 intermediate hanger
- 1 lower intermediate guide
- 1 stainless steel (XA2) hinge (1510CXA2)
Joining angle bracket
Joining angle bracket (sliding) for joining 2 tracks 13108 or 13312 together.
View productJoining bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Jointing bracket
Keeper
Keeper
Keeper of bolt
Keeper of bolt
Keeper of bolt
Keeper of bolt
Keeper of lock
Kit
Kit with 2 handles in brushed stainless steel finish - Height 325 mm - diameter 20 mm
View productKit
Kit with 2 handles in brushed stainless steel finish - Height 408 mm - diameter 20 mm
View productKit
Kit with 2 handles in brushed stainless steel finish - Height 375 mm - diameter 20 mm
View productKit
Kit with 2 handles in brushed stainless steel finish - Height 300 mm - diameter 20 mm
View productKit
Kit with 2 handles in brushed stainless steel finish - Height 505 mm - diameter 20 mm
View productKit
Kit
- Set of end caps consisting of: - 2 aluminium caps for pelmet 11163 - 8 4.8x19 stainless steel screws - 2 clips 11169
Kit
Cladding kit for MDF door frame - suitable for SAF-INSIDECO70 and SAF-INSIDECO80.
View productKit
Cladding kit for MDF door frame - suitable for SAF-INSIDECO90 and SAF-INSIDECO100.
View productKit
Cladding kit for MDF door frame - suitable for SAF-INSIDECO140 and SAF-INSIDECO160.
View productKit
Cladding kit for MDF door frame - suitable for SAF-INSIDECO180 and SAF-INSIDECO200.
View productKit caisson
Kit caisson pour porte bois simple entre cloisons, porte 930 X 2040. Capacité/porte : 80 kg max. Epaisseur : 40 mm max. Voir notice commerciale.
View productKit caisson
Kit caisson pour porte verre double entre cloisons, porte 730 X 2015. Capacité/porte : 80 Kg max. Epaisseur : 8 mm max. Voir notice commerciale.
View productKit caisson
Kit caisson pour porte verre double entre cloisons, porte 830 X 2015. Capacité/porte : 80 Kg max. Epaisseur : 8 mm max. Voir notice commerciale.
View productKit caisson
Kit caisson pour porte verre double entre cloisons, porte 930 X 2015. Capacité/porte : 80 Kg max. Epaisseur : 8 mm max. Voir notice commerciale.
View productKit caisson
Kit caisson pour porte verre double entre cloisons, porte 1030 X 2015. Capacité/porte : 80 Kg max. Epaisseur : 8 mm max. Voir notice commerciale.
View productKit d’habillage
Kit d'habillage en MDF, pour porte 930 X 2040 ou 1030 X 2040, convient pour SAF-INSIDE180 et SAF-INSIDE200. Voir notice commerciale.
View productKit d’habillage en MDF pour porte en bois 730 x 2040 mm ou 830 x 2040 mm
- Kit d'habillage en MDF, pour porte 730 x 2400 ou 830 x 2040 - convient pour SAF-INSIDE70 et SAF-INSIDE80 - voir notice commerciale
Kit d’habillage en MDF pour porte en bois 930 x 2040 mm
- Kit d'habillage en MDF, pour porte 930 x 2040 ou 1030 x 2040 - convient pour SAF-INSIDE90 et SAF-INSIDE100 - voir notice commerciale
Kit for 80 kg doors – standard 103 cm door – Black anodised finish
Set for doors weighing up to 80 kg - standard 103 cm doors:
- 1 SAF82A gear (closer available as an option)
- 1 track kit, 1995 mm long (to be cut to fit the door width)
- 1 set of end caps
Kit for 80 kg doors – standard 103 cm door – natural anodised finish
Set for doors weighing up to 80 kg - standard 103 cm doors:
- 1 SAF82A gear (closer available as an option)
- 1 track kit, 1995 mm long (to be cut to fit the door width)
- 1 set of end caps
Kit for 80 kg doors – standard 83 cm door – Black anodised finish
Set for doors weighing up to 80 kg - standard 83 cm doors:
- 1 SAF82A gear (closer available as an option)
- 1 track kit (track + track bracket), 1595 mm long (40x45 mm)
- 1 set of end caps
Kit of 5 clips
Kit of 5 clips for fastening pelmets (every 700 mm at most) onto track 13312.
View productKit of 5 clips
Kit of 5 clips for fastening pelmets (every 700 mm at most) onto track 13108.
View productKit of two stops
Kit for two end stops with panel position holding mechanism, delivered with fastening tool.
Not compatible with hanger 0030.
View productKit poignée
Kit de 2 poignées avec fixation finition inox brossé - Hauteur 365 mm Ø 30 mm.
View productKit réhausse
- Kit de réhausse pour pose sur dalle brut (avant chappe) - Hauteur max = 115 mm. Livré avec vis de fixation.
Kit with two rods – For panels > 3 m high
Kit with two bolt-type stainless steel rods. For panels over 3 m high.
View productKit with two rods – For panels < 3 m high
Kit with two bolt-type stainless steel rods. For panels under 3 m high.
View productLatch
- Nickel-plated brushed metal latch with strike plate, to be mounted on the jamb of the opening. Travel = 18 mm
Left-side end hanger set
Left-side end hanger set including:
- 1 left-side end hanger
- 1 lower end-guide
Left-side fixed point set
Left-side fixed point set including:
- 1 upper fixed point
- 1 lower split-hinge
Lever handle
Lever handle
Aluminium lever handle white lacquered for tubes 30 to 60 mm square of 7mm (for lock 957).
View productLever handle
Lock
Lock
Lock
Lock
- Chassis and steel mechanism, bolt and headstall in STAINLESS STEEL. Aluminum lock plate lacquered white. For cylinder European profile 54mm
Lock
Stainless steel hook lock for glass door equipped with a European cylinder Delivered with 3 keys and a stainless steel keeper. For use with a timber door jamb.
View productLock
Lock
- Lock, round handles and cupped finger pull in stainless steel with cylinder and 2 keys.
Lock kit
Lock kit, flush-mounted, brushed finish, includes :
- 1 hook lock (case 68 x 110 mm) + face plate (height 90 mm)
- 2-piece round turn and release set
- 1 finger pull
Locking kit
Locking system to hold a sliding shutter/shade screen in any position. Simply pull and hold the cable to release the shutter/screen. Then release the cable to hold the shutter/screen in place again. Stainless steel 2-metre-long sheathed cable.
View productLocks
- Hook lock in galvanized steel - Supplied with a European cylinder + 3 keys - A = 96, B = 60 , C = 174
Locks
- Hook lock with end section and box in stainless steel - Supplied with a European cylinder + 3 keys - A = 106 , B = 60 , C = 185
Locks
- Hook lock in galvanized steel. Supplied with a keeper of lock - A = 96, B = 60
Locks
Locks
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door)* Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door)
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
Long clamp covering – 10 mm
LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces - Length of pelmets = 631 mm (635 mm door). * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour.
View productLong clamp covering – 15 mm
- LONG CLAMP COVERING* (covers entire width of door) Aluminium covering for 15 mm clamp consisting of 2 clamp pelmets and 2 end pieces. Length of clamp pelmets = 1.5 m (cut to length) * Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Long clamp covering – 15 mm
- LONG CLAMP COVERING* (covers entire width of door) / Aluminium covering for 15 mm clamp consisting of 2 clamp pelmets and 2 end pieces / Length of clamp pelmets = 3 m (cut to length)
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 631 mm (635 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 651 mm (655 mm door) * Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 681 mm (685 mm door) - Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 731 mm (735 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 751 mm (755 mm door)
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 781 mm (785 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 781 mm (785 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 851 mm (855 mm door) Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 881 mm (885 mm door)
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 931 mm (935 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted)or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 631 mm (635 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 981 mm (9855 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 1031 mm (1035 mm door) - *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted)or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 1051 mm (1055 mm door) *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted)or painted on request in your choice of RAL colour
Long clamp covering – 8 mm
- LONG CLAMP COVERING* (covers entire width of door). The kit includes 2 clamp pelmets and 2 end pieces. Length of pelmets = 1500 mm (cut to length). *Coverings are made of anodised aluminium. They are available in raw aluminium (to be painted) or painted on request in your choice of RAL colour
Lower aluminium track – 2 m
Lower aluminium track – 3 m
Lower guide
Lower guide on plate to be screwed in. For 30x30 U-profile (item no. 1110).
View productMagnet kit
Screw-type male/female magnet kit Enables doors to be held in the open position. Thickness = 26 mm. Ø = 30 mm. RAL 7016.
View productMagnet kit
Screw-type male/female magnet kit Enables doors to be held in the open position. Thickness = 60 mm. Ø = 30 mm. RAL 7016.
View productMonture Win-Slide 2
Monture Win-Slide 2 équipée de 4 galets, axes montés sur roulements à billes, vis M8 en INOX A4. Pour panneaux à actionnement manuel ou motorisé de 81 à 120 kg.
View productMortising plate
Moulded notched
Mounting bracket
Adjustable, single anodised aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.
View productMounting bracket
Adjustable, double, anodised aluminium mouting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.
View productNylon slider
Offset bottom guide
Offset bottom guide
Offset bottom guide
Offset bottom guide
Offset bottom guide
Offset end
Offset end hanger
Offset end hanger
Offset end hanger
Offset end hanger
Olive
Ornamental
Ornamental
Ornamental
Ornamental cap
Ornemental stop
Ornemental stop
Ornemental stop
Ornemental stop
Pelmet
Pelmet
Pelmet
Pelmet
Pelmet
Pelmet
Pelmet
Pelmet
Pelmet – 1,25 m
Pelmet – 1.25 m
Electrogalvanized steel pelmet* in lengths of 1.25 m. *To be painted – available in RAL colours upon request.
View productPelmet – 1.50 m
Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11108. To be used for ceiling mounting. Height = 63 mm - Length = 1.5 m
View productPelmet – 2 m
- Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11108. To be used for ceiling mounting. Height = 63 mm - Length = 2 m
Pelmet – 2 m
- Snap-on anodised aluminium pelmet*. To be used for wall mounting. Height = 86 mm – Length = 2 m.* Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Pelmet – 2 m
- Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11312. To be used for ceiling mounting. Height = 67 mm - Length = 2 m
Pelmet – 2,5 m
Pelmet – 2,5 m
Pelmet – 2,5 m
Pelmet – 2,5 m
Pelmet – 2,50 m
Electrogalvanized steel pelmet* in lengths of 2.5 m. *To be painted – available in RAL colours upon request.
View productPelmet – 3 m
- Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11108. To be used for ceiling mounting. Height = 63 mm - Length = 3 m
Pelmet – 3 m
- Snap-on anodised aluminium pelmet*. To be used for wall mounting. Height = 86 mm – Length = 3 m.* Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Pelmet – 3 m
- Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11312. To be used for ceiling mounting. Height = 67 mm - Length = 2 m
Pelmet – 3 m
Clip-on raw aluminium pelmet. For track 10500A. Used for wall mounting - Height = 105 mm - Length = 3 m. Pelmets can be painted on request in your choice of RAL colour.
View productPelmet – 4 m
- Snap-on anodised aluminium pelmet*. To be used for wall mounting. Height = 86 mm – Length = 4 m.* Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Pelmet – 4 m
Pelmet – 5 m
Pelmet – 6 m
Pelmet – 6 m
Anodized aluminium pelmet (available in RAL colours upon request) to be snapped onto track 11108. To be used for ceiling mounting. Height = 63 mm - Length = 6 m.
View productPelmet – 6 m
- Snap-on anodised aluminium pelmet*. To be used for wall mounting. Height = 86 mm – Length = 6 m.* Coverings are made of anodised aluminium. They are available on request painted in your choice of RAL colour
Pelmet – 6 m
Pelmet – 6 m
Clip-on raw aluminium pelmet. For track 10500A. Used for wall mounting - Height = 105 mm - Length = 6 m. Pelmets can be painted on request in your choice of RAL colour.
View productPin kit
Ø9, Ø10 and Ø11 mm pin kit for adjusting the clearance between panels.
View productPins
Pivot
Pivot
Pivot
Pivot
Pivot
Pivot
Pivot Ø 50 in stainless steel, with sealing fastener for heavy manual or motorized gates. Adjustable on the upper part.
View productPivot
Pivot (lower and upper part) Ø 50 in dichromated steel for heavy manual or motorized gates.
View productPivot
Pivot
Pivot
- Pivot Ø 70 in dichromated steel, with sealing fastener for heavy manual or motorized gates. Adjustable on the upper part.
Pivot
Pivot
Pivot
- Pivot Ø 50 in dichromated steel. With "L" fastener, screwing type for heavy manual or motorized gates. The screws enable an adjustment on both upper and lower parts.
Pivot
Pivot
Pivot
- Pivot Ø 70 in dichromated steel. With "L" fastener, screwing type for heavy manual or motorized gates. The screws enable an adjustment on the both upper and lower parts.
Pivot
Pivot
Pivot
Pivot kit
Plastic runner
- Grey plastic runner on stainless steel plate to be attached under the panel Used with profiles 11121 and 11122
Plate
Plate for side-mounted doors. L = 127 mm. Can be installed flush to obtain the smallest gap between the track and door (min. gap of 11 mm required).
View productPlate
Screw-in plate, fixed on the edge for a front-mounted door. Length = 110 mm.
View productPlate
Plate for side-mounted doors. L = 127 mm. Can be installed flush to obtain the smallest gap between the track and door (min. gap of 11 mm required).
View productPlate
Plate
Angle plate, screwed in at the end of the panel. Enables the door to be mounted in alignment with the track. For panels up to 120 kg.
If using damper(s) M65S / M66S / M67S / M68S:
- for 1 damper: min. width of door: 890 mm;
- for 2 dampers: min. width of door: 940 mm.
Plate
Screw-in plate, fixed on the edge for a front-mounted door. Length = 110 mm.
View productPlate
Plate
Plate
A2 stainless steel plate to be screwed on edge. Panel thickness: 25 mm min.
View productPlate
A2 stainless steel bracketto be screwed on panel face (80 x 58 mm). Panel thickness: 28 to 36 mm.
View productPlate
Plate
- Stainless steel plate to be screwed on flat side (95 x 62 mm) min. panel 30 mm.
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Jointing plate for track elements in flat iron or for profiles of 40 x 6 mm section and/or 50 X 6 mm section.
View productPlate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Plate
Point set
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Produit
Profile – 1 m
Profile – 1,50 m
Profile – 2 m
Profile – 2 m
Profile – 2 m
FINISHING PROFILES in lengths of 2 m - White lacquered aluminum profile (RAL 9016).
View productProfile – 2,5 m
Profile – 3 m
Anodised aluminium Profile to hide the fixed partition in the opening bay . Length = 3 m.
View productProfile – 3 m
Anodised aluminium U-Profile to be screwed into floor and wall to retain the fixed glass partition - Length = 3 m.
View productProfile – L = 3 m
Profile – L = 3 m
Profile – Length = 6 m
- Anodised aluminium U-Profile to be screwed into floor and wall to retain the fixed glass partition - Length = 6 m
Protective olive
Soft protective olive on stainless steel plate to be attached under the panel Used with profiles 11121 - 11122 and 11109
View productPull
Pulley
Swinging pulley Ø ext. : 90 mm - Ø groove : 75 mm - for cables of Ø max. 4 mm.
View productRack
- Rack for motorized gates Length : 1 m. Module 4 - 22 x 22 in galvanized steel
Rack
- Rack for motorized gates Length: 1 m. Module 4 - Drilled for a M8 screw - 30x12 in black vernish steel.3 pins/rack
Rack
- Additionnal rack allowing closing time adjustment (for SC-145 kit : you have to use 2 racks)
Rack
- Rack with a compound-filled steel core. 20 x 77 mm section. Length : 0.33 m - Module : 4
Raw aluminium track – 6 m
Raw aluminum pelmet – 2 m
Raw aluminium pelmet to be snapped onto tracks 11108 and 11312. To be used for wall mounting. Height = 86 mm - Length = 2 m.
View productReady-to-install set – opening of 0,73 m to 0,83 m
Ready-to-install set - opening of 0.73 m to 0.83 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 0,93 m to 1,13 m
Ready-to-install set - opening of 0,93 m to 1,13 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 0.73 m to 0.83 m
Ready-to-install set - opening of 0.73 m to 0.83 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 0.83 m to 0.93 m
Ready-to-install set - opening of 0.83 m to 0.93 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 0.83 m to 0.93 m
Ready-to-install set - opening of 0.83 m to 0.93 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 0.93 m to 1.13 m
Ready-to-install set - opening of 0.93 m to 1.13 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.13 m to 1.33 m
Ready-to-install set - opening of 1.13 m to 1.33 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.13 m to 1.33 m
Ready-to-install set - opening of 1.13 m to 1.33 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.33 m to 1.53 m
Ready-to-install set - opening of 1.33 m to 1.53 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.33 m to 1.53 m
Ready-to-install set - opening of 1.33 m to 1.53 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.53 m to 1.73 m
Ready-to-install set - opening of 1.53 m to 1.73 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.53 m to 1.73 m
Ready-to-install set - opening of 1.53 m to 1.73 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.53 m to 1.73 m
Ready-to-install set - opening of 1.53 m to 1.73 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and dampers;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.53 m to 1.73 m
Ready-to-install set - opening of 1.53 m to 1.73 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.73 m to 1.93 m
Ready-to-install set - opening of 1.73 m to 1.93 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.73 m to 1.93 m
Ready-to-install set - opening of 1.73 m to 1.93 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge
- Installation instructions and tools.
Ready-to-install set – opening of 1.73 m to 1.93 m
Ready-to-install set - opening of 1.73 m to 1.93 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and dampers;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.73 m to 1.93 m
Ready-to-install set - opening of 1.73 m to 1.93 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.93 m to 2.13 m
Ready-to-install set - opening of 1.93 m to 2.13 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 1.93 m to 2.13 m
Ready-to-install set - opening of 1.93 m to 2.13 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.93 m to 2.13 m
Ready-to-install set - opening of 1.93 m to 2.13 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and dampers;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 1.93 m to 2.13 m
Ready-to-install set - opening of 1.93 m to 2.13 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.13 m to 2.33 m
Ready-to-install set - opening of 2.13 m to 2.33 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 2.13 m to 2.33 m
Ready-to-install set - opening of 2.13 m to 2.33 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.13 m to 2.33 m
Ready-to-install set - opening of 2.13 m to 2.33 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and dampers;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.13 m to 2.33 m
Ready-to-install set - opening of 2.13 m to 2.33 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.33 m to 2.53 m
Ready-to-install set - opening of 2.33 m to 2.53 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 1 roller kit with clamps and damper;
- 2 end stops;
- 2 anodised aluminium end caps;
- 2 fastening clips for pelmet;
- 1 lower guide;
- Installation instructions and tools.
Ready-to-install set – opening of 2.33 m to 2.53 m
Ready-to-install set - opening of 2.33 m to 2.53 m includes:
- 1 anodised aluminium track with wall mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.33 m to 2.53 m
Ready-to-install set - opening of 2.33 m to 2.53 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and dampers;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Ready-to-install set – opening of 2.33 m to 2.53 m
Ready-to-install set - opening of 2.33 m to 2.53 m includes:
- 1 anodised aluminium track with ceiling mounting holes - cut to length;
- 1 anodised aluminium track pelmet - cut to length;
- 2 roller kits with clamps and damperss;
- 1 cable-operated synchronisation kit;
- 4 end stops;
- 2 anodised aluminium end caps;
- 3 fastening clips for pelmet;
- 2 lower guides and 1 translucent adhesive seal for door edge;
- Installation instructions and tools.
Rectangular recessed handles chrome-plated metal
Rectangular recessed handles gold-plated metal
Reinforced cog belt
Reinforced cog belt
Reinforced cog belt
Reinforced cog belt
Reinforced cog belt
Reinforced cog belt
Reinforced U plate
Reinforced U plate
Remote control
Radio transmitter, wireless switch, ideal for renovation: no cables to lay! 433.92 MHz remote control.
View productReturn pulley
Return pulley
Right-side end hanger set
Right-side end hanger set including:
- 1 right-side end hanger
- 1 lower end-guide
Right-side fixed point set
Right-side fixed point set including:
- 1 upper fixed point
- 1 lower split-hinge
Ring
Galvanized steel ring, Ø14 - Ring inner diameter: Ø30. Max. load: 150 kg. (Corresponding MANTION track: 9040).
View productRing
Galvanized steel ring, Ø16 - Ring inner diameter: Ø35. Max. load: 250 kg. (Corresponding MANTION track: 9050/9060)
View productRing
Galvanized steel ring, Ø16 - Ring inner diameter: Ø35. Max. load: 250 kg. (Corresponding MANTION track: 9050).
View productRing
Galvanized steel ring, Ø20 - Ring inner diameter: Ø40. Max. load: 500 Kg. (Corresponding MANTION track: 9060)
View productRound groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round groove wheel
Round recessed handles beige colour
Round recessed handles black colour
Round recessed handles brown colour
Round recessed handles chrome-plated metal
Round recessed handles in chrome-plated metal Ø 35 mm (ideal for door edge)
View productRound recessed handles gold colour
Round recessed handles gold-plated metal
Round recessed handles silver colour
Round recessed handles white colour
Runner
- White plastic adjustable guide (14 to 30 mm) on steel bracket with cataphoretic coating + RAL 9010 white epoxy paint
Runner
Grey plastic runner on stainless steel bracket for 25 x 17 and 30 x 30 U-profiles
View productRunner
Dual grey plastic runner on stainless steel bracket for 25 x 17 and 30 x 30 U-profiles and 4 mm flat
View productRunner
Grey plastic runner on stainless steel plate to be attached under the follower panel Used with profile 11122 on 2nd track
View productRunner
- Grey plastic runner with screw and S6 plug for 25 x 17 and 30 x 30 U-profiles and 4 mm flat iron
Runner
- Grey plastic screw-in runner for 25 x 17 mm and 30 x 30 mm U-profiles and 4 mm flat iron
SAF-FOLD set for doors up to 80 kg
Set for doors up to 80 Kg, including:
- 1 13108 anodised aluminium track. L = 1.4 m drilled every 0.44 m;
- 1 hanger (mounted on ball bearings);
- 1 12036Z Plate + 1 track/panel height adjustment gauge;
- 6 1540 concealed hinges;
- Fasteners and installation instruction.
Seal
Black plastic threshold seal. Fastened onto the threshold for better sealing. 10 mm. Sold by the metre.
View productSeal
Seal
Translucent adhesive seal for sticking on the edge of the glass panel. Length = 3 m.
View productSeal strip
Bi-material adhesive rubber seal strip to stick on the edge of the door to cushion the closing.
View productSealing bar
Sealing bar
Sealing bar
Sealing bar - 35 x 5 mm section and 720 mm length - For curves 1702 L and 1722 L
View productSet
Set includes:
- 1 aluminium double track, length = 1.94 m;
- 1 TUB40-2 gear for 2 face-mounted panel;
- screws and installation instructions.
Set
Set includes:
- 1 aluminium double track, length = 3 m;
- 1 TUB40-2 gear for 2 face-mounted panels;
- screws and installation instructions.
Set
Set comprising :
- 2 TUB38 fittings,
- 1 track 38 drilled every 220 mm, L = 1.50 m
Capacity/door 38 kg.
Set
Set for 120 Kg door including :
- 1 fitting SAF120A;
- 10 angle brackets 11013;
- 1 track 11312 (L = 3 m);
- Buly (spirit level).
Set
Set
Set
Set
Set
Complete set for 40 Kg doors comprising :
- 1 gear SAF 40A (a damper closer M66 instead of the adjustable stop 11213)
- 4 sliding angle plates 11013
- 1 track 11108 in 1.50 m length + spirit level
Set – 1 panel – 80 Kg
Kit for 1 shutter up to 80 kg max. :
- 1 track 11108, 2 m long + spirit level
- 2 hangers 11218HCX equipped with 4 rollers, stainless steel M8 screws
- 2 stainless steel plates 0026XA2, to be screwed on edge - min. panel width: 20 mm
- 2 claw stops 11213XA2 with stainless steel screw (adjustable force)
- 6 adjustable mounting brackets 11113, 80 kg, raw aluminium with stainless steel fastenings - vertical adjustment = 10 mm - horizontal adjustment = 12 mm
- 3 adjustable guides 1128ARG, white plastic on electrocoated steel bracket + white polyester paint RAL 9010
- 1 U-profile 1109, 25x17, galvanised steel, length 1.5 m
Set – 10 mm – Opening: 1400 to 1450 mm
Set includes:
- 1 aluminium track;
- 1 pelmet with 2 end caps + 2 pelmet mounts;
- 2 aluminium clamps;
- 2 hangers;
- 1 clamp cover;
- 1 braking device;
- 1 toothed rack;
- 1 control box;
- 1 door holder kit;
- 2 stops;
- 1 guide.
Set – 2 m
Set of natural anodised tracks in 2 m lengths for 2 panels:
- 1 aluminium set of upper and lower tracks + housing in 2 m. length
- 1 aluminium finishing profile 61T of 2 m. lenght
- 4 PICO59 rollers and 4 PICO59 guides
- Screws and mounting instructions
Set – 2 panels – 80 Kg
Kit for 2 shutters up to 80 kg max. :
- 2 tracks 11108, 2 m long + spirit level
- 4 hangers 11218HCX equipped with 4 rollers, stainless steel M8 screws
- 4 stainless steel plates 0026XA2, to be screwed on edge - min. panel 20 mm
- 4 claw stops 11213XA2 with stainless steel screw (adjustable force)
- 1 raw aluminium joining bracket 11113M (for joining 2 tracks)
- 10 adjustable mounting brackets 11113, 80 kg, raw aluminium with stainless steel fastenings - vertical adjustment = 10 mm - horizontal adjustment = 12 mm
- 5 adjustable guides 1128ARG, white plastic on electrocoated steel bracket + white polyester paint RAL 9010
- 2 U-profiles 1109, 25x17, galvanised steel, length 1.5 m
Set – 2m
Set of lacquered white (RAL 9016) finishing tracks in 2 m lengths for 2 panels:
- 1 set of upper and lower tracks + housing in 2 m. length
- 1 profile 61T of 2 m. lenght
- 4 PICO59 rollers and 4 PICO59 guides
- Screws and mounting instructions
Set – 3 m
Set of natural anodised tracks in 3 m lengths for 3 panels:
- 1 aluminium set of upper and lower tracks + housing in 3 m. length
- 1 aluminium finishing profile 61T of 2 m. lenght
- 6 PICO59 rollers and 6 PICO59 guides
- Screws and mounting instructions
Set – 3 m
Set of lacquered white (RAL 9016) finishing tracks in 3 m lengths for 3 panels:
- 1 set of upper and lower tracks + housing in 3 m. length
- 1 profile 61T of 2 m. lenght
- 6 PICO59 rollers and 6 PICO59 guides
- Screws and mounting instructions
Set – 8 mm – bay: 1400 to 1450 mm
Set including:
- 1 aluminium track;
- 1 headband with 2 end caps + 2 headband supports;
- 2 aluminium clamps;
- 2 hangers;
- 1 clamp cover;
- 1 rack brake;
- 1 rack;
- 1 control box - door holding kit;
- 2 stops;
- 1 guide.
Set – For doors up to 80 Kg
Complete set for 80 Kg doors comprising :
- 1 gear SAF80A (a damper closer M66 instead of the adjustable stop 11213)
- 5 sliding angle plates 11013
- 1 track 11108 in 2.00 m length + spirit level
Set – For doors up to 80 Kg
Complete set for 80 Kg doors comprising :
- 1 gear SAF80A (a damper closer M66 instead of the adjustable stop 11213)
- 5 sliding angle plates 11013
- 1 track 11108 in 3 m length + spirit level
Set – Track 1.20 m
Set for 2 panels including : 1 aluminium track of 1.20 m (SAF), 1 SAF hanger (ball bearings) with plate, 1 upper pivot, 1 lower pivot, 3 hinges 1504C3, screws and mounting instructions.
View productSet – Track 1.50 m
Set for 2 panels including:
- 1 aluminium track of 1.50 m (SAF);
- 1 SAF hanger (ball bearings) with plate;
- 1 upper pivot;
- 1 lower pivot;
- 3 hinges 1504C3;
- Screws and mounting instructions.
Set – Track 2 m
Set for 4 panels including :
- 1 aluminium track of 2 m (SAF)
- 2 SAF hangers (ball bearings) with plate
- 2 upper pivots
- 2 lower pivots
- 6 hinges 1504C3
- Screws and mounting instructions.
Set – Track 3 m
Set for 4 panels including :
- 1 aluminium track of 3 m (SAF)
- 2 SAF hangers (ball bearings) with plate
- 2 upper pivots
- 2 lower pivots
- 6 hinges 1504C3
- Screws and mounting instructions.
Set CADETTE
Set including : 1 gear CADETT, 1 track 2526F/185 (aluminium - 1.85 m). 5 brackets 2528.
View productSet for 1 door weighing 10-80 kg
Set for 1 door weighing 10-80 kg:
- 1 track 13108, length 1.95 m;
- 1 gear SAF10-80;
- 5 angle brackets 13013.
Set for 1 door weighing 10-80 kg
Set for 1 door weighing 10-80 kg:
- 1 track 13108, length 3 m;
- 1 gear SAF10-80;
- 7 angle brackets 13013.
Set for 1 door weighing 81-120 kg
Set for 1 door weighing 81-120 kg:
- 1 track 13312, length 3 m;
- 1 gear SAF81-120;
- 10 angle brackets 13013.
Set for doors 1030 to 1080 mm wide
Set for doors 1030 to 1080 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions
Set for doors 1480 to 1530 mm wide
Set for doors 1480 to 1530 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions
Set for doors 730 to 780 mm wide
Set for doors 730 to 780 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions
Set for doors 830 to 880 mm wide
Set for doors 830 to 880 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions
Set for doors 930 to 980 mm wide
Set for doors 930 to 980 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions
Set for doors up to 40 kg
Set for doors up to 40 kg including :
- 1 aluminium track (L = 1.65 m) drilled every 0.44 m + bubble level
- 2 hangers MA40A with 2 plates 10036
- 2 end stops
- 1 guide 1103
Set for doors up to 40 kg
Set for doors up to 40 kg including :
- 1 aluminium track (L = 1.90 m) drilled every 0.44 m + bubble level
- 2 hangers MA40A with 2 plates 10036
- 2 end stops
- 1 guide 1103
Set for doors up to 40 kg
Set for doors up to 40 kg including :
- 1 aluminium track (L = 2.40 m) drilled every 0.44 m + bubble level
- 2 hangers MA40A with 2 plates 10036
- 2 end stops
- 1 guide 1103
Set for doors up to 40 Kg
Complete set for 40 Kg doors comprising :
- 1 gear SAF 40A (a damper closer M66 instead of the adjustable stop 11213)
- 5 sliding angle plates 11013
- 1 track 11108 in 2 m length + spirit level
Set for doors up to 40 Kg – Aluminium track L: 1.85 m
Set for doors up to 40 Kg including :
- 1 track 2526F/185 (aluminium - 1.85 m)
- 2 rollers 0222 supplied with 2 plates 0026 and 0021
- 2 end stops 1097
- 1 guide 1103
- 1 spirit level
- Screws, spanner and mounting instructions
Set for doors up to 40 Kg – Steel track L: 1.85 m
Set for doors up to 40 Kg including:
- 1 track 2525F/185 (steel - 1.85 m)
- 2 rollers 0222 supplied with 2 plates 0026 and 0021
- 2 end stops 1097
- 1 guide 1103
- Screws, spanner and mounting instructions
Set for doors up to 60 Kg – Aluminium track L: 1.85 m
Set for doors up to 60 Kg including :
- 1 track 2526F/185 (aluminium - 1.85 m)
- 2 rollers 0224 with monobloc plates and crash-stops
- 1 guide 1103R
- 1 spirit level
- Screws, spanner and mounting instructions
Set for doors up to 60 Kg – Steel track L: 1.85 m
Set for doors up to 60 Kg including:
- 1 track 2525F/185 (steel - 1.85 m)
- 2 rollers 0224 with monobloc plates and crash-stops
- 1 guide 1103R
- Screws, spanner and mounting instructions
Set for doors up to 60 Kg – Steel track L: 2.30 m
Set for doors up to 60 Kg including:
- 1 track 2525F/230 (steel - 2.30 m)
- 2 rollers 0224 with monobloc plates and crash-stops
- 1 guide 1103R
- Screws, spanner and mounting instructions
Set for doors up to 80 kg
Set for doors up to 80 kg, includes:
- 1 aluminium track (L = 1.65 m) drilled every 0.44 m + bubble level;
- 2 hangers MA40A with 2 plates 10036;
- 2 end stops;
- 1 guide 1103R.
Set for doors up to 80 kg
Set for doors up to 80 kg, includes:
- 1 aluminium track (L = 1.90 m) drilled every 0.44 m + bubble level;
- 2 hangers MA40A with 2 plates 10036;
- 2 end stops;
- 1 guide 1103R.
Set for doors up to 80 kg
Set for doors up to 80 kg including :
- 1 aluminium track (L = 2.40 m) drilled every 0.44 m + bubble level
- 2 hangers MA40A with 2 plates 10036
- 2 end stops
- 1 guide 1103R
Set for doors up to 80 kg
Complete set for 80 Kg doors comprising:
- 1 raw aluminium track in 3 m length drilled every 0.44 m;
- 1 Buly® (spirit level);
- 2 rollers MA80A and 2 plates 10036;
- 2 adjustable stops;
- 1 guide 1103R;
- Spanner, screws and assembly instructions.
Set for doors up to 80 Kg
Set for doors up to 80 Kg, including:
- 1 hanger (mounted on ball bearings) ;
- 1 12036Z Plate + 1 track/panel height adjustment gauge ;
- 6 1540 concealed hinges ;
- Fasteners and installation instructions.
Set for two panels – 2 m
Set includes:
- 4 screw-in tracks 25V/200M, 2 m long;
- 2 sets of gear PICO26;
- screws and installation instructions.
Sets packaged in a PET tube. Ideal for self-service display.
View productSet for Up and Over door
Kit including :
- 2 hangers ref. 4450;
- 1 guide ref. 4451 D;
- 1 guide ref. 4451 G;
- 4 pulleys ref. 4090;
- 2 plates ref. 7153;
- 2 plates ref. 7153 L.
Set for Up and Over door
Kit including :
- 2 hangers ref. 4540,
- 1 guide ref. 4541 D,
- 1 guide ref. 4541 G,
- 4 sheaves ref. 4145 F,
- 2 angle plates ref. 5043,
- 4 top-fixing plates ref. 5044,
- 4 brackets ref. 5041.
Set MINITU 100
Set including :
- 4 sliders Minitub in white polyamide 0111 ;
- 3 guides 1123 ;
- 2 finger pulls 1293 ;
- 2 tracks 1609 - 1 m long ;
- Screws and mounting instructions.
Set MINITU 150
Set including :
- 4 sliders Minitub in white polyamide 0111;
- 3 guides 1123;
- 2 finger pulls 1293;
- 2 tracks 1609 - 1,5 m long;
- Screws and mounting instructions.
Set of aluminium clamps
Set of curves
Set of 2 curves - To be used in case of automatic door for a perfect running.
View productSet of end cap
- Set of end pieces (available in RAL colours upon reques) comprising : 2 raw aluminium end pieces for pelmet 11163 - 8 stainless steel 4.8 x 19 screws - 2 raw aluminium clips 11169
Set of end cap
- Set of end pieces (available in RAL colours upon request) to fasten the pelmet onto the track (required for pelmets more than 3 m long)
Set of end caps
Set of black raw plastic end caps for GJ10530P pelmets. End caps can be painted on request in your choice of RAL colour.
View productSet of end caps
Set of black raw plastic end caps for pelmets (GH10430P). End caps can be painted on request in your choice of RAL colour.
View productSet of end caps
Set of end caps
Set of end caps
Set of end caps
Set of end caps black anodised finish
Set of end caps natural anodised finish
Set of hinges
Set of 3 weld-type split-hinges, opening to the left, including:
- 2 weld-type adjustable offset split-hinges. Ø 14 mm. (1514GJSOL)
- 1 weld-type hinge. Ø 14 mm. (1514GJOSO)
Set of hinges
Set of 3 weld-type split-hinges, opening to the right, including:
- 2 weld-type adjustable offset split-hinges. Ø 14 mm. (1514GJSOR)
- 1 weld-type hinge. Ø 14 mm. (1514GJOSO)
Set of hinges
Set of hinges
Set of 3 stainless steel hinges (XA2), centred, fastened on edge. Pin Ø = 10 mm.
View productSet of hinges
Set of 3 stainless steel hinges (XA2), offset, fastened on edge (with handle). Pin Ø = 10 mm.
View productSet of hinges
Set of 3 stainless steel hinges (XA2), offset, fastened on edge. Pin Ø = 10 mm.
View productSet of pelmet end caps
Set of pelmet end caps 11264L, for manual shutters, including : 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel fastening screws.
View productSet of pelmet end caps
Ditto for motorised shutters; contains an extra bracket for the end cap on the motor side.
View productSet of pelmet end caps
Set of pelmet end caps 11263, including: 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel fastening screws.
View productSet of pelmet end caps
Set of pelmet end caps 11263L, for synchronised shutters, including: 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel 3.9 x 19 screws.
View productSet of pelmet end caps
DItto for motorised shutters; contains an extra bracket for the end cap on the motor side.
View productSet of pelmet mounts
Set of 4 black plastic pelmet mounts (GJ10530P). Fastened to track 10500A if track is wall-mounted.
View productSet of pelmet mounts
Set of 4 black plastic pelmet brackets (GH10430P). Fastened to track 10400A if track is wall-mounted.
View productSet of suspensions
Set of 5 A2 stainless steel suspensions.
Manual configuration with ceiling mounting : for fastening the pelmet (not supplied by MANTION)
Motorised configuration with ceiling mounting : for installing the motor and fastening the pelmet (not supplied by MANTION).
View productSet of tracks
- Set of aluminium tracks, anodized aluminium - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)
Set of tracks
- Set of aluminium tracks, bronze colour - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)
Set of tracks – 2 m
Set of aluminium tracks, anodized aluminium - L = 2 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).
View productSet of tracks – 2 m
Set of aluminium tracks, white painted (9016 RAL) - L = 2 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).
View productSet of tracks – 3 m
Set of aluminium tracks, anodized aluminium - L = 3 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).
View productSet of tracks – 3 m
Set of aluminium tracks, white painted (9016 RAL) - L = 3 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).
View productSet of two end caps
Set of upper and lower pivots
Set of upper and lower pivots with integrated stop. Mounted on the first panel.
View productSet SAF for 1 door weighing 10-20 kg
Set for 1 door weighing 10-20 kg fixing to the wall:
- 1 track 13108, length 1,95 m ;
- 2 hangers 13218 (mounted on ball bearings) ;
- 2 plates 13036 ;
- 1 adjustable end stop 11213 ;
- 1 damper M65S ;
- 1 floor guide 1103R ;
- 5 angle brackets 13013 ;
- 1 Buly (bubble level).
Set SAF for 1 door weighing 21-60 kg
Set for 1 door weighing 21-60 kg fixing to the wall:
- 1 track 13108, length 1,95 m ;
- 2 hangers 13218 (mounted on ball bearings) ;
- 2 plates 13036 ;
- 1 adjustable end stop 11213 ;
- 1 damper M66S ;
- 1 floor guide 1103R ;
- 5 angle brackets 13013 ;
- 1 Buly (bubble level).
Set SAF for 1 door weighing 21-60 kg
Set for 1 door weighing 21-60 kg fixing to the wall:
- 1 track 13108, length 3 m ;
- 2 hangers 13218 (mounted on ball bearings) ;
- 2 plates 13036 ;
- 1 adjustable end stop 11213 ;
- 1 damper M66S ;
- 1 floor guide 1103R ;
- 7 angle brackets 13013 ;
- 1 Buly (bubble level).
Set SAF for 1 door weighing 61-80 kg
Set for 1 door weighing 61-80 kg fixing to the wall:
- 1 track 13108, length 3 m ;
- 2 hangers 13218 (mounted on ball bearings) ;
- 2 plates 13036 ;
- 1 adjustable end stop 11213 ;
- 1 damper M67S ;
- 1 floor guide 1103R ;
- 7 angle brackets 13013 ;
- 1 Buly (bubble level).
Set SAF for 1 door weighing 81-120 kg
Set for 1 door weighing 81-120 kg fixing to the wall:
- 1 track 13312, length 3 m ;
- 2 hangers 13232 (mounted on ball bearings) ;
- 2 plates 13036 ;
- 1 adjustable end stop 11213 ;
- 1 damper M68S ;
- 1 floor guide 1103R ;
- 10 angle brackets 13013 ;
- 1 Buly (bubble level).
Shims
Set of 4 shims to increase the distance between the wall and the track. Length: 10 mm.
View productShutter fastener
- Set includes: clevis with mounted hook, length = 463 mm max. - 2 adjustable latch catches - installation instructions. 4 blocking positions possible: closed, sunshade, half-open, open.
Shutter fastener
- Set includes: clevis with mounted hook, length = 578 mm max. - 2 adjustable latch catches - installation instructions. 4 blocking positions possible: closed, sunshade, half-open, open.
Side fixing plate
Side fixing plate
Side fixing plate
Side fixing plate
- Side fixing plate with tapped hole Ø M8, Height = 40 mm, width = 40 mm, For panels thicker than 20 mm
Side fxing plate
Hanger. Length = 75 mm, width = 20 mm For panels of 16 mm and 19 mm thickness
View productSide mounting hanger
Slide
Slide – 2 m
Slide – 2,63 m
Slider
Slider
Spacer
Spring
Spring
Spring catch
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Square steel pillar
Stainless steel angle bracket
XA2 stainless steel angle bracket with stop. Enables panels to be correctly positioned in the closed position. Screwed on every two panels.
View productStainless steel link
Stainless steel link for multiple panels to drag shutters along when motorizing swinging shutters. Min. and max. width of panels: min. = 400 mm, max. = 650 mm.
View productStainless steel plate
Stainless steel plate to screw into edge, diameter M8 - 100 x 25. Thickness : 25/10.
View productStainless steel plate
XA2 stainless steel plate, fastened on edge, with threaded M10 hole and XA2 stainless steel M10 hex nut. Length = 135 mm - width = 20 mm. For panels over 20 mm thick.
View productStainless steel roller
316L roller with a swan neck bracket, stainless steel rollers mounted on stainless steel ball bearings, and an M14 fixing bolt. Removable collar. For doors weighing up to 400 kg.
View productStainless steel wheels
- Stainless steel wheels Ø100 - Round groove wheel Ø21 - Capacity/wheel = 400 Kg
Stainless steel wheels
Stainless steel wheels Ø120 - Round groove wheel Ø21 - Capacity/wheel = 500 Kg
View productStandard plate
Steel dish handle
Steel handle
Steel handle
Steel handle
Steel pull handle
Flat, steel pull handle with a “black” finish. Height = 356 mm. Width = 32 mm
View productSteel wheel
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Stop
Middle gate stop, sealing type Height : 85 mm Width : 60 mm - Length : 100 mm.
View productStop
Middle gate stop, sealing type Height : 115 mm - Width : 100 mm Length: 160 mm.
View productStop
Middle gate stop, screwing type Height : 40 mm - Width : 100 mm Length : 140 mm.
View productStop
Stop
Stop
Stop
Double stop in cast iron for door closing in the centre - Adjsutable from 40 to 75 mm - sealing type
View productStop
Stop
Stop for swing shutters
Stop for swing shutters
Stop for swing shutters
Stop-holder
Brushed stainless steel stop-holder. Travel = 35 mm. Height = 140 mm. Width = 40 mm.
View productStop-holder
Brushed stainless steel stop-holder - travel = 35 mm - Height: 160 mm - Largeur: 30 mm.
View productStop-holder
Painted zamak stop-holder - travel = 20 mm - Height: 135 mm - Largeur: 50 mm
View productStopper
Stopper
Stopper – Doors up to 80 Kg
Stopper for doors up to 40 Kg
Supporting end wheel
- Supporting end wheel for track 10500 PAF comprising an axle, two spacers, two circlips and a wheel.
Supporting end wheel
- Supporting end wheel for track 10600 PAF comprising an axle, two spacers, two circlips and a wheel.
Switch
Switch
Switch
Switch
Switch
Symetric mechanism
The SYMETRIC mechanism allows the installation of aditional doors, and thus enables their symmetrical and simultaneous opening and closing. The advantage of the assembly is the extremely decorative combination of synchronously operating rollers.
Compatible onyl with type A and D rollers.
View productSynchronisation kit – 8 mm
Kit for synchronising 2 8 mm doors (2.20m opening max.):
- 2 return pulleys ;
- 1 cable 1.5 mm Ø 10 m long ;
- 2 clamps and 3 mounting brackets - fixing screw and installation instructions.
Synchronisation kit for 2 opposing 80 kg doors
Synchronisation kit for 2 opposing 80 kg doors, with an opening of up to 2.2 m, includes:
- 4 hangers 13218, with 4 plates 13036;
- 2 adjustable end stops 11213;
- 2 end stops 11213N;
- Synchronisation parts;
- 1 Buly (bubble level);
- 2 guides 1103R.
Synchronisation kit for 2 opposing 80 kg doors
Synchronisation kit for 2 opposing 80 kg doors, with an opening of up to 2.2 m, includes:
- 4 hangers 13218, with 4 plates 13036;
- 2 adjustable end stops 11213;
- 2 end stops 11213N;
- Synchronisation parts;
- 1 Buly (bubble level);
- 2 guides 1103R.
Track to be ordered separately.
Associated track: 13108.
View productSynchronization kit
Synchronization kit for 2 doors of 80 Kg:
- 2 assembled driving pulleys
- Driving angle plate
- Fixing angle plate with spring
- Cable of Ø 1.5 mm. Length 10 m.
Synchronized kit
Kit for synchronized drive of 2 doors up to 40 kg each and 2.2 m opening:
- 4 rollers SAF40A with 4 plates 10036
- 2 end stops 11213N
- 2 damper closer M66 (at opening and at closing)
- Synchronisation elements
- 2 guides 1103
Ready to install kit. Only the track 11108 must be ordered separately.
View productSynchronized kit
Kit for synchronized drive of 2 doors up to 80 kg each and 2.2 m opening:
- 4 rollers SAF80A with 4 plates 10036
- 2 end stops 11213N
- 2 damper closer M66 (at opening and at closing)
- Synchronisation elements
- 2 guides 1103R
Ready to install kit. Only the track 11108 must be ordered separately.
View productThree-point lock set
Three-point lock set with key (for gates) including:
- 1 three-point key lock;
- 1 bolt kit;
- 1 keeper kit.
Delivered without handle.
View productTimer on the left side
Timer on the left side: The door stays opened until 60 seconds before closing (adjustable).
View productTimer on the right side
Timer on the right side: The door stays opened until 60 seconds before closing (adjustable).
View productTop fixing plate
Top fixing plate with tapped hole Ø M8. Length: 75 mm - width: 20 mm. For panels over 20 mm thickness
View productTop mounting hanger
TPE seal
TPE seal, sold by the metre. To be fixed on the vertical frame. Seals against noise and dust.
View productTrack
Track
- Aluminium track: 22 x 14 mm, drilled to Ø 3.5, every 220 mm, length, 1.50 m, weight, 1.11 kg/m.
Track
Track
Track
Track
Track
- Track in galvanized steel - L = 3 m (D = 15.5 / d = 10.5 / e = 2.5 / H = 16 / P = 6.5 / L = 60)
Track
- Track in galvanized steel - L = 3 m (D = 19 / d = 13 / e = 3 / H = 16 / P = 6.5 / L = 60)
Track
- Track in galvanized steel - L = 3 m (D = 15 / d = 11.5 / e = 1.8 / H = 14 / P = 6.5 / L = 56)
Track
- Track in galvanized steel - L = 3 m (D = 19 / d = 12 / e = 3.5 / H = 15 / P = 8.5 / L = 80)
Track
Track
- Galvanized steel track (sealing type) - L = 3 m (D = 19 / e = 3 / H = 60)
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
- White PVC track, mortising type - length: 2m. For upper and lower guidance
Track
- Brown PVC track, mortising type - length: 2m. For upper and lower guidance
Track
- White PVC track, mortising type - length: 3 m. For upper and lower guidance
Track
- Brown PVC track, mortising type - length: 3 m. For upper and lower guidance
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Reinforced, aluminium track: 32.4 x 30.5 mm, drilled every 0.44m, length, 2m, weight, 0.78 kg/m
View productTrack
Aluminium track: 32.4 x 30.5mm, drilled every 0.44m, length, 3m, weight, 0.67kg/m
View productTrack
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track – 1.85 m
Raw aluminium track, 26 x 25 mm, drilled and countersunk every 110 mm in length of 1.85 m.
View productTrack – 1.94 m
Raw aluminium single track, 1.94 m, pre-drilled for wall or ceiling mounting.
View productTrack – 1.94 m
Track – 2 m
Track – 2 m
Track – 2 m
Track – 2 m
- Anodized aluminium track, 37.4 x 28 mm cross-section drilled every 0.30 m, length = 2 m
Track – 2 m
- Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 2 m
Track – 2 m
Track – 2 m
Track – 2,5 m
Galvanized track: 2.50m long, thickness, 20/10, drilled every 0.50m with square holes, for square head screws, 6 x 6, height, 53 mm.
View productTrack – 2.5 m
- Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 2.5 m
Track – 3 m
- Anodized aluminium track, 37.4 x 28 mm cross-section drilled every 0.30 m, length = 3 m
Track – 3 m
- Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 3 m
Track – 3 m
Galvanised steel track, 62 x 55 mm cross-section, thickness = 2.5 mm Length = 3 m.
View productTrack – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3 m
Track – 3m
Track – 4 m
Track – 4 m
Anodized aluminium track, 37.4 x 28 mm cross-section drilled every 0.30 m, length = 4 m.
View productTrack – 4 m
Track – 4 m
HERCULE galvanised steel track, 75 x 80 mm cross-section. Thickness = 4.5 mm. Length = 4 m.
View productTrack – 4 m
Track – 4 m
Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 4 m.
View productTrack – 5 m
- Anodized aluminium track, 37.4 x 28 mm cross-section drilled every 0.30 m, length = 5 m
Track – 5 m
- Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 5 m
Track – 5 m
Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 5 m.
View productTrack – 5 m
White PVC track, mortising type - length: 5m. For upper and lower guidance.
View productTrack – 5 m
Brown PVC track, mortising type - length: 5m. For upper and lower guidance.
View productTrack – 6 m
Track – 6 m
- Anodized aluminium track, 37.4 x 28 mm cross-section drilled every 0.30 m, length = 6 m
Track – 6 m
- Anodized aluminium track, 33 x 27 mm cross-section drilled every 0.44 m. Length = 6 m
Track – 6 m
Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 6 m.
View productTrack – 6 m
Anodized aluminium track, 32.1 x 26.4 mm cross-section drilled every 0.44 m. Length = 6 m.
View productTrack – L = 1.55 m
Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 1.55 m
View productTrack – L = 1.85 m
- Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 1.85 m
Track – L = 4 m
- Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 4 m
Track connector
Track connector. For joining two tracks together. Especially used with synchronisation kits (RD-8).
View productTrack kit with integrated motorisation
Track kit with integrated motorisation – includes:
- 1 anodised aluminium track – cut to length;
- 1 stator (coils which generate a magnetic field);
- 1 carrier (mobile trolley equipped with magnets);
- 1 controller (motor control);
- hardware for fastening the track.
Track kit with integrated motorisation
Track kit with integrated motorisation – includes:
- 1 anodised aluminium track – cut to length;
- 1 stator (coils which generate a magnetic field);
- 1 carrier (mobile trolley equipped with magnets);
- 1 controller (motor control);
- hardware for fastening the track.
Track kit with integrated motorisation
Track kit with integrated motorisation – includes:
- 1 anodised aluminium track – cut to length;
- 1 stator (coils which generate a magnetic field);
- 1 carrier (mobile trolley equipped with magnets);
- 1 controller (motor control);
- hardware for fastening the track.
Track kit with integrated motorisation
Track kit with integrated motorisation – includes:
- 1 anodised aluminium track – cut to length;
- 1 stator (coils which generate a magnetic field);
- 1 carrier (mobile trolley equipped with magnets);
- 1 controller (motor control);
- hardware for fastening the track.
Track stop
Track stop with two anchoring points. Supplied with A2 stainless steel fasteners.
View productTrack stop
Track stop with two anchoring points. Supplied with A4 stainless steel fasteners.
View productTrack stop
Trolley
Trolley
Trolley
Trolley
Trolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 40 kg - track 5040
View productTrolley
- Trolley with 2 rollers - Delrin rollers and plain pin - Capacity/trolley 5 kg - track 3530
Trolley
Trolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 20 kg - track 5040
View productTrolley
Trolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 40 kg - track 6255
View productTrolley
- Car-directional trolley, entirely out of steel and assembled on balls bearings. Capacity/trolley 5 kg - track 3530
Trolley
- Car-directional trolley, entirely out of steel and assembled on balls bearings. Capacity/trolley 20 kg - track 5040
Trolley
Car-directional trolley, composed of ball bearings in moulded Nylon + glass fiber. Capacity/trolley 60 kg - track 6255
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings. Capacity/trolley 40 kg - track 6255
View productTrolley
- Trolley with 2 rollers - Delrin rollers and plain pin - Capacity/trolley 10 kg - track 3530
Trolley
- Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 80 kg - track 6255
Trolley
- Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Load : 160 kg - Profile 8570
Trolley
- Car-directional trolley, entirely out of steel and assembled on balls bearings - capacity/trolley 25 kg - track 3530
Trolley
Car-directional trolley, entirely out of steel and assembled on balls bearings - capacity/trolley 60 kg - track 5040.
View productTrolley
- Car-directional trolley composed of ball bearings in moulded Nylon + glass fiber - capacity/trolley 125kg - track 6255
Trolley
- Car-directional trolley, entirely out of steel and assembled on balls bearings-capacity/trolley 150 kg - track 6255
Trolley
- Car-directional trolley composed of ball bearings in moulded Nylon + glass fiber (Profile 8570 : load 250 kg)
Trolley
- Car-directional trolley, entirely out of steel and assembled on balls bearings ( Profile 8570 : load 300 Kg)
Trolley
Trolley
- Double trolley entirely out of steel and precision ball bearings (perfil 6255 : load 300 kg)
Trolley
Trolley
- Double trolley entirely out of steel and precision ball bearings (perfil : 8570 - Load 500 kg)
Trolley
- Double trolley with ring made up with ball bearings moulded in Nylon + glass fiber - Load 250 kg - Profile 6255
Trolley
- Double trolley with ring entirely out of steel and precision ball bearings - Load : 300 kg - Profile : 6255
Trolley
- Double trolley with ring made up with ball bearings moulded in Nylon + glass fiber. Load 300 kg - Profile 8570
Trolley
- Double trolley with ring entirely out of steel and precision ball bearings. Load : 500 Kg - Profile : 8570
Trolley
Trolley
- Drive trolley with Nylon rollers on plain pin - cable 45x20 maxi - capacity/trolley25 kg - track : 3530
Trolley
- Drive trolley with Nylon rollers on plain pin - Capacity/trolley 50 kg - track : 5040
Trolley
Trolley
- Trolley with oscillating support - Nylon rollers on plain pin - cable 45x20 maxi - Capacity/trolley 25 kg - track : 3530
Trolley
- Trolley with oscillating support - Nylon rollers on plain pin - cable 70 x 20 maxi - capacity/trolley 50 kg - track 5040
Trolley
Drive trolley with ball bearings rollers for cable Ø 10 to 25 maxi - capacity/trolley 15 kg - track 3530
View productTrolley
- Drive trolley with ball bearings rollers for cable Ø 10 to 25 maxi - capacity/trolley 20 kg - track 5040
Trolley
Trolley
- Trolley with oscillating support on ball bearings rollers for cable Ø 10 to 25 maxi - capacity/trolley 15 kg - track 3530
Trolley
- Trolley with oscillating support on ball bearings rollers for cable Ø 10 to 25 maxi - capacity/trolley : 20 kg - track 5040
Trolley
Trolley
Trolley
Trolley
Trolley
Trolley
Trolley with 2 rollers - Delrin rollers and plain pin - capacity/trolley 10 kg. Track 3530.
View productTrolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 40 kg - track 5040
View productTrolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Capacity/trolley 80 kg - track 6255
View productTrolley
Trolley with 2 rollers - Car-directional Nylon roller carriages, fitted on rings bronzes self-lubricating and stainless plain pins. Load 160 kg - Profile 8570
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings. Capacity/trolley 25 kg. Track 3530.
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings. Capacity/trolley 60 kg - track 5040
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings - Capacity/trolley 150 kg - track 6255
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings. Load : 300 kg - Profile 8570
View productTrolley
Car-directional trolley, entirely out of steel and assembled on balls bearings. Load : 400 kg - Profile 8570
View productTrolley
Car-directional trolley composed of ball bearings in moulded Nylon + glass fiber. Capacity/trolley 125 kg - track 6255
View productTrolley
Car-directional trolley composed of ball bearings in moulded Nylon + glass fiber. Load : 250 kg - Profile : 8570
View productTubular seal
Tubular seal – 10 m
Tubular seal, 5 mm in diameter, made of silicone with a pine base. For 5 x 3 mm groove. Length = 10 m.
View productTubular seal – 2.5 m
Tubular gasket, 5 mm diameter, made of silicone with fir base. For 5 x 3 mm groove. Length 2.50 m.
View productTwo-point bolt lock set
Two-point bolt lock set (for intermediate panels) including:
- 1 two-point bolt lock
- 1 handle (square-shaped, 7 mm)
- 1 bolt kit
- 1 keeper kit
Two-point bolt lock set
Two-point bolt lock set (for configurations with an odd number of panels on each side) including:
- 1 two-point bolt lock
- 1 handle (square-shaped, 7 mm)
- 1 bolt kit
- 1 keeper kit
U-plate
U-Plate
U-Plate
U-profile
U-profile
U-profile
Black PVC U-profile, 12x17, to be flush-mounted under the door. Improves door sliding performance. Suitable for guides 1103 and 1103R. Length: 1.10 m.
View productU-profile
Anodised aluminium U-profile, 37 x 24 mm (14 mm inside), for screwing to the wall, available in 6 m length - Profiles are available in primary aluminium (to be painted) upon request
View productU-profile
Anodised aluminium U-profile, 20 x 24 mm (14 mm inside), available in 3 m length
View productU-profile
Anodised aluminium U-profile, 20 x 24 mm (14 mm inside), available in 6 m length
View productU-profile – 1.50 m
U-profile – 2 m
U-profile – 2 m
U-profile – 3 m
U-profile – 3 m
U-profile – 3 m
U-profile – 4 m
U-profile – 4 m
U-profile – 5 m
U-profile – 5 m
U-profile – 6 m
U-profile – 6 m
U-profile – 6 m
U-profile – 6 m
U-profile – L = 3 m
U-profile – L = 6 m
Upper guiding wheel
Wall bracket for removable tracks
Wall bracket for removable tracks in a pocket door configuration. The bracket is fastened at the far end of the cassette and near the opening. Provides easy access to components found in the track (to replace rollers, etc.).
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 40 to 65 mm. For M16.5 screw and for track 9050.
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 30 to 105 mm. For M16.5 screw and for track 9050.
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 30 to 135 mm. For M16.5 screw and for track 9050.
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 33 to 90 mm. For M20 screw and for track 9060.
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 33 to 150 mm. For M20 screw and for track 9060.
View productWall fixing angle plate
Wall fixing angle plate. Adjustable from 35 to 60 mm. For M12.5 screw and for tracks 9030 and 9040.
View productWall fixing angle plate
- Wall fixing angle plate. Adjustable from 32 to 110 mm. For M12.5 screw and for tracks 9030 and 9040.
Wall fixing angle plate
- Wall fixing angle plate. Adjustable from 35 to 130 mm. For M12.5 screw and for tracks 9030 and 9040.
Wall fixing angle plate
- Wall fixing angle plate. Adjustable from 45 to 85 mm. For M21 screw and for track 9070
Wall-mounted bracket
Wall-mounted bracket
Wall-mounted bracket
Wall-mounted bracket
Welding jig
Welding jig
Welding jig for weld-type split-hinge (1514GJOSO, 1514GJSOL and 1514GJSOR).
View productWelding jig
Welding jig
Welding jig
Welding jig
Wheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 80 - "V" groove 20 mm width - Capacity/wheel: 200 kg.
2 per pack.
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 100 - "V" groove 20 mm width - Capacity/wheel: 200 kg
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 100 - "V" groove 20 mm width - Capacity/wheel: 400 kg
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 120 - "V" groove 20 mm width - Capacity/wheel: 225 kg
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 120 - "V" groove 20 mm width - Capacity/wheel: 500 kg
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 140 - "V" groove 20 mm width - Capacity/wheel: 250 kg
View productWheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 140 - "V" groove 20 mm width - Capacity/wheel: 550 kg
View productWheel
Steel wheels with external mounting brackets - Steel Wheel Ø 80 - Round groove Ø 16 - Capacity/wheel: 200 kg.
2 per pack.
View productWheel
Steel wheels with external mounting brackets - Steel Wheel Ø 100 - Round groove Ø 16 - Capacity/wheel: 200 kg.
2 per pack.
View productWheel
Steel wheels with external mounting brackets - Steel Wheel Ø 80 - Round groove Ø 21 - Capacity/wheel: 200 kg
View productWheel
Steel wheels with external mounting brackets - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 200 kg.
2 per pack.
View productWheel
Steel wheels with external mounting brackets - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 400 kg
View productWheel
- Steel wheels with external mounting brackets - Steel Wheel Ø 80 - "V" groove 20 mm width - Capacity/wheel: 200 kg
Wheel
- Steel wheels with external mounting brackets - Steel Wheel Ø 100 - "V" groove 20 mm width - Capacity/wheel: 200 kg
Wheel
- Steel wheels with external mounting brackets - Steel Wheel Ø 100 - "V" groove 21 mm width - Capacity/wheel: 400 kg
Wheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 80 - Round groove Ø 16 - Capacity/wheel: 200 kg.
2 per pack.
View productWheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 100 - Round groove Ø 16 - Capacity/wheel: 200 kg
Wheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 80 - Round groove Ø 21 - Capacity/wheel: 200 kg
View productWheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 200 kg
Wheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 400 kg
View productWheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 120 - Round groove Ø 21 - Capacity/wheel: 225 kg
Wheel
Steel wheels with internal mounting brackets - Steel Wheel Ø 120 - Round groove Ø 21 - Capacity/wheel: 500 kg.
2 per pack.
View productWheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 140 - Round groove Ø 21 - Capacity/wheel: 250 kg
Wheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 140 - Round groove Ø 21 - Capacity/wheel: 550 kg
Wheel
- Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 80 - Round groove Ø 16 - Capacity/wheel: 200 kg
Wheel
- Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 100 - Round groove Ø 16 - Capacity/wheel: 200 kg
Wheel
Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 80 - Round groove Ø 21 - Capacity/wheel: 200 kg
View productWheel
- Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 200 kg
Wheel
Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 100 - Round groove Ø 21 - Capacity/wheel: 400 kg
View productWheel
- Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 120 - Round groove Ø 21 - Capacity/wheel: 225 kg
Wheel
- Steel wheels for welding with plate, equipped with 1 seal ball bearing - Steel Wheel Ø 120 - Round groove Ø 21 - Capacity/wheel: 500 kg
Wheel
- Steel wheels with internal mounting brackets - Steel Wheel Ø 140 - Round groove Ø 16 - Capacity/wheel: 250 kg
Wheel with stainless steel internal plates
Wheel with stainless steel internal plates - Stainless steel wheels Ø100 - Round groove wheel Ø21 - Capacity/wheel = 400 Kg
View product
Wheel with stainless steel internal plates
Wheel with stainless steel internal plates - Stainless steel wheels Ø120 - Round groove wheel Ø21 - Capacity/wheel = 500 Kg
View productWired or radio-controlled motorisation for single 730 x 2040 mm timber door (without a switch)
Motorised cassette kit for single timber pocket door - 730 X 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productWired or radio-controlled motorisation for single 830 x 2040 mm timber door (without a switch)
Motorised cassette kit for single timber pocket door - 830 X 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productWired or radio-controlled motorisation for single 930 x 2040 mm timber door (without a switch)
Motorised cassette kit for single timber pocket door - 930 X 2040 door. Capacity/door: up to 80 kg. Thickness: up to 40 mm. See sales brochure.
View productWooden frame kit
Wooden door frame kit (finger-jointed limewood), predrilled and pre-routedfor easy installation and a neat finish. Compatible with openings up to 1500 mm wide and up to 2116 mm high.
View product
