TUBEL | Mantion

Capacity/door: 30 kg (edge-mounted) and 40 kg (face-mounted)
Track: Aluminium
Movement: Straight

System for cupboard doors.

Single or dual sliding system, ideal for a installing cupboards with very large openings.

Doors open and close smoothly and quietly thanks to hangers equipped with ball bearings.
The system cleverly adapts to panel thicknesses ranging from 16 to 40 mm.
It supports up to 3 panels.
Optional closer damper available.
2 types of hangers are available: face-mounted or edge-mounted.

EPD

* Number of cycles

* Fabrication

25 years guarantee

TUBEL - Image 1

TUBEL - Image 2

TUBEL - Image 3

TUBEL - Image 4

TUBEL - Image 1

TUBEL - Image 2

TUBEL - Image 3

TUBEL - Image 4

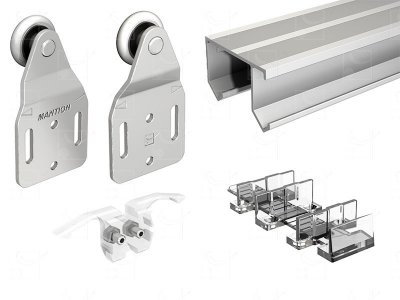

Set

Ref: TUB40-194
Set includes:
- 1 aluminium double track, length = 1.94 m;
- 1 TUB40-2 gear for 2 face-mounted panel;
- screws and installation instructions.
View product
Set

Ref: TUB40-300
Set includes:
- 1 aluminium double track, length = 3 m;
- 1 TUB40-2 gear for 2 face-mounted panels;
- screws and installation instructions.
View product
Set

Ref: TUB38-150
Set comprising :
- 2 TUB38 fittings,
- 1 track 38 drilled every 220 mm, L = 1.50 m
Capacity/door 38 kg.
View product
Produit

Ref: TUB28-150

View product
Produit

Ref: TUB28-200

View product

Track – 1.94 m

Ref: 30/194

Raw aluminium single track, 1.94 m, pre-drilled for wall or ceiling mounting.

View product
Track – 3 m

Ref: 30/300

Raw aluminium single track, 3 m, pre-drilled for wall or ceiling mounting.

View product

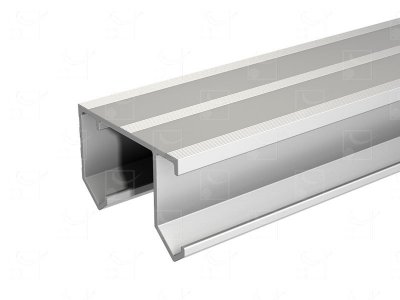

Track – 1.94 m

Ref: 40/194

Raw aluminium double track, 1.94 m, pre-drilled for ceiling mounting.

View product
Track – 3 m

Ref: 40/300

Raw aluminium double track, 3 m, pre-drilled for ceiling mounting.

View product
Track – 3 m

Ref: 13/300

Single, lacquered steel-track (length: 3m).

View product
Track

Ref: 19/300
- Single, aluminium track (length:3m)
View product

Gear

Ref: TUB30-1
Gear for 1 edge-mounted panel, includes:
- 2 edge-mounted hangers 0030;
- 2 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
View product
Gear

Ref: TUB40-2
Gear for 2 face-mounted panels, includes:
- 2 face-mounted hangers 0040-A;
- 2 face-mounted hangers 0040-B, mounted on ball-bearings;
- 4 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
View product
Gear

Ref: TUB40-3
Gear for third face-mounted panel, includes:
- 2 face-mounted hangers 0040-C;
- 1 positioner for the central panel;
- 2 end stops with panel position holding mechanism;
- 1 lower guide 1124;
- screws and installation instructions.
Used in addition to the TUB40 sets for a third panel.
View product
Produit

Ref: TUB28T

View product
Produit

Ref: TUB38T

View product
Produit

Ref: TUB28

View product
Produit

Ref: TUB28C

View product
Produit

Ref: TUB38

View product
Produit

Ref: TUB38C

View product

Hanger

Ref: 0030

Edge-mounted hangers for panels up to 30 kg.

View product
Hanger

Ref: 0040-A

Face-mounted hangers for panels up to 40 kg.

View product
Hanger

Ref: 0040-B

Face-mounted hangers for panels up to 40 kg.

View product
Hanger

Ref: 0040-C

Universal face-mounted hangers (A or B depending on set-up) for panels up to 40 kg.
Hangers not compatible with 30 track, for wall mounting.

View product

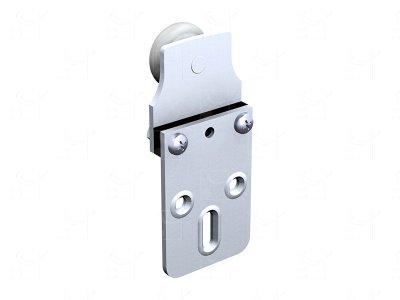

Side mounting hanger

Ref: 0028
- Side mounting hanger with roller cages
View product

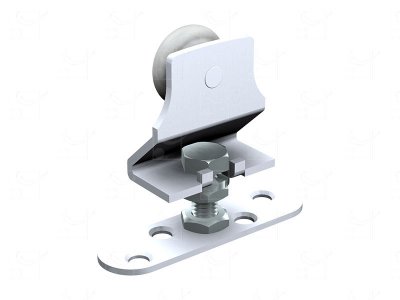

Top mounting hanger

Ref: 0028C
- Top mounting hanger with roller cages
View product

Guide

Ref: 1124

Universal adjustable lower guide (cut-to-length) in transparent polycarbonate for equipping two doors.
2 installation options:
- without grooves (1 guide on each side of the door);
- with 5 x 15 mm grooves.

View product

Mortising plate

Ref: 0022

Mortising plate for roller fixing.

View product
Kit of two stops

Ref: 1030

Kit for two end stops with panel position holding mechanism, delivered with fastening tool.

Not compatible with hanger 0030.

View product
Damper system

Ref: 66AFP20

Damper system enabling the panel to close softly.

Not compatible with hanger 0030.
