Steel cantilever gate - S version

Capacity: maximum opening of up to 10.5 m
Track: Steel
Movement: Straight

Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.


The sliding system for steel cantilever gates does not include a ground track.

The gate slides on two hangers fixed into a concrete element on the counter-balance side.

Whatever the open position of the gate, all the hanger rollers are in contact either with the top or bottom of the track to reduce the operating force.

Beam track onto which the gate frame is welded.

The gate can be installed on ground that has not been stabilised (soil, grass, gravel, etc.).

Less groundworks required – only needed for the concrete elements.

No ground beam required.

Operation unaffected by ice or snow.

Operation unaffected by soil compaction or subsidence.

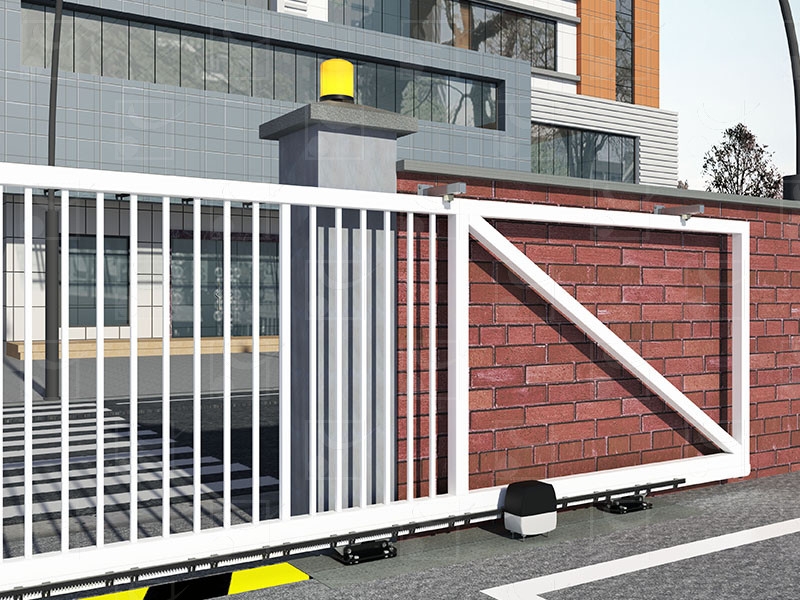

Steel cantilever gate – S version - Image 1 Steel cantilever gate – S version - Image 2 Steel cantilever gate – S version - Image 3

Choose your Tracks

11 product(s)

Choose your Hangers

6 product(s)
  • Hanger

    Hanger

    Ref: 9952S

    Hanger with steel wheels mounted on high-precision ball bearings. For track : 9050.

    2 per pack.

  • Hanger

    Hanger

    Ref: 9962S

    Hanger with steel wheels mounted on high-precision ball bearings. For track : 9060.

    2 per pack.

  • Hanger

    Hanger

    Ref: 9972S
    • Hanger with steel wheels mounted on high-precision ball bearings. For track : 9070
  • Hanger

    Hanger

    Ref: 9958S

    Hanger with steel wheels mounted on high-precision ball bearings. For track : 9050.

    2 per pack.

  • Hanger

    Hanger

    Ref: 9968S

    Hanger with steel wheels mounted on high-precision ball bearings. For track : 9060.

    2 per pack.

  • Hanger

    Hanger

    Ref: 9978S
    • Hanger with steel wheels mounted on high-precision ball bearings. For track : 9070

Choose your Kit

1 product(s)
  • Gear

    Gear

    Ref: 9050GPAF

    Special gear for 4-metre-long steel cantilever sliding gates weighing 400 kg.

    Gear includes:

    • 2 standard cantilever hangers 9952PAF;
    • 2 end brackets 1051G;
    • 2 lead-in guides 1050E;
    • 2 adjustable guides 1062.

Choose your Guide

3 product(s)

Choose your Accessories

3 product(s)
