CADETTE

CADETTE

Capacity/Door: 40 kg
Track: Galvanized Steel (2525F)/Aluminium (2526F)
Movement: Straight

Sliding system with adjustable rollers, for indoor or outdoor use.

  • The pendant bolt can be swivelled in any direction. This enables quick mounting and adjustment at any time
  • Silent and smooth running thanks to a nylon roller mounted on a self-lubricating ring.
  • Can be mounted with single or twinned tracks
EPD* Number of cycles* Fabrication25 years guarantee
CADETTE - Image 1 CADETTE - Image 2 CADETTE - Image 3 CADETTE - Image 4 CADETTE - Image 5

Choose your Complete sets

3 product(s)

Choose your Tracks

8 product(s)
  • Track - L = 1.55 m

    Track – L = 1.55 m

    Ref: 2525F/155

    Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 1.55 m

  • Track - L = 1.85 m

    Track – L = 1.85 m

    Ref: 2525F/185
    • Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 1.85 m
  • Track - L = 4 m

    Track – L = 4 m

    Ref: 2525F/400
    • Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 4 m

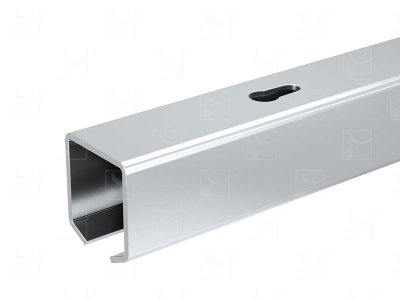

  • Track - 5 m

    Track – 5 m

    Ref: 2525F/500

    Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 5 m.

  • Track - 6 m

    Track – 6 m

    Ref: 2525F/600

    Galvanized steel track: 27 x 24.5 mm, drilled and countersunk every 110 mm. Length = 6 m.

  • Track - 1.85 m

    Track – 1.85 m

    Ref: 2526F/185

    Raw aluminium track, 26 x 25 mm, drilled and countersunk every 110 mm in length of 1.85 m.

  • Track - 2 m

    Track – 2 m

    Ref: 2525F/200

    Galvanised steel track, 27 x 24.5 mm, thickness = 1.5 mm, drilled and countersunk every 110 mm. Length = 2 m.

  • Track - 3 m

    Track – 3 m

    Ref: 2525F/300

    Galvanised steel track, 27 x 24.5 mm, thickness = 1.5 mm, drilled and countersunk every 110 mm. Length = 3 m.

Choose your Kit

1 product(s)

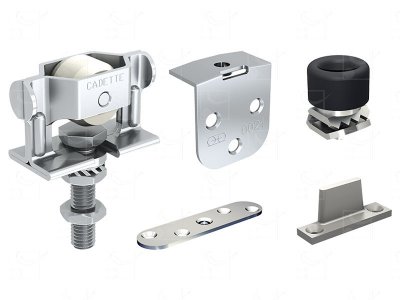

  • Gear

    Gear

    Ref: CADETT

    Gear including:
    - 2 hangers 0222 mounted on a RILSAN ring with plates 0026 et 0021
    - 2 end stops 1097
    - 1 guide 1103
    - 1 spanner 13, Screws and mounting instructions

Choose your Fixing plates

1 product(s)
  • Angle plate

    Angle plate

    Ref: 2528
    • Angle plate for wall-fixing of the track (MA40A), supplied with screws, nut and washer. Height = 17 mm - Length = 22 mm - Thickness = 18/10

Choose your Bottom guide

1 product(s)
  • Guide

    Guide

    Ref: 1103
    • Polyamide guide - Screwing type for channel of 6x18 mm.

Choose your Accessories

9 product(s)
  • Hanger

    Hanger

    Ref: 0222

    Hanger CADETTE mounted on a RILSAN ring, supplied with plates 0026 et 0021

  • Side fixing plate

    Side fixing plate

    Ref: 0021
    • Side fixing plate with tapped hole Ø M8, Height = 40 mm, width = 40 mm, For panels thicker than 20 mm
  • Top fixing plate

    Top fixing plate

    Ref: 0026

    Top fixing plate with tapped hole Ø M8. Length: 75 mm - width: 20 mm. For panels over 20 mm thickness

  • Side fxing plate

    Side fxing plate

    Ref: 0023

    Hanger. Length = 75 mm, width = 20 mm For panels of 16 mm and 19 mm thickness

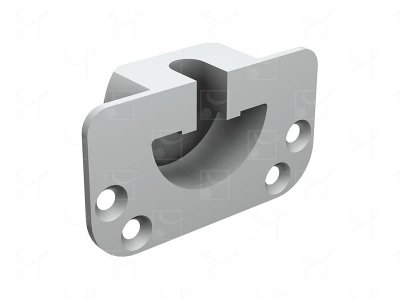

  • Mortising plate

    Mortising plate

    Ref: 0022

    Mortising plate for roller fixing.

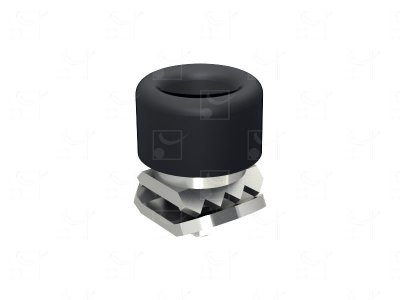

  • End stop

    End stop

    Ref: 1097
    • End stop for track 2525.
  • Angle plate

    Angle plate

    Ref: 2528D
    • Wall-fixing bracket for twinned tracks 2525 supplied with screws, nuts and washers.
      Height: 34 mm - Length: 47 mm - Thickness: 30/10e
  • Angle plate

    Angle plate

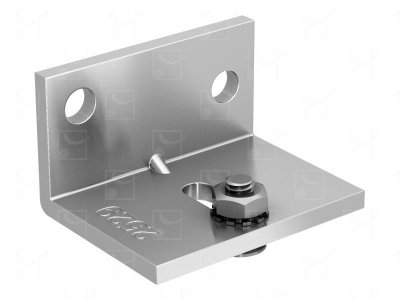

    Ref: 2529
    • Reinforced angle plate for wall fixing of track (MA80A), supplied with screws, nuts and washer. Height = 23 mm - Length = 30 mm - Thickness = 30/10
  • Bracket

    Bracket

    Ref: 2529-5

    Wall angle bracket for track 2525, screws, nuts and washers. Height : 23 mm. Length : 30 mm. Thickness : 30/10. Set of five.
