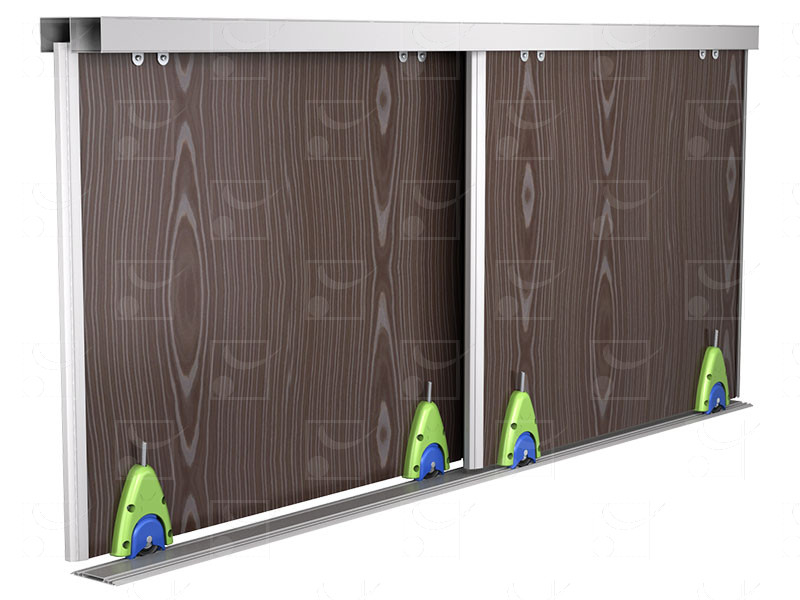

PICOSTAR 2

PICOSTAR 2

Capacity/Door: 55 kg
Track: Aluminium
Movement: Straight
Panel thickness: 12-19 mm

Top design range for the equipment of wardrobes and cupboards:

  • CLEVER : the upper track is reversible: one curved face, the other face allowing the fitting of the wood imitation adhesive band
  • INGENIOUS: suitable for panels from 12 to 19 mm thickness
  • SAFE: rollers with anti-derailment device
* Number of cycles* Fabrication
PICOSTAR 2 - Image 1 PICOSTAR 2 - Image 2 PICOSTAR 2 - Image 3

Choose your Complete sets

4 product(s)
  • Set - 2 m

    Set – 2 m

    Ref: 72/200A

    Set of natural anodised tracks in 2 m lengths for 2 panels:

    • 1 aluminium set of upper and lower tracks + housing in 2 m. length
    • 1 aluminium finishing profile 61T of 2 m. lenght
    • 4 PICO59 rollers and 4 PICO59 guides
    • Screws and mounting instructions
  • Set - 2m

    Set – 2m

    Ref: 72/200B

    Set of lacquered white (RAL 9016) finishing tracks in 2 m lengths for 2 panels:

    • 1 set of upper and lower tracks + housing in 2 m. length
    • 1 profile 61T of 2 m. lenght
    • 4 PICO59 rollers and 4 PICO59 guides
    • Screws and mounting instructions
  • Set - 3 m

    Set – 3 m

    Ref: 72/300A

    Set of natural anodised tracks in 3 m lengths for 3 panels:

    • 1 aluminium set of upper and lower tracks + housing in 3 m. length
    • 1 aluminium finishing profile 61T of 2 m. lenght
    • PICO59 rollers and 6 PICO59 guides
    • Screws and mounting instructions
  • Set - 3 m

    Set – 3 m

    Ref: 72/300B

    Set of lacquered white (RAL 9016) finishing tracks in 3 m lengths for 3 panels:

    • 1 set of upper and lower tracks + housing in 3 m. length
    • 1 profile 61T of 2 m. lenght
    • PICO59 rollers and 6 PICO59 guides
    • Screws and mounting instructions

Choose your Tracks

6 product(s)
  • Set of tracks - 2 m

    Set of tracks – 2 m

    Ref: 70/200A

    Set of aluminium tracks, anodized aluminium - L = 2 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).

  • Set of tracks - 2 m

    Set of tracks – 2 m

    Ref: 70/200B

    Set of aluminium tracks, white painted (9016 RAL) - L = 2 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).

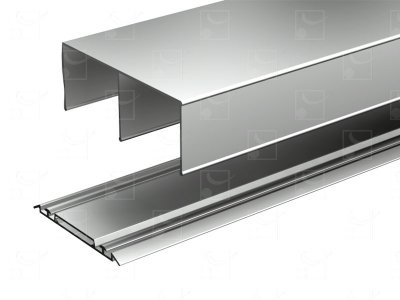

  • Set of tracks - 3 m

    Set of tracks – 3 m

    Ref: 70/300A

    Set of aluminium tracks, anodized aluminium - L = 3 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).

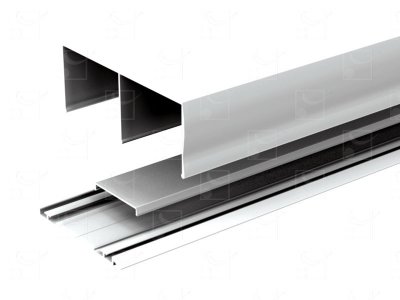

  • Set of tracks - 3 m

    Set of tracks – 3 m

    Ref: 70/300B

    Set of aluminium tracks, white painted (9016 RAL) - L = 3 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track).

  • Set of tracks

    Set of tracks

    Ref: 70/600A
    • Set of aluminium tracks, anodized aluminium - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)
  • Set of tracks

    Set of tracks

    Ref: 70/600B
    • Set of aluminium tracks, bronze colour - L = 6 m, including: 1 upper guiding track - 1 lower guiding track - 1 cover to hide fixing screws (to be clipped on the lower track)

Choose your Kit

1 product(s)
  • Gear PICO 59

    Gear PICO 59

    Ref: PICO59

    Gear for equiping 1 panel:

    • 2 rollers equipped with nylon rollers mounted on precision ball bearings
    • 2 guides equipped with nylon rollers mounted on precision ball bearings
    • Fixing screw and installation instructions

Choose your Profiles

2 product(s)

Choose your Handles

4 product(s)
  • Handle

    Handle

    Ref: 71G/280A

    Set of 2 anodized aluminium“drop” handles. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel)

  • Handle

    Handle

    Ref: 71G/280B

    Set of 2 anodized aluminium “drop” handles with lacquered white (RAL 9016) finishing. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel).

  • Handle

    Handle

    Ref: 71V/280A

    Set of 2 anodized aluminium“coma” handles. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel).

  • Handle

    Handle

    Ref: 71V/280B

    Set of 2 anodized aluminium“coma” handles with lacquered white (RAL 9016) finishing. Suiting for panels from 12 to19 mm thickness. - 2.8 m. length. Furnished with 6 snap-on bracket (3 on each side on the panel)

Choose your Dustproof brush

4 product(s)
  • Dustproof brush

    Dustproof brush

    Ref: 63A5/1200
    • Adhesive dustproof brush, short bristles (5 mm) - in lengths of 12 m - to put on the handle (shock absorber)
  • Dustproof brush

    Dustproof brush

    Ref: 63A15/1200
    • Adhesive dustproof brush, short bristles (15 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
  • Dustproof brush

    Dustproof brush

    Ref: 63A20/1200
    • Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors
  • Dustproof brush

    Dustproof brush

    Ref: 63A25/1200
    • Adhesive dustproof brush, short bristles (20 mm) - in lengths of 12 m - to put on the panel for the watertightness between the 2 doors

Choose your Accessories

2 product(s)
  • Damper

    Damper

    Ref: 66AFP3
    • Damper system allowing for soft closing of doors. Thanks to a catch pin fixed on the panel, the damper automatically travels to the closed position along with the door. Packaged in PET tube.
  • Fixing kit

    Fixing kit

    Ref: 66KSP
    • Fixing kit for attic enables an easy horizontal fixing of the upper track. For a 17 to 59° roof pitch.
