200 & 2200 series - Capacity door 150 KG

200 & 2200 series - Capacity door 150 KG

Capacity/Door: 150 kg
Track: 5040
Movement: Straight

Easy and long-lasting running.

  • Stable system : the hangers are designed to be constantly in contact with the track.
  • All hangers are electrolytically treated.
  • A complete range of hangers : straight or with swan-neck, with 2 wheels mounted on roller cages or 4 wheels mounted on ball bearings. Steel or Delrin wheels.
  • For special mounting : the fixing bolt is 70 mm longer than the normal version (L version).
* Number of cycles* Fabrication* 12 years guarantee
200 & 2200 series – Capacity door 150 KG - Image 1 200 & 2200 series – Capacity door 150 KG - Image 2 200 & 2200 series – Capacity door 150 KG - Image 3

Choose your Tracks

3 product(s)

Choose your Tracks and brackets

9 product(s)

Choose your Kit

4 product(s)
  • Gear

    Gear

    Ref: 5040GVP-4

    Gear for a door of max 150 kg and max 2 m opening, includes:

    • 2 edge-mounted hangers 0255A with 2 steel rollers mounted in a roller frame;
    • 2 plates for edge mounting 0056;
    • 7 box brackets 5041;
    • 1 joining bracket 5041MC;
    • 8 screw-in angle plates 5043;
    • 2 end caps 5050;
    • 1 screw-in lower guide 1092V25;
    • 2 stops 2091;
    • 1 handle 1298.

    Assembled WITHOUT a U-profile: double olive lower guide.

    Order separately: 2 tracks 5040/200.

  • Gear

    Gear

    Ref: 5040GVP-6

    Gear for a door of max 150 kg and max 3 m opening, includes:

    • 2 edge-mounted hangers 0255A with 2 steel rollers mounted in a roller frame;
    • 2 plates for edge mounting 0056;
    • 10 box brackets 5041;
    • 1 joining bracket 5041MC;
    • 11 screw-in angle plates 5043;
    • 2 end caps 5050;
    • 1 bottom guide 1092V25;
    • 2 stops 2091;
    • 1 handle 1298.

    Assembled WITHOUT a U-profile: double olive lower guide.

    Order separately: 2 tracks 5040/300.

  • Gear

    Gear

    Ref: 5040GVU-4

    Gear for a door of max 150 kg and max 2 m opening, includes:

    • 2 edge-mounted hangers 0255A with 2 steel rollers mounted in a roller frame;
    • 2 plates for edge mounting 0056;
    • 7 box brackets 5041;
    • 1 joining bracket 5041MC;
    • 8 screw-in angle plates 5043;
    • 2 end caps 5050;
    • 2 screw-in olive lower guides 1099;
    • 2 stops 2091;
    • 1 handle 1298.

    Assembled WITH a U-profile: single olive lower guide.

    Order separately: 2 tracks 5040/200 and 1 U profile 1110/200.

  • Gear

    Gear

    Ref: 5040GVU-6

    Gear for a door of max 150 kg and max 3 m opening, includes:

    • 2 edge-mounted hangers 0255A with 2 steel rollers mounted in a roller frame;
    • 2 plates for edge mounting 0056;
    • 10 box brackets 5041;
    • 1 joining bracket 5041MC;
    • 11 screw-in angle plates 5043;
    • 2 end caps 5050;
    • 2 screw-in olive lower guides 1099;
    • 2 stops 2091;
    • 1 handle 1298.

    Assembled WITH a U-profile: single olive lower guide.

    Order separately: 2 tracks 5040/300 and 1 U profile 1110/300.

Choose your Hangers and Accessories

13 product(s)
  • Hanger

    Hanger

    Ref: 0251A

    Hanger side-fixing, with 2 steel wheels mounted on roller cages. Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 0251D

    Hanger side-fixing with 2 Delrin wheels mounted on roller cages. Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

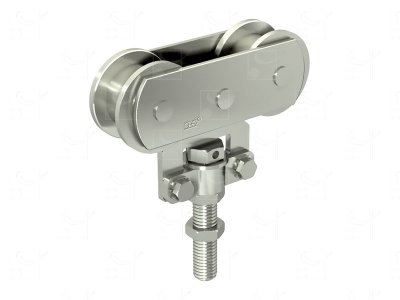

    Ref: 0255A

    Hanger top-fixing, with 2 steel wheels mounted on roller cages. Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

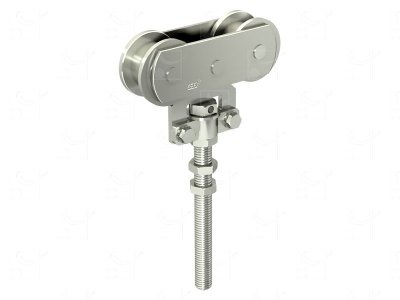

    Ref: 0255AL

    Hanger with long fixing bolt (118 mm). Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 0255D

    Hanger top fixing with fixing bolt and 2 Delrin wheels mounted on roller cages Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 0255DL

    Monture with long fixing bolt (118 mm). Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 2252

    Hanger with swan-neck, with 4 steel wheels mounted on ball bearings. Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 2255

    Hanger, top fixing, with 4 steel wheels mounted on ball bearings. Capacity per door: 150kg.

    2 per pack.

  • Hanger

    Hanger

    Ref: 2255L

    Hangerwith long fixing bolt (118 mm). Capacity per door: 150kg.

    2 per pack.

  • Side fixing plate

    Side fixing plate

    Ref: 0055
    • Welding plate, side-fixing Ø 13
  • Plate

    Plate

    Ref: 0056
    • Screwing type plate for top fixing, Ø M 12.
  • U-Plate

    U-Plate

    Ref: 0056W
    • Screwing «U» plate, for top fixing, Ø M 12.
  • Apron set

    Apron set

    Ref: 0051
    • Adjustable apron set for panels from 40 to 50 mm thickness - Capacity : 75 kg. Top fixing, screwing type

Choose your Fixing plates

5 product(s)

Choose your Profiles

3 product(s)

Choose your Bottom guide

1 product(s)
  • Guide

    Guide

    Ref: 1099
    • Guide with 1 brass olive on screw plate for 30 x 30 U-profile

Choose your Accessories

2 product(s)
