5300 | Mantion

Capacity/Pannel: 15 kg
Track: Aluminium
Movement: Folding/Sliding

Sliding system for openings and closets with double folding doors, wall or soffit fixing.

Easy and rapid to install : systems of retractable pivots in the upper part of the door and accurate adjustment in all directions.
Multiple combinations for wide openings (without any intermediate mullion).
Possibility to realize very tight panels for very wide openings (gain of space).

* Number of cycles

* Fabrication

Set

Ref: 5302-75
- Set including : 1 gear 5302, 1 track 5350, 0.75 m. length
View product
Set

Ref: 5302-100

Set including : 1 gear 5302, 1 track 5350, 1 m. length.

View product
Set

Ref: 5312-75
- Set including : 1 gear 5312, 1 track 5350, 0.75 m. length
View product
Set

Ref: 5312-100

Set including : 1 gear 5312, 1 track 5350, 1 m. length.

View product

Track

Ref: 5350/150
- Aluminium track: 22 x 14 mm, drilled to Ø 3.5, every 220 mm, length, 1.50 m, weight, 1.11 kg/m.
View product
Track

Ref: 5350/200

Aluminium track (length: 2m)

View product

Gear

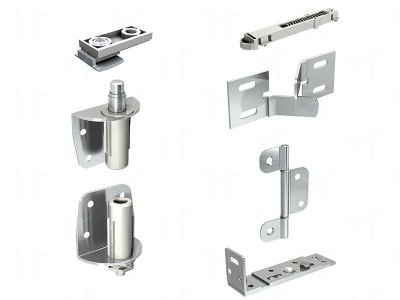

Ref: 5302
Gear including :
- 1 adjustable shoe;
- 1 slider;
- 2 retractable upper pivots, wall fixing;
- 1 lower pivot, wall fixing;
- 1 footstep bearing;
- 3 hinges 1504 C3;
- 1 door aligner 5330;
- 1 fitting tool and 1 spanner 8/13;
- Screws and mounting instructions.
View product
Gear

Ref: 5312
Gear for 2 panels without floor guidance, includes:
- 1 adjustable shoe;
- 1 slider;
- 2 retractable upper pivots, flush-mounted;
- 1 lower pivot, flush-mounted;
- 1 pivot bracket;
- 3 hinges 1504 C3;
- 1 door aligner 5330;
- 1 fitting tool and 1 size-13 spanner;
- screws and installation instructions.
View product
Gear

Ref: 5305
Gear including :
- 1 adjustable shoe;
- 1 slider;
- 3 retractable upper pivots, wall fixing;
- 1 lower pivot, wall fixing;
- 1 footstep bearing;
- 3 hinges 1504 C3;
- 1 guiding wheel Ø 14.5 mm;
- 1 fitting tool and 1 spanner 8/13;
- Screws and mounting instructions.
View product
Gear

Ref: 5315
Gear for 2 panels with floor guidance, includes:
- 1 adjustable shoe;
- 1 slider;
- 3 retractable upper pivots, flush-mounted;
- 1 lower pivot, flush-mounted;
- 1 pivot bracket;
- 3 hinges 1504 C3;
- 1 guiding roller, Ø 14.5 mm;
- 1 fitting tool and 1 size-13 spanner ;
- screws and installation instructions.
View product

Cam lock

Ref: 0941
- Cam lock with rod, for cupboards
View product

Door aligner

Ref: 5330

Door aligner, to align the panels in the closed position. One finger to be fixed on each panel.

Packing: 2 pieces.

View product
Hinge

Ref: 1504C3
- Top-fixing screwing hinge 80 x 45, Ø 4 mm axle
