OPENTEC FW75

OPENTEC FW75

Capacity/Panel: 75 kg
Panel thickness: 30 to 50 mm
Panel width: 400 to 1000 mm
Max opening dimensions: 12 x 4 m (6+6 panels)
Track: Aluminium
Movement: Folding

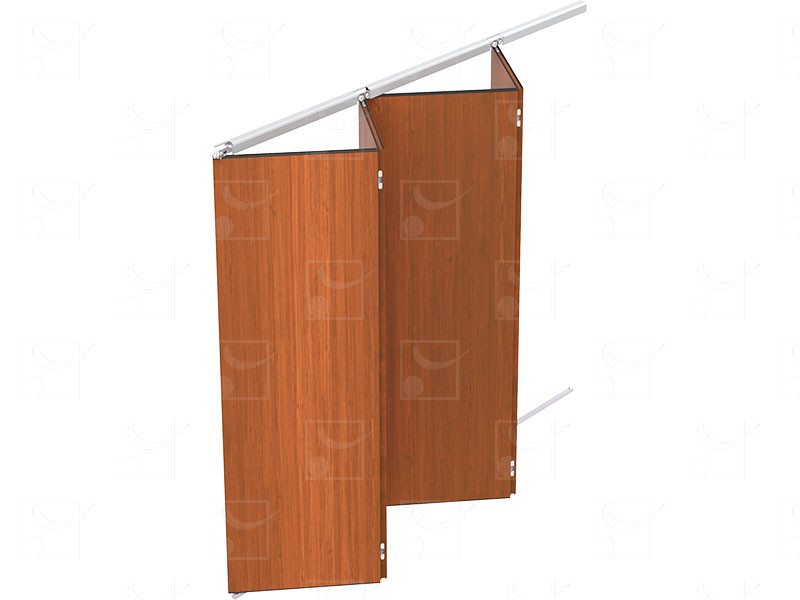

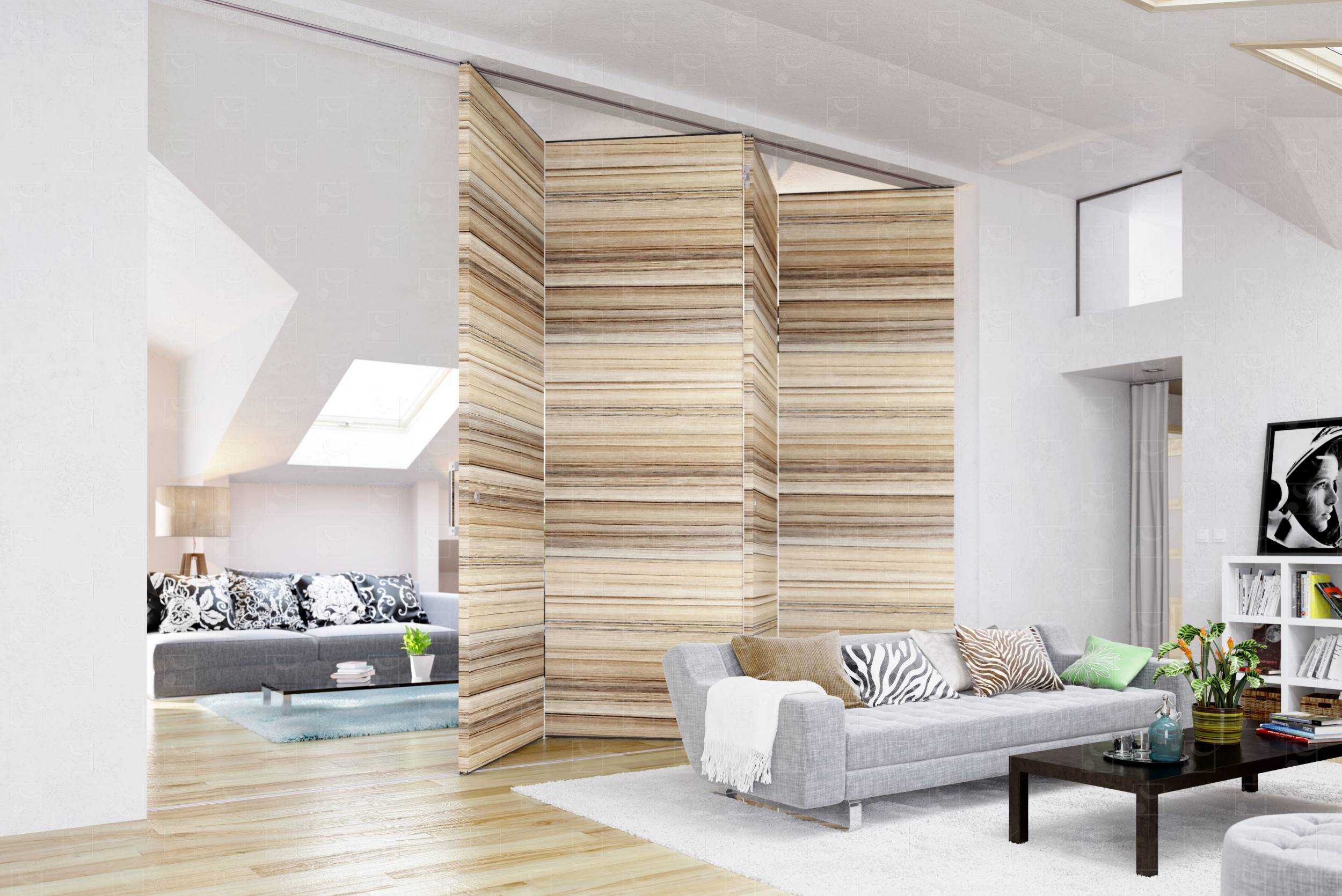

Folding system for wood panels. For panels of 30 to 50 mm thinckness. For inside use: restaurants, hotels, patios, bars, shopping centres, etc...

  • Easy to use: the partitions slide easily
  • Easy to install: convenient access to adjustment modules
  • Robust materials: anodised aluminium and stainless steel
  • Hangers equipped with nylon rollers for silent operation
  • High quality concealed hinges for a clean, sober look
  • 3 panels min.
EPD* Number of cycles* Fabrication* 12 years guarantee
OPENTEC FW75 - Image 1 OPENTEC FW75 - Image 2 OPENTEC FW75 - Image 3

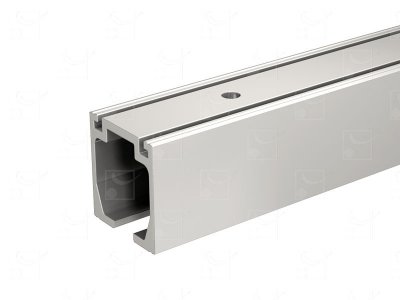

Choose your Tracks and brackets

4 product(s)

Choose your Pelmets and end caps

4 product(s)
  • Set of end caps

    Set of end caps

    Ref: GH10430EN

    Set of black raw plastic end caps for pelmets (GH10430P). End caps can be painted on request in your choice of RAL colour.

  • Set of pelmet mounts

    Set of pelmet mounts

    Ref: GH10430BP

    Set of 4 black plastic pelmet brackets (GH10430P). Fastened to track 10400A if track is wall-mounted.

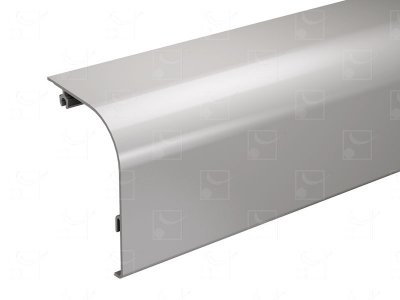

  • Aluminium pelmet - 6 m

    Aluminium pelmet – 6 m

    Ref: GH10430P

    Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 6 m. Pelmets can be painted on request in your choice of RAL colour.

  • Aluminium pelmet - 3 m

    Aluminium pelmet – 3 m

    Ref: GH10430P/3

    Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 3 m. Pelmets can be painted on request in your choice of RAL colour.

Choose your Hangers

1 product(s)
  • Hanger

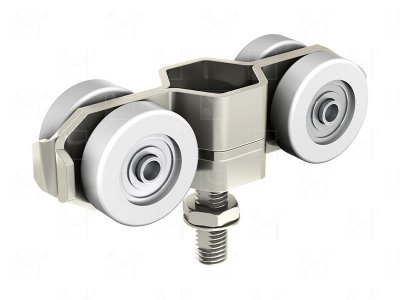

    Hanger

    Ref: 9542NC2

    Hanger with stainless steel reinforcement, equipped with 4 nylon-coated rollers mounted on ball bearings. Pin Ø = M10

Choose your Hinges

3 product(s)
  • Concealed hinge for heavy duty use
    New

    Concealed hinge for heavy duty use

    Ref: 1575

    Invisible" concealed hinge. The hinge is hidden inside the panel and does not protrude from its plane. Reinforced version (for intensive consumer use).

    • 3D adjustment: depth (X): ± 1 mm / vertical (Z): ± 2 mm / horizontal (Y): ± 1mm
  • Hinge

    Hinge

    Ref: 1510CXA2

    Stainless steel hinge (XA2), centred, fastened on edge. Pin Ø = 10 mm.

  • Drilling template
    New

    Drilling template

    Ref: 1575G

    Drilling template for 1540 and 1575 hinges.

    Supplied with 4 interchangeable plates to machine different depths.

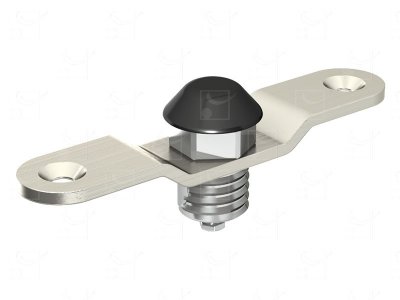

Choose your Bottom guide

6 product(s)

Choose your Dustproof brush

1 product(s)

Choose your Accessories

8 product(s)
