System for sliding shutters WIN-SLIDE: simple track | Mantion

Capacity per panel: 80 kg
Panel thickness: 20-40 mm
Panel types: Wood, Aluminium, PVC ...
Track: Aluminium
Movement: Straight

Download the product brochure

* Fabrication

* 12 years guarantee

System for sliding shutters WIN-SLIDE: simple track - Image 1

System for sliding shutters WIN-SLIDE: simple track - Image 2

System for sliding shutters WIN-SLIDE: simple track - Image 1

System for sliding shutters WIN-SLIDE: simple track - Image 2

Track

Ref: 11161/200
- Single aluminium angled (raw) track Length = 2 m
View product
Track

Ref: 11161/250
- Single aluminium angled (raw) track Length = 2,5 m
View product
Track

Ref: 11161/300
- Single aluminium angled (raw) track Length = 3 m
View product
Track

Ref: 11161/400
- Single aluminium angled (raw) track Length = 4 m
View product
Track

Ref: 11161/500
- Single aluminium angled (raw) track Length = 5 m
View product
Track

Ref: 11161/600
- Single aluminium angled (raw) track Length = 6 m
View product
Rail aluminium SAF – 1,55 m

Ref: 11108/155

Rail aluminium SAF80. Longueur de 1,55 m.

View product
Rail aluminium SAF – 1,95 m

Ref: 11108/195

Rail aluminium SAF80. Longueur de 1,95 m.

View product

Hanger

Ref: 11218HCX
- Hanger equipped with 4 rollers, pin mounted on ball bearings, M8 stainless steel screw - 80 Kg max./panel
View product
Plate

Ref: 0026XA2

A2 stainless steel plate to be screwed on edge. Panel thickness: 25 mm min.

View product
Plate

Ref: 0027XA2

A2 stainless steel bracketto be screwed on panel face (80 x 58 mm). Panel thickness: 28 to 36 mm.

View product
Stop

Ref: 11213XA2

Stopper wit stainless steel screw (adjustable force).

View product
Hanger

Ref: 11218HC

Hanger with ball bearings and nylon wheels.

View product

Pelmet

Ref: 11163/200
- Raw aluminium pelmet – Length = 2 m
View product
Pelmet – 2,5 m

Ref: 11163/250

Raw aluminium pelmet – Length = 2.5 m.

View product
Pelmet

Ref: 11163/300
- Raw aluminium pelmet – Length = 3 m
View product
Pelmet

Ref: 11163/400
- Raw aluminium pelmet - Length = 4 m
View product
Pelmet

Ref: 11163/500
- Raw aluminium pelmet – Length = 5 m
View product
Pelmet

Ref: 11163/600
- Raw aluminium pelmet – Length = 6 m
View product
Kit

Ref: 11165
- Set of end caps consisting of: - 2 aluminium caps for pelmet 11163 - 8 4.8x19 stainless steel screws - 2 clips 11169
View product

Return pulley

Ref: 10189
- Aluminium return pulley with plastic cover
View product
Angle plate

Ref: 10191
- Joining angle plate
View product

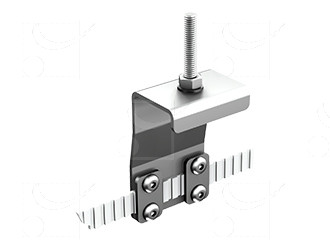

Point set

Ref: 11170

Stainless steel fixed point set.

View product

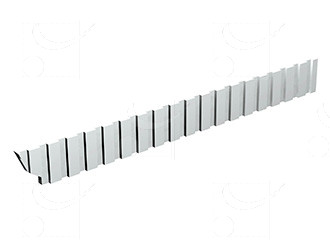

Reinforced cog belt

Ref: 10172/10
- Reinforced cog belt (Moulded notched). Length : 10 m
View product
Reinforced cog belt

Ref: 10172/15
- Reinforced cog belt (Moulded notched). Length : 15 m
View product
Reinforced cog belt

Ref: 10172/25
- Reinforced cog belt (Moulded notched). Length : 25 m
View product
Reinforced cog belt

Ref: 10172/250
- Reinforced cog belt (Moulded notched). Length : 2,5 m
View product
Reinforced cog belt

Ref: 10172/500
- Reinforced cog belt (Moulded notched). Length : 5 m
View product
Reinforced cog belt

Ref: 10172/750
- Reinforced cog belt (Moulded notched). Length : 7,5 m
View product
