200 & 2200 series - Capacity door 400 KG | Mantion

Capacity/Door: 400 kg
Track: 6255
Movement: Straight

2 types of tracks : thicknesses 20/10e et 25/10e.

Ingenious : thanks to its offset bracket, the 261 hanger enables the centred mounting of doors of different thicknesses.
The steel hangers with ball bearings (2265A) are suitable for fire doors.
For special mounting : the fixing bolt is 70 mm longer than the normal version (L version).

Download the installation instructions

* Number of cycles

* Fabrication

* 12 years guarantee

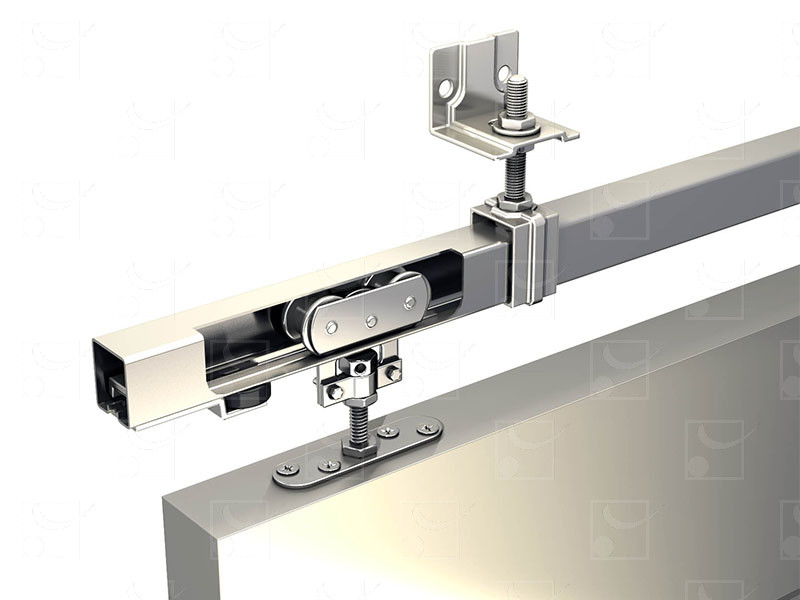

200 & 2200 series – Capacity door 400 KG - Image 1

200 & 2200 series – Capacity door 400 KG - Image 2

200 & 2200 series – Capacity door 400 KG - Image 3

200 & 2200 series – Capacity door 400 KG - Image 1

200 & 2200 series – Capacity door 400 KG - Image 2

200 & 2200 series – Capacity door 400 KG - Image 3

Ornamental

Ref: 6265
- Ornamental cap for end track
View product

Curve

Ref: 6255CB

Galvanized lower curve 62x55 R=800 mm.

View product
Curve

Ref: 6255CH

Galvanized upper curve 62x55 R=800 mm.

View product

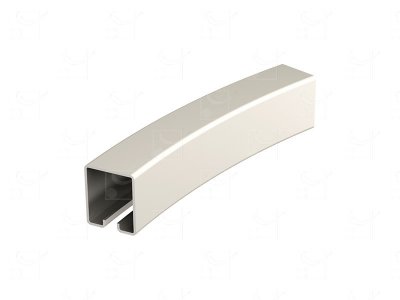

Curve sector

Ref: 6255CS

CURVE SECTORS - for 6255 track - R = 800 mm.

View product

Gear – Doors up to 300 Kg

Ref: 6255GV

Gear for doors up to 300 kg including:

- 2 hangers 0265 Side fixing equipped with 2 steel wheels mounted on roller cages
- 2 plates 0066 Top fixing
- 12 brackets 6256
- 1 jointing bracket 6256MC
- 13 angle plates 6258
- 2 ornemental caps 6265
- 2 bottom guides 1101
- 2 stops 2094
- 1 handle 1297

View product

Bottom guide

Ref: 1101
- Bottom guide with a brass olive, on a reinforced plate. Sealing type - For U-profile 30 x 30 mm
View product

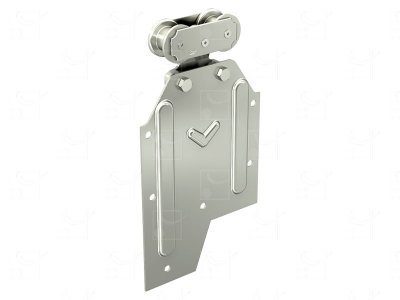

Hanger

Ref: 0261
- Hanger, top fixing, with wheels mounted on roller cages. Removable plate, which enables 2 different positions and an adaptation to 2 different panel thicknesses.
View product
Hanger

Ref: 0265

Hanger top fixing, with 2 steel wheels mounted on roller cages. Fixing bolt : 50 mm.

2 per pack.

View product
Hanger

Ref: 0265L

Hanger with long fixing bolt (120 mm).

2 per pack.

View product
Hanger

Ref: 0265D

Hanger top fixing, nylon wheels with glass fiber mounted on roller cages.

2 per pack.

View product
Hanger

Ref: 2262

Hanger with swanneck, 4 wheels with ball bearings, nylon tyre and glass fiber.

View product
Hanger

Ref: 2265

Hanger, top fixing, 4 wheels with ball bearings, nylon tyre and glass fiber.

2 per pack.

View product
Hanger

Ref: 2265L

Hanger with long fixing bolt (120 mm).

View product
Hanger

Ref: 2262A

Hanger, top fixing, 4 steel wheels with ball bearings.

View product
Hanger

Ref: 2265A

Hanger, side fixing, 4 steel wheels with ball bearings.

2 per pack.

View product
Hanger

Ref: 2265AL

Hanger with long fixing bolt (120 mm).

2 per pack.

View product
Side fixing plate

Ref: 0065
- Welding plate, side-fixing Ø 15
View product
Plate

Ref: 0066
- Plate, screwing type for top fixing, Ø M 14.
View product
Apron set

Ref: 0061
- Adjustable apron set for 55 to 65 mm panels
View product

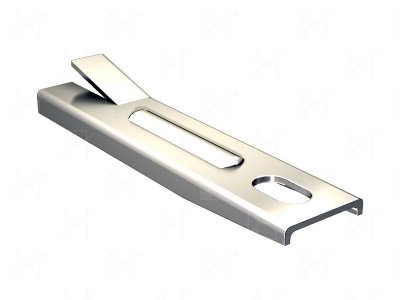

Fixing plate

Ref: 6257
- Fixing plate - Sealing type
View product
Fixing accessories

Ref: 6258
- Angle plate - Screwing type
View product
Plate

Ref: 6259

Plate - Ceiling fixing type.

View product
Adjustment plate

Ref: 6260
- Adjustment plate - Sealing type
View product
Plate

Ref: 6261
- Adjustment plate - Screwing type
View product
Bracket

Ref: 6262
- Fixing bracket for I-beam
View product
Angle plate

Ref: 6258L

Screw-in angle plate for track 6255.

View product

U-profile – 4 m

Ref: 1110/400

Galvanized U profile 30 x 30 mm - 4 m length.

View product
U-profile – 5 m

Ref: 1110/500

Galvanized U profile 30 x 30 mm - 5 m length.

View product
U-profile – L = 6 m

Ref: 1110/600
- Galvanized U profile 30 x 30 mm - 6 m length
View product

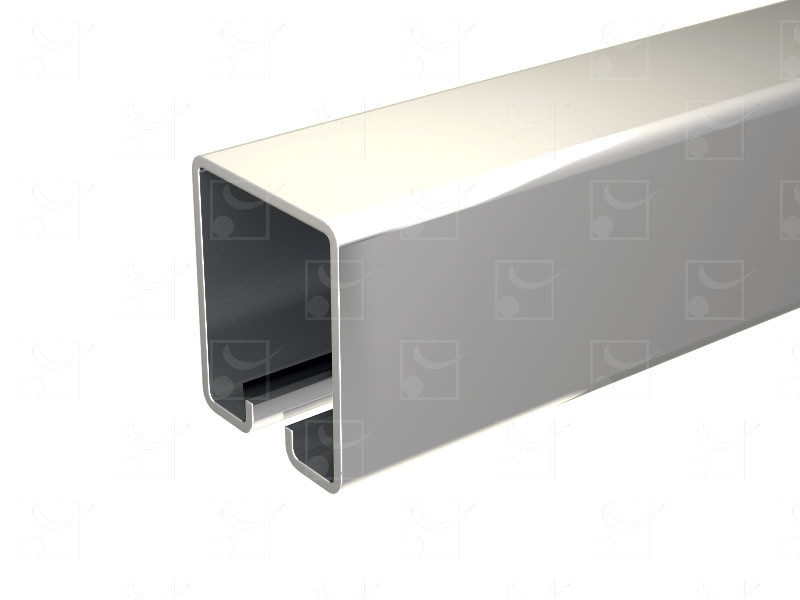

Track

Ref: 6255/400
- Galvanized track: 62 x 55 mm, thickness 25/10, length, 4m.
View product
Track

Ref: 6255/500
- Galvanized track: 62 x 55 mm, thickness 25/10, length, 5m
View product
Track

Ref: 6255/600
- Galvanized track: 62 x 55 mm, thickness 25/10, length, 6m
View product
Track

Ref: 6255GE/600
- Galvanized track: 62 x 55 mm, thickness 20/10, length, 6m
View product
Track – 4 m

Ref: 6255GE/400

Galvanised steel track, 62 x 55 mm cross-section. Length = 4m.

View product
Track – 3 m

Ref: 6255/300

Galvanised steel track, 62 x 55 mm cross-section, thickness = 2.5 mm Length = 3 m.

View product

Brackets

Ref: 6256
- Fixing bracket with normal rod
View product
Brackets

Ref: 6256L
- Fixing bracket with long rod
View product
Brackets

Ref: 6356
- Wall-fixing bracket
View product
Brackets

Ref: 6359
- Top-fixing bracket, screwing type
View product
Brackets

Ref: 6256M
- Jointing bracket
View product
Jointing bracket

Ref: 6256MC
- Jointing bracket with short rod
View product

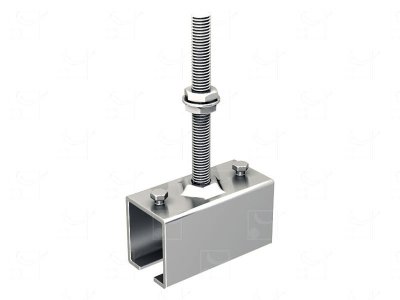

Brackets

Ref: 6256ML
- Jointing bracket with long rod
View product
Brackets

Ref: 6356M
- Wall-fixing bracket (can also be used as end bracket)
View product

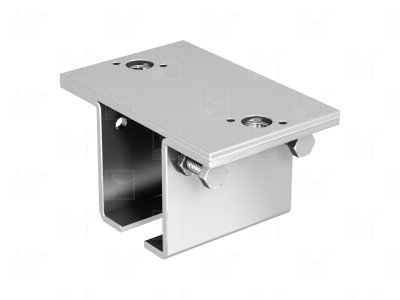

Brackets

Ref: 6359M
- Top-fixing bracket, screwing type (can also be used as end bracket)
View product
