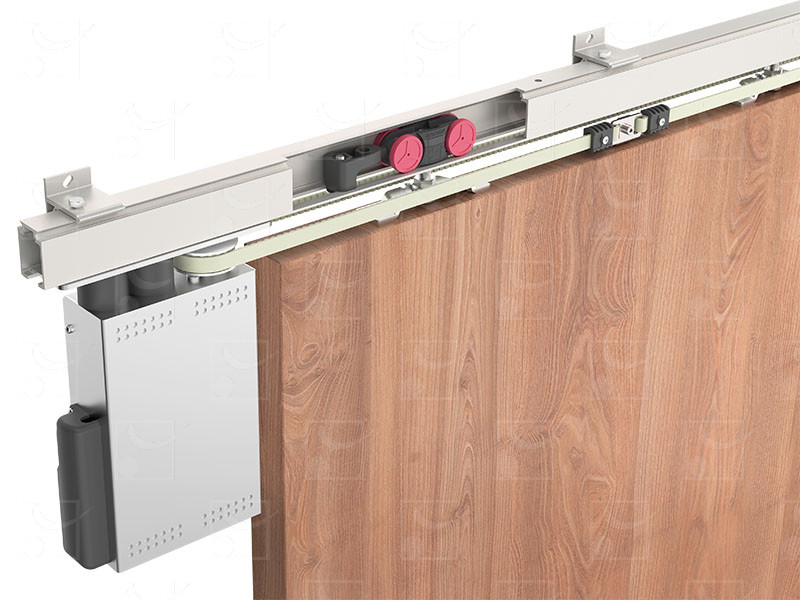

WIDOOR

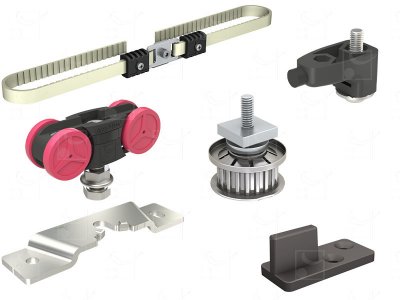

Kit for 1 single door (80 Kg max) and opening of 1.1 m. max including :

• 2 rollers SAF (with precision bearings) with 2 plates;
• synchronising elements with toothed belt (reinforced);
• 2 end stops;
• 1 lower guide.

Kit for 2 opposing doors (50 Kg max each) and opening of 2 m. max including :

• 4 rollers SAF (with precision bearings) with 2 plates;
• synchronising elements with toothed belt (reinforced) ;
• 4 end stops;
• 2 lower guides.

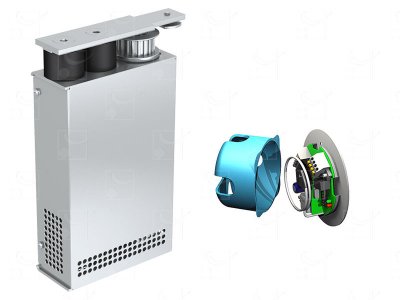

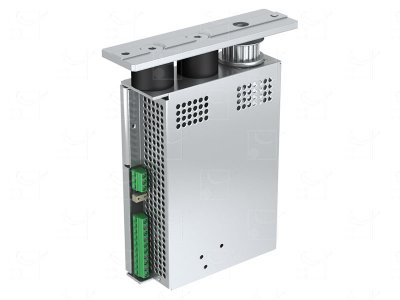

Motor WIDOOR INSIDE wired Kit (supply without control accessories). The control box is offset the motor (supply in a Ø68 mm dry box with a RJ cordset of 3 m.).

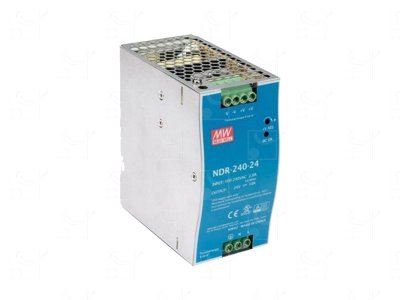

• Require a 24V power suplly (C0000260 or C0000290).
• Require control accessories: wired switch or radar.
• Mechanical elements (track and sliding kit) to order separately.

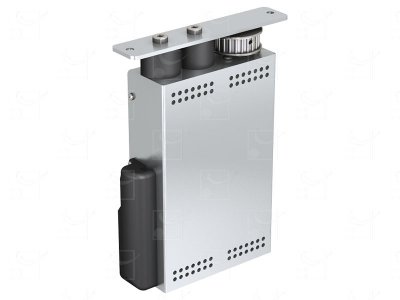

Motor WIDOOR INSIDE radio control 433.92 MHz kit (supply without control accessories). The control box is offset the motor (supply in a Ø68 mm dry box with a RJ cordset of 3 m).

• Require a 24V power suplly (C0000260 or C0000290).
• Require control accessories: wired switch or radar.
• Mechanical elements (track and sliding kit) to order separately.

Surface or flush-mounted electromagnetic holding lock for sliding doors.
Holding force : 60 kg
Supply voltage : 24V DC
Technology : break
Body dimensions : 80 x 41 x 25 mm
Plate dimensions : 70 x 33 x 9 mm

Surface-mounted electromagnetic holding lock for sliding doors.
Holding force : 180 kg
Supply voltage : 24V DC
Technology : break
Body dimensions : 170 x 42 x 21 mm
Plate dimensions : 130 x 33 x 9 mm

Flush-mounted electromagnetic holding lock for sliding doors.
Holding force : 180 Kg
Supply voltage : 24V DC
Technology : break
Body dimensions : 190 x 33 x 22 mm
Plate dimensions : 130 x 33 x 9 mm

Wired switch with 1 push-button.

Microwave motion detector, motion sensor, adjustable detection area and address recognition.
