OPENTEC FWF100 | Mantion

Capacity/Panel: 100 kg
Panel thickness: 68 to 100 mm
Max opening dimensions: 16.5 x 3.5 m (7+8 panels)
Track: Aluminium
Movement: Folding

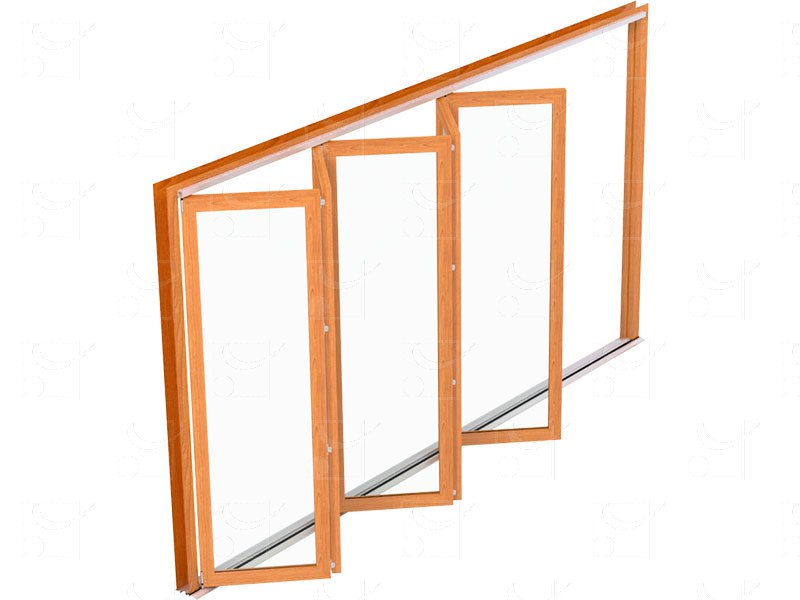

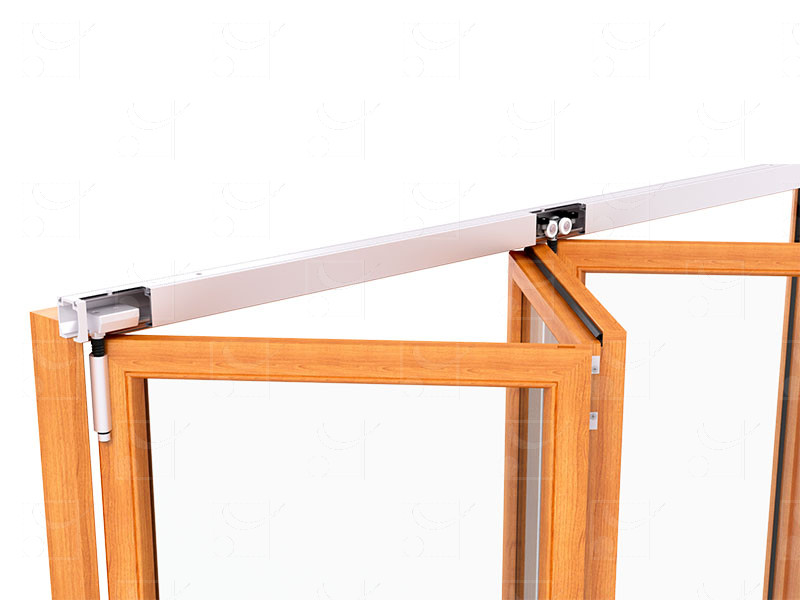

Folding system for wood-framed picture windows. For panels of 68 to 100 mm thinckness. For outside use: restaurants, bars, hotels, patios, villas, etc...

Folding system for creating a tightly sealed wood-framed picture window
Solution for the threshold: flush-mounted (PRM)
Choice of structural materials: anodised aluminium and stainless steel
2 and 3-point locking system suitable for the product
Standard plans for making tightly sealed leaves can be provided on request.
Convenient to use: picture window slides easily.
Thickness of Glass panels: 24 to 50 mm.
3 panels min.

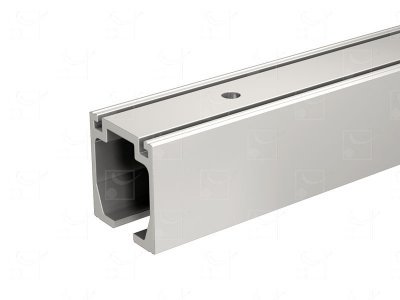

Anodised aluminium track – 6 m

Ref: 10400A/600

Anodised aluminium drilled track, 51.5 x 47.5 mm cross-section. Length = 6 m.

View product

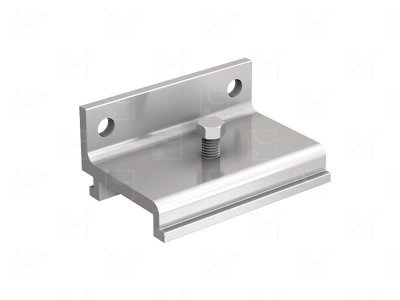

Angle bracket set

Ref: GH10430B

Set of 4 anodised aluminium angle brackets for mounting tracks on walls, 10400A.

View product

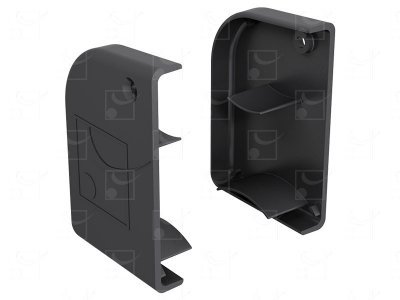

Set of end caps

Ref: GH10430EN

Set of black raw plastic end caps for pelmets (GH10430P). End caps can be painted on request in your choice of RAL colour.

View product

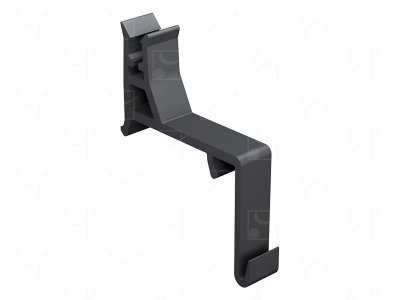

Set of pelmet mounts

Ref: GH10430BP

Set of 4 black plastic pelmet brackets (GH10430P). Fastened to track 10400A if track is wall-mounted.

View product

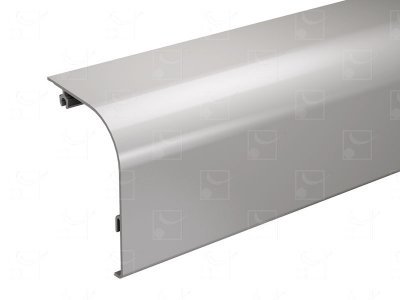

Aluminium pelmet – 6 m

Ref: GH10430P

Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 6 m. Pelmets can be painted on request in your choice of RAL colour.

View product
Aluminium pelmet – 3 m

Ref: GH10430P/3

Clip-on raw aluminium pelmet. For track 10400A. Used for wall mounting - Height = 78.5 mm - Length = 3 m. Pelmets can be painted on request in your choice of RAL colour.

View product

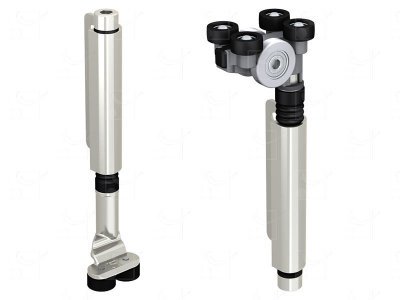

Left-side end hanger set

Ref: GH10430EHL

Left-side end hanger set including:
- 1 left-side end hanger
- 1 lower end-guide

View product

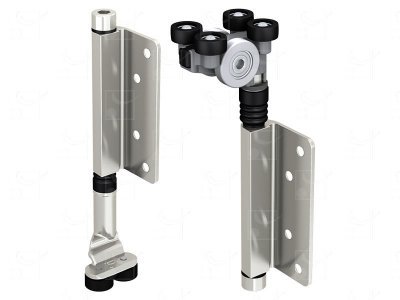

Right-side end hanger set

Ref: GH10430EHR

Right-side end hanger set including:
- 1 right-side end hanger
- 1 lower end-guide

View product

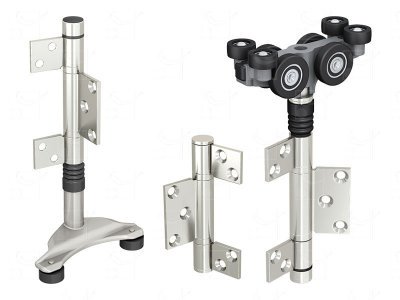

Intermediate hanger set

Ref: GH10430IH

Intermediate hanger set including:
- 1 intermediate hanger
- 1 lower intermediate guide
- 1 stainless steel (XA2) hinge (1510CXA2)

View product

Hinge

Ref: 1510CXA2

Stainless steel hinge (XA2), centred, fastened on edge. Pin Ø = 10 mm.

View product
Hinge

Ref: 1510DPXA2

Stainless steel hinge (XA2), offset, fastened on edge (with handle). Pin Ø = 10 mm.

View product
Hinge

Ref: 1510DXA2

Stainless steel hinge (XA2), offset, fastened on edge. Pin Ø = 10 mm.

View product
Set of hinges

Ref: GH10430H

Set of 3 stainless steel hinges (XA2), centred, fastened on edge. Pin Ø = 10 mm.

View product
Set of hinges

Ref: GH10430HOH

Set of 3 stainless steel hinges (XA2), offset, fastened on edge (with handle). Pin Ø = 10 mm.

View product
Set of hinges

Ref: GH10430HO

Set of 3 stainless steel hinges (XA2), offset, fastened on edge. Pin Ø = 10 mm.

View product

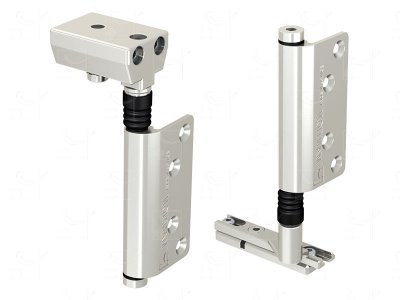

Left-side fixed point set

Ref: GH10430PL

Left-side fixed point set including:
- 1 upper fixed point
- 1 lower split-hinge

View product

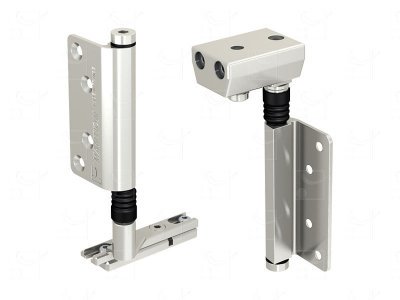

Right-side fixed point set

Ref: GH10430PR

Right-side fixed point set including:
- 1 upper fixed point
- 1 lower split-hinge

View product

Dustproof seal

Ref: GH10430DC

Dustproof seal to be clipped on threshold. Length = 6 m.

View product
Dustproof seal

Ref: GH10430DC/3

Dustproof seal to be clipped on threshold. Length = 6 m.

View product
Anodised aluminium profile – 6 m

Ref: GH10430R

Flush-mounted anodised aluminium lower profile, for threshold. Length = 6 m.

View product
Anodised aluminium profile – 3 m

Ref: GH10430R/3

Flush-mounted anodised aluminium lower profile, for threshold. Length = 3 m.

View product
Seal

Ref: GHMIN603

Black plastic threshold seal. Fastened onto the threshold for better sealing. 10 mm. Sold by the metre.

View product
Door jamb – L = 6 m

Ref: GHPG16

PRM (persons with reduced mobility) door jamb with threshold seal. Length = 6 m.

View product
Door jamb – L = 3 m

Ref: GHPG16/3

PRM (persons with reduced mobility) door jamb with threshold seal. Length = 3 m.

View product

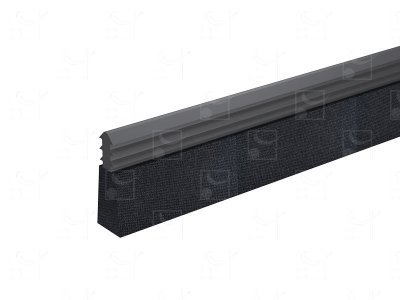

Brush seal

Ref: GH10XL

Brush seal under panels. Sold by the metre. Height = 10 mm

View product

Two-point bolt lock set

Ref: GH10430BO

Two-point bolt lock set (for intermediate panels) including:
- 1 two-point bolt lock
- 1 handle (square-shaped, 7 mm)
- 1 bolt kit
- 1 keeper kit

View product
Two-point bolt lock set

Ref: GH10430BO-01

Two-point bolt lock set (for configurations with an odd number of panels on each side) including:
- 1 two-point bolt lock
- 1 handle (square-shaped, 7 mm)
- 1 bolt kit
- 1 keeper kit

View product
Kit with two rods – For panels < 3 m high

Ref: GH10430KL-01

Kit with two bolt-type stainless steel rods. For panels under 3 m high.

View product
Kit with two rods – For panels > 3 m high

Ref: GH10430KL-02

Kit with two bolt-type stainless steel rods. For panels over 3 m high.

View product

Three-point lock set

Ref: GH10430KL
Three-point lock set with key (for gates) including:
- 1 three-point key lock;
- 1 bolt kit;
- 1 keeper kit.
Delivered without handle.
View product

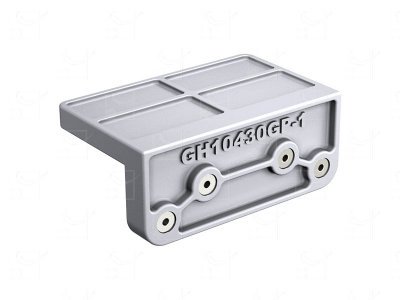

Drilling jig for hinges

Ref: GH10430GP-1

Drilling jig for hinges, fixed points and end hangers.

View product

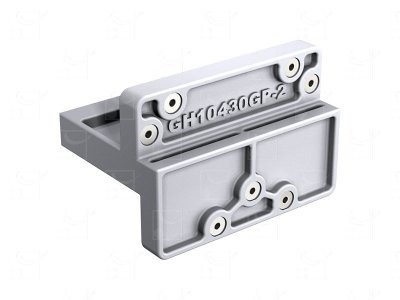

Drilling jig for hinges

Ref: GH10430GP-2

Drilling jig for 1510DXA2 hinges.

View product

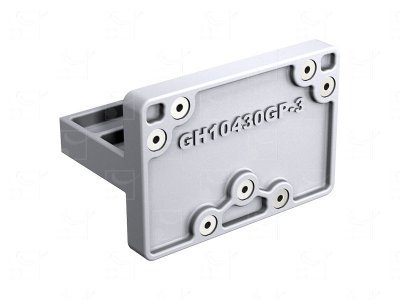

Drilling jig for hinges

Ref: GH10430GP-3

Drilling jig for 1510CXA2 hinges.

View product
Magnet kit

Ref: GHLK-01

Screw-type male/female magnet kit Enables doors to be held in the open position. Thickness = 26 mm. Ø = 30 mm. RAL 7016.

View product
Magnet kit

Ref: GHLK-02

Screw-type male/female magnet kit Enables doors to be held in the open position. Thickness = 60 mm. Ø = 30 mm. RAL 7016.

View product

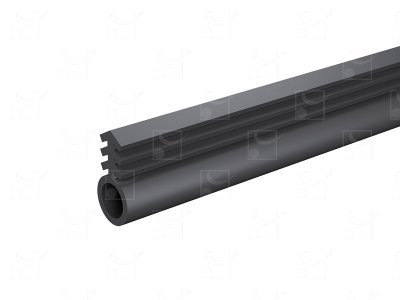

Tubular seal

Ref: GHT05

Tubular seal for half-panels. Ø = 5 mm.

View product
Drilling jib

Ref: GJ10530GS-6

Drilling jib for threshold seal.

View product
TPE seal

Ref: GHEU30L

TPE seal, sold by the metre. To be fixed on the vertical frame. Seals against noise and dust.

View product
