SYCOMM SOLAR - Solar motorisation for sliding shutters

Solar motorisation for sliding shutters for the range Win-Slide 2.

Capacity total: 200 kg
Panel thickness: 25 - 80 mm

Simple, reliable and quick to install!

No need to connect to the mains supply
Plug & Play : connect components using simple connectors (motor / solar panel / battery)
Self Sufficient: Up to 30 days of autonomy without external power
Can be integrated with standard home automation systems
Capacity of 1 to 4 panels with total weight of 200kgs max
Integrated brushless technology

Designed and Manufactured by Mantion!

Sycomm® Solar motorization
Supply voltage: 12V DC
Max power: 25 W
Dimensions (L x W x H): 150 x 50 x 73 mm
Degree of protection: IP55
Type of limit switch: Dynamique (stop on obstacle)
Motor technology: Brushless
Linear speed: 60mm/s
Operating temperature: -20 à +60°C
Radio frequency: 433.92 MHz
Motor cable length: 30 cm (optional 3m extension)

General data:
Soft start and stop - Obstacle detection

Complies with CE requirements as per:
EN60335-1:2013 ; EN60335-2-103:2004+A11:2009 ; NFP26341
EN61000-6-1:2007 ; EN61000-6-2:2006 ; EN61000-6-3:2007 ; EN61000-6-
4:2007 ; NF 26-341

Complies with European directives:
2006/95/CE ; 2006/42/CE ; 2004/108/CE ; 1999/5/CE ; 2002/95/CE

NB: The values in the tables are given for information only, they depend on specific conditions and do not constitute a firm commitment on the part of Mantion. Motor designed for domestic use and installation under a fascia panel.

Download the product brochure

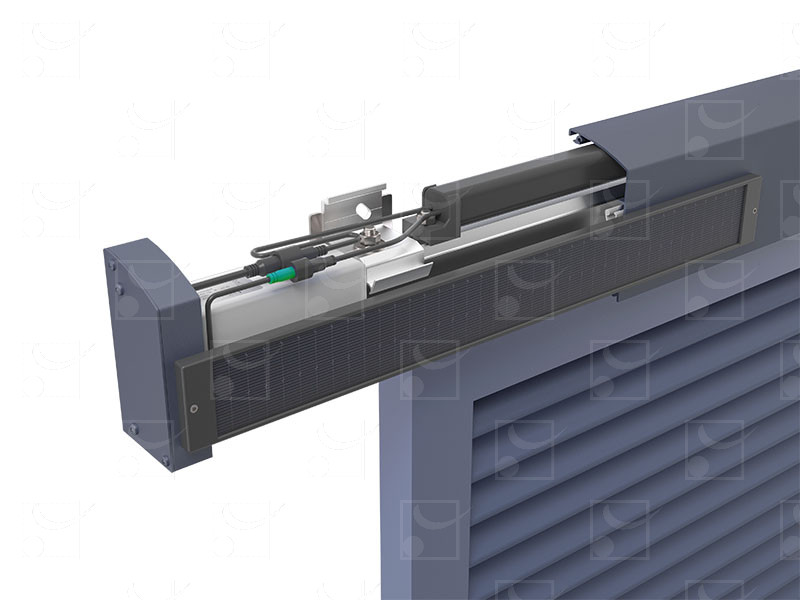

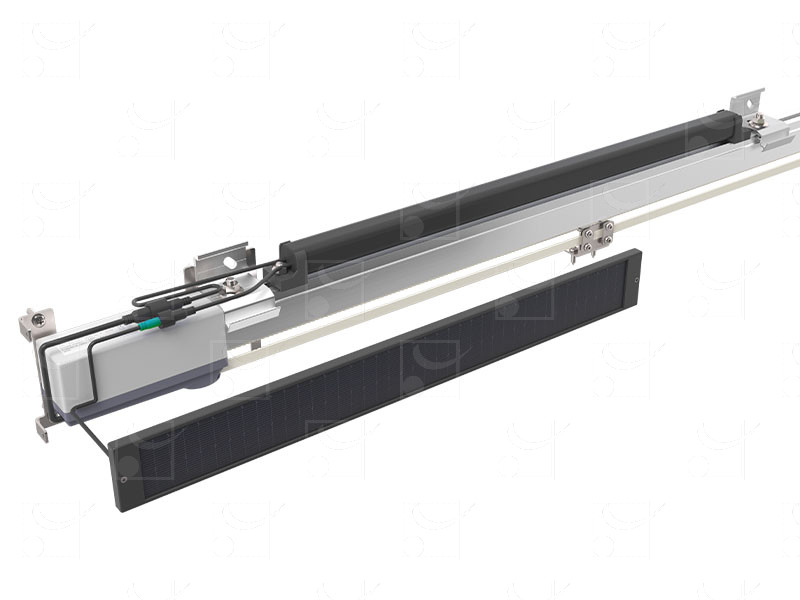

SYCOMM SOLAR – Solar motorisation for sliding shutters - Image 1

SYCOMM SOLAR – Solar motorisation for sliding shutters - Image 2

SYCOMM SOLAR – Solar motorisation for sliding shutters - Image 3

SYCOMM SOLAR – Solar motorisation for sliding shutters - Image 4

Mounting Win-Slide 2

Ref: 11280LXA2

Mounting with 4 rollers, ball-bearing axles, M8
A2 stainless steel screws (93 mm).
80 kg max. / panel.

View product
Mounting Win-Slide 2

Ref: 11282LXA4

Mounting with 4 rollers, ball-bearing axles, M8
A4 stainless steel screws (93 mm).
Max. 120 kg / panel.

View product

Plate

Ref: 0026XA2

A2 stainless steel plate to be screwed on edge. Panel thickness: 25 mm min.

View product
Brackets

Ref: 0026XA4

A4 stainless steel bracket to be screwed on panel face (80 x 58mm).

Panel thickness : 28 to 36mm.

View product

Track stop

Ref: 11286XA2

Track stop with two anchoring points. Supplied with A2 stainless steel fasteners.

View product

Raw aluminium track Win-Slide 2 – 6 m

Ref: 11208P/600

Raw aluminium track, section 39 x 36 mm, drilled every 450 mm.
Length = 6 m.

View product
Raw aluminium track – 6 m

Ref: 11208/600

Raw aluminium track, 39 x 36 mm cross-section. L = 6 m.

View product
Aluminium mounting bracket

Ref: 11293

Adjustable, single, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.

View product
Aluminium mounting bracket

Ref: 11293D

Adjustable, double, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.

View product

Raw aluminium pelmet Win-Slide 2 – 6 m

Ref: 11261/600

Raw aluminium pelmet.
Length = 6 m.

View product
Aluminium pelmet – 6 m

Ref: 11263L/600

Raw aluminium pelmet. L = 6 m.

View product
Set of pelmet end caps

Ref: 11266M

DItto for motorised shutters; contains an extra bracket for the end cap on the motor side.

View product
Aluminium pelmet – 6 m

Ref: 11264L/600

Raw aluminium pelmet. Length = 6 m.

*other lenghts available on request

View product
Set of pelmet end caps

Ref: 11267M

Ditto for motorised shutters; contains an extra bracket for the end cap on the motor side.

View product
Set of aluminium clamps

Ref: 11269

Set of 5 anodised aluminium clamps for fastening pelmets onto brackets.

View product

Set of 5 anodised aluminium brackets Win-Slide 2

Ref: 11294A

Set of 5 anodised aluminium brackets. For mounting banner 11261. Supplied with A4 stainless steel screws.
Fixes every 450 mm.

View product

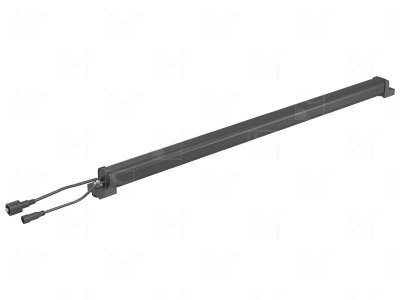

Solar battery pack

Ref: K0001620

Solar battery pack, supplied with two fixing kits (one to be fixed on the wall + one to be fixed on the 11208 track).
Guarantee 5 years.

View product

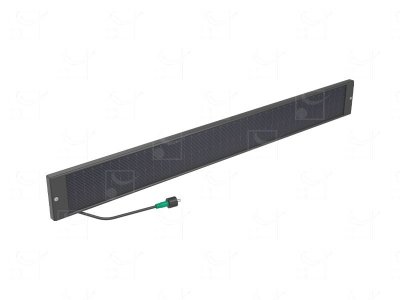

Solar panel pack

Ref: K0001630

Solar panel, supplied with screws for direct mounting on the fascia panel + one adjustable wall mounting kit.
Guarantee 5 years.

View product

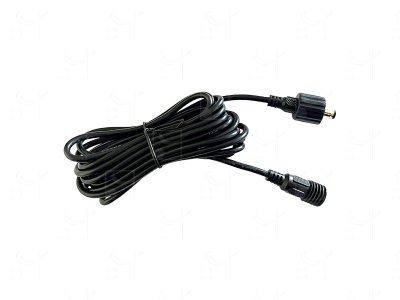

3 m extension lead

Ref: C0014340

3 m extension lead from solar motor to battery.

View product

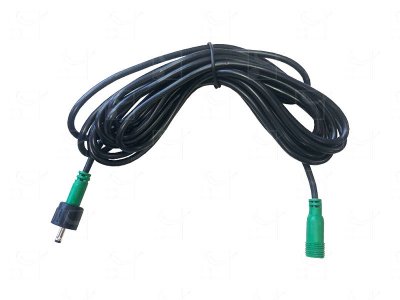

3 m extension lead

Ref: C0014350

3 m extension lead from solar panel to battery.

View product

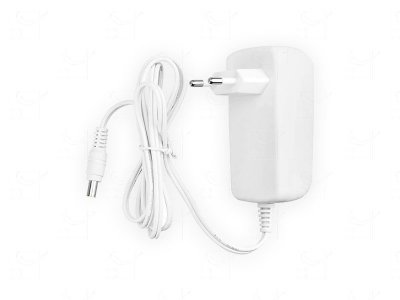

Charger 230V

Ref: C0014360

230V DC/12V charger for the solar battery.

View product

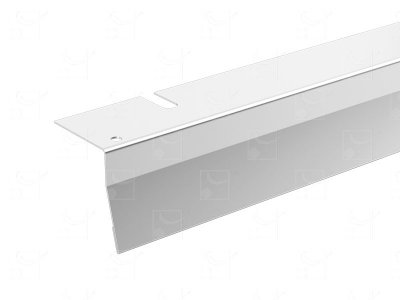

Battery cover housing

Ref: C0014430

Re-cuttable battery cover housing electrogalvanised steel (to be painted). Fits under the lintel using the battery pack supports.
Length = 1250 mm.

View product

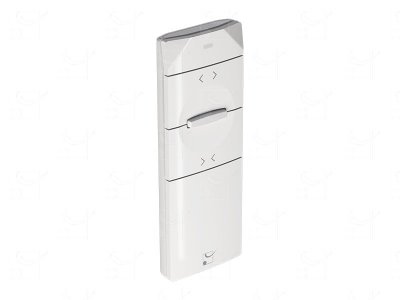

White radio remote control

Ref: C0014200

433.92 MHz radio remote control.
White colour - RAL 9016
Guarantee 5 years.

View product

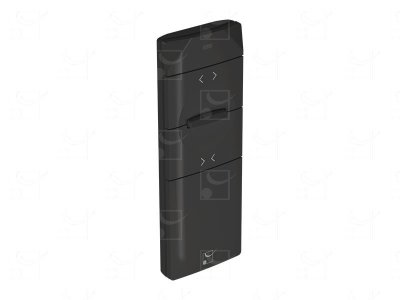

Black radio remote control

Ref: C0014200N

433.92 MHz radio remote control.
Black colour - RAL 9005
Guarantee 5 years.

View product

Moulded notched

Ref: 10172
- Polyurethane drive belt reinforced (Moulded notched)
View product
Reinforced cog belt

Ref: 10172/10
- Reinforced cog belt (Moulded notched). Length : 10 m
View product
Reinforced cog belt

Ref: 10172/15
- Reinforced cog belt (Moulded notched). Length : 15 m
View product
Reinforced cog belt

Ref: 10172/25
- Reinforced cog belt (Moulded notched). Length : 25 m
View product
Reinforced cog belt

Ref: 10172/250
- Reinforced cog belt (Moulded notched). Length : 2,5 m
View product
Reinforced cog belt

Ref: 10172/500
- Reinforced cog belt (Moulded notched). Length : 5 m
View product
Reinforced cog belt

Ref: 10172/750
- Reinforced cog belt (Moulded notched). Length : 7,5 m
View product

Solar motorisation kit with radio control

Ref: W0002540
Solar motorisation kit (12V DC power supply), with radio control comprising:
- 1 SYCOMM Solar motor (on-board electronics)
- 1 C0014200 radio remote control
- 1 solar panel
- 1 5100 mAh battery
Guarantee 5 years

Sycomm with position-holding brake: the shutter is held in position: Holding force ~30 kg
View product

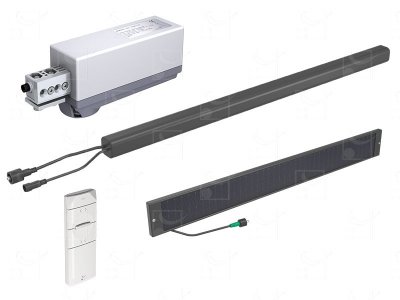

Solar motorisation kit with radio control

Ref: W0002550
Solar motorisation kit (12V DC power supply), with radio control comprising:
- 1 SYCOMM Solar motor (on-board electronics)
- 1 C0014200 radio remote control
- 1 solar panel
- 1 5100 mAh battery
Guarantee 5 years

Sycomm without position-holding brake: the system is reversible. Operation possible by applying a force < 5 kg
View product

Track stop

Ref: 11286XA2-SYN

Track stop with integrated return pulley.

View product

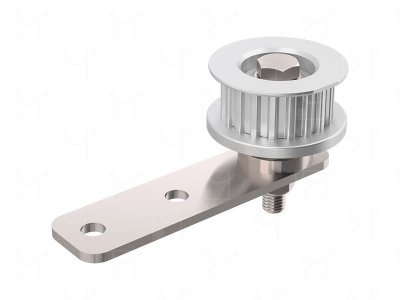

Return pulley

Ref: 10190

Offset return pulley.

View product
Joining bracket

Ref: 11291

A2 stainless steel joining bracket.

View product

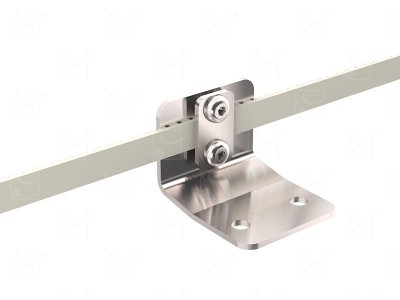

Driving Bracket

Ref: 10192

A2 stainless steel driving bracket

View product
Fixed Point Assembly

Ref: 10171

A2 stainless steel fixed point assembly

View product
