Sliding system for shutters WIN-SLIDE 2

Capacity per panel: 80 kg
Panel thickness: 25-40 mm (up to 80 mm (1 channel) for a "shade screen" type mounting)
Panel types: Wood, Aluminium, PVC,etc.
Track: Anodised aluminium
Movement: Straight

WIN-SLIDE 2 high-end sliding systems.

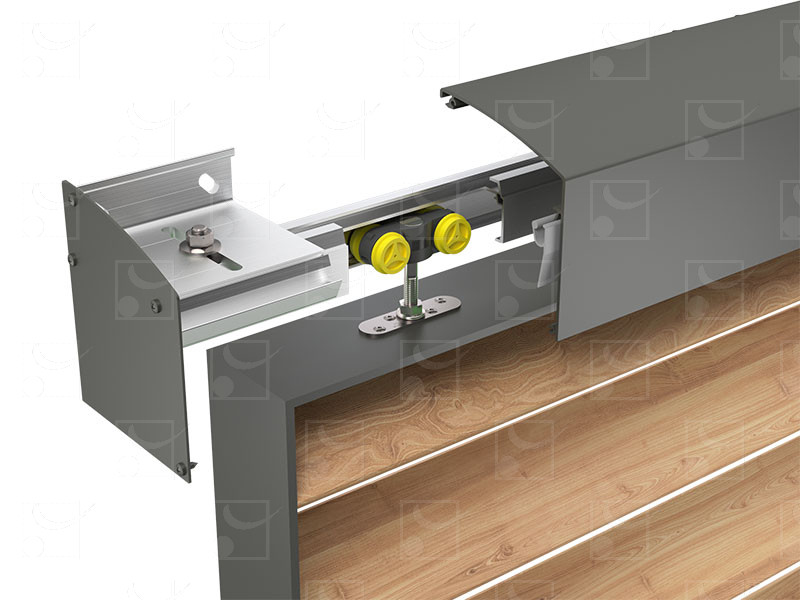

COMPACT: reduced vertical space requirements across the range, with 3-directional adjustment maintained. The brackets have diagonal oblong holes for more stability. New compact pelmet - return pulley integrated into the end stop.
TIME-SAVING: spacing between track fastening points increased by 50% (from 44 to 66 cm)
SAFETY: new end stop with 2 anchoring points in the track
INNOVATION: new damper ensuring panels open and close softly.

The new hanger rollers increase the surface area of the panel exposed to wind

Download the product brochure

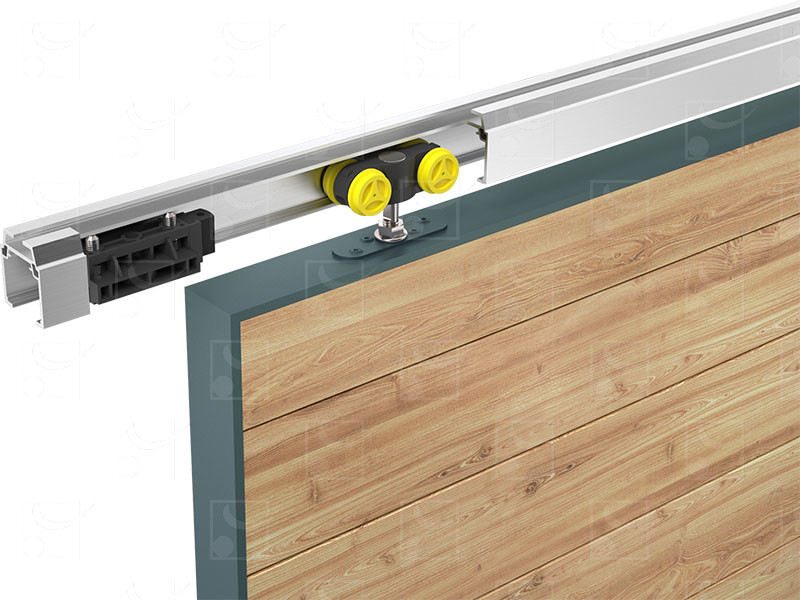

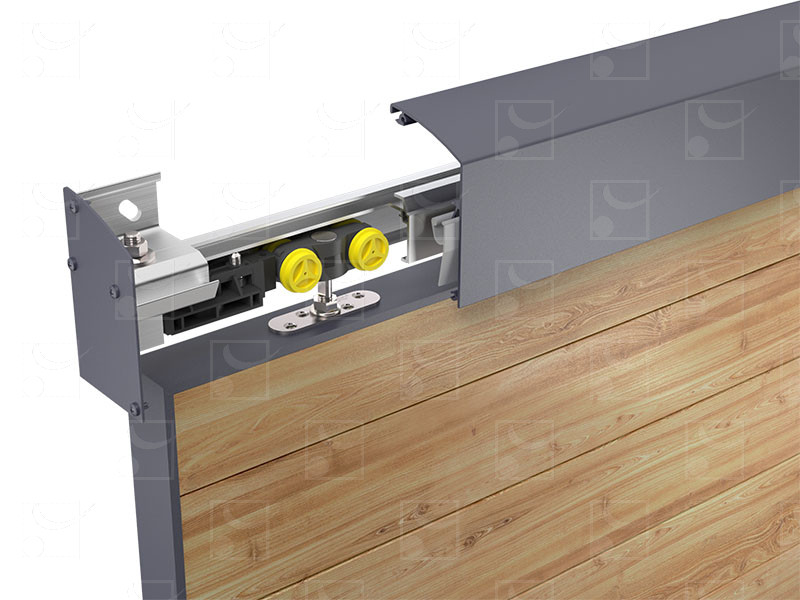

Sliding system for shutters WIN-SLIDE 2 - Image 1

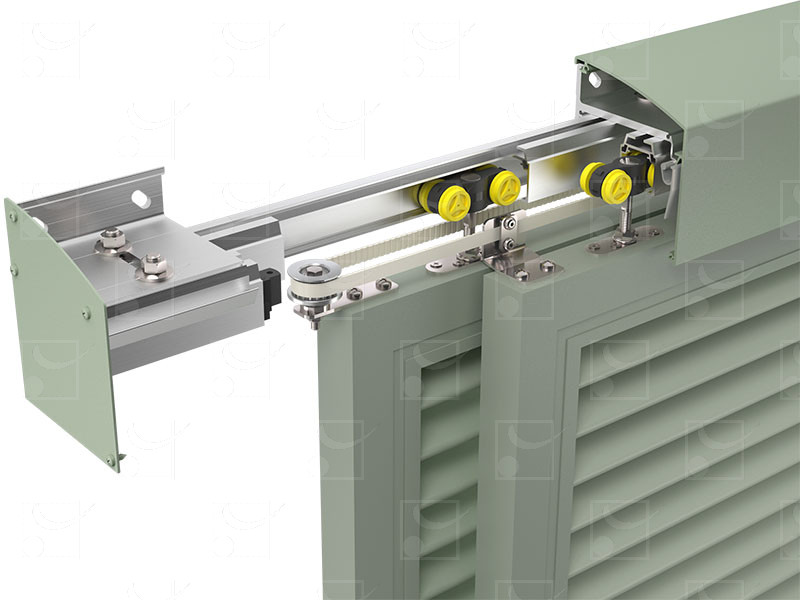

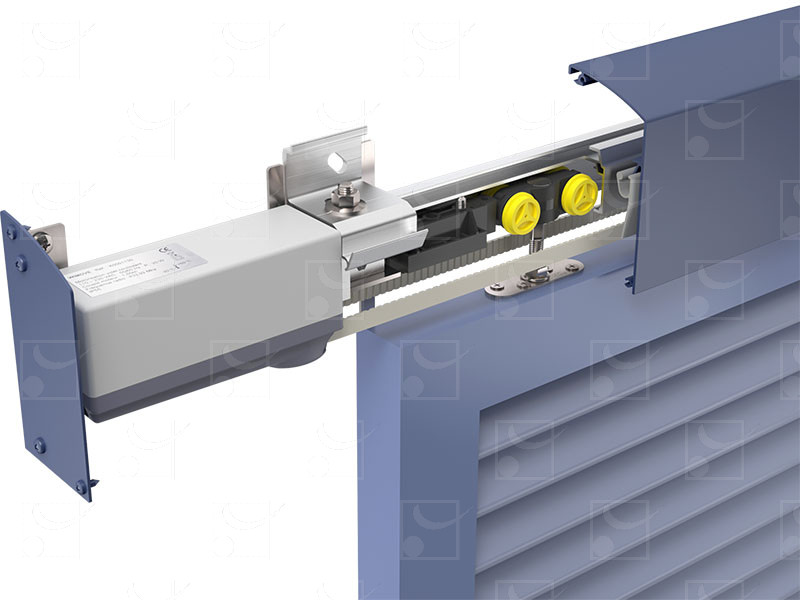

Sliding system for shutters WIN-SLIDE 2 - Image 2

Sliding system for shutters WIN-SLIDE 2 - Image 3

Sliding system for shutters WIN-SLIDE 2 - Image 4

Sliding system for shutters WIN-SLIDE 2 - Image 5

Sliding system for shutters WIN-SLIDE 2 - Image 6

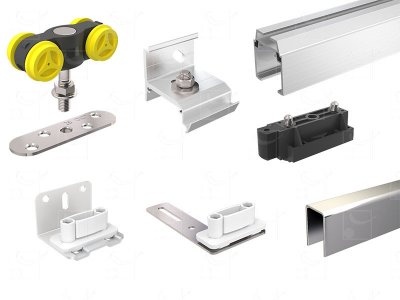

WIN-SLIDE 2 set for one panel

Ref: WSLIDE-2RGV1
Set for 1 leaf up to 80 kg max. :
- 1 track 11208. L = 2 m
- 2 hangers 11280XA2 equipped with 4 rollers, pins mounted roller bearings, A2 stainless steel M8 screws.

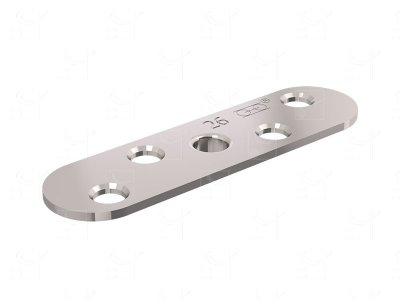

- 2 A2 stainless steel plates 0026XA2 to be screwed on edge
- 2 end stops 11286XA2 with A2 stainless steel fasteners
- 4 raw aluminium adjustable mounting brackets 11293, with A2 stainless steel fasteners
- 1 white plastic adjustable guide 1128ARG, for 25x17 and 30x30 U-profiles, on electrocoated steel bracket + white polyester paint RAL 9010
- 2 white plastic adjustable guides 1131XRG for 25x17 and 30x30 U-profiles on A2 stainless steel tiltable plate
- 1 25x17 zinc-plated steel U-profiles 1109/150. L = 1.5 m
View product

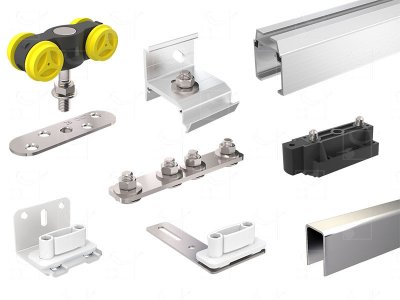

WIN-SLIDE 2 set for two panels

Ref: WSLIDE-2RGV2
Set for 2 leaves up to 80 kg max. :
- 2 tracks 11208. L = 2 m
- 4 hangers 11280XA2 equipped with 4 rollers, pins mounted on roller bearings, A2 stainless steel M8 screws
- 4 A2 stainless steel plates 0026XA2 to be screwed on edge
- 4 11286XA2 end stops with A2 stainless steel fasteners
- 8 raw aluminium adjustable mounting brackets 11293, with A2 stainless steel fasteners
- 1 stainless steel track connector
- 2 white plastic adjustable guides 1128ARG for 25x17 and 30x30 U-profiles, on electrocoated steel brackets + white polyester paint RAL 9010
- 3 white plastic adjustable guides 1131XRG for 25x17 and 30x30 U-profiles on A2 stainless steel tiltable plate
- 2 2517 zinc-plated steel U-profiles 1109/150. L = 1.5 m
View product

Aluminium pelmet – 6 m

Ref: 11263/600

Raw aluminium pelmet to paint. L = 6 m. Available in RAL colours upon request.

*other lenghts available on request

View product
Set of pelmet end caps

Ref: 11266

Set of pelmet end caps 11263, including: 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel fastening screws.

View product

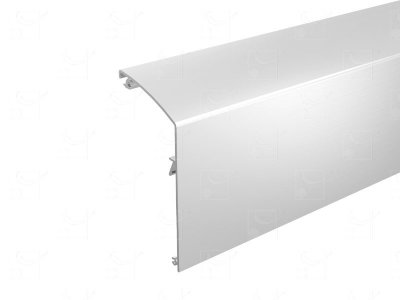

Aluminium pelmet – 6 m

Ref: 11263L/600

Raw aluminium pelmet. L = 6 m.

View product

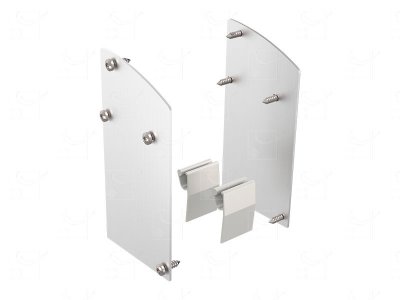

Set of pelmet end caps

Ref: 11266L

Set of pelmet end caps 11263L, for synchronised shutters, including: 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel 3.9 x 19 screws.

View product

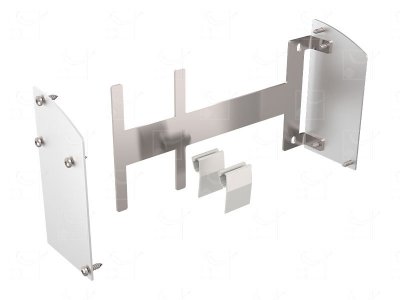

Set of pelmet end caps

Ref: 11266M

DItto for motorised shutters; contains an extra bracket for the end cap on the motor side.

View product
Set of aluminium clamps

Ref: 11269

Set of 5 anodised aluminium clamps for fastening pelmets onto brackets.

View product
Aluminium pelmet – 6 m

Ref: 11264L/600

Raw aluminium pelmet. Length = 6 m.

*other lenghts available on request

View product
Set of pelmet end caps

Ref: 11267L

Set of pelmet end caps 11264L, for manual shutters, including : 2 raw aluminium end caps, 2 pelmet fastening clamps, 8 A4 stainless steel fastening screws.

View product
Set of pelmet end caps

Ref: 11267M

Ditto for motorised shutters; contains an extra bracket for the end cap on the motor side.

View product

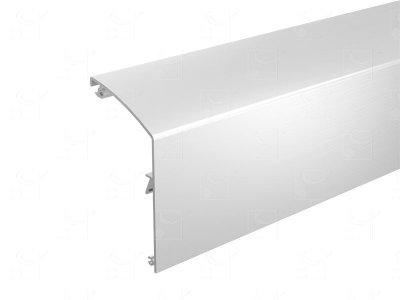

Aluminium pelmet – 2 m

Ref: 11263/200

Raw aluminium pelmet. L = 2 m.

View product
Produit

Ref: 11261/200

View product
Produit

Ref: 11261/300

View product
Raw aluminium pelmet Win-Slide 2 – 6 m

Ref: 11261/600

Raw aluminium pelmet.
Length = 6 m.

View product

Track stop

Ref: 11286XA2

Track stop with two anchoring points. Supplied with A2 stainless steel fasteners.

View product

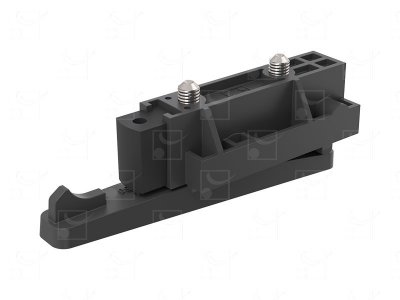

Butée Win-Slide 2

Ref: 11287XA2

Butée Win-Slide 2 avec maintien en PA 6 chargé fibre verre, avec visserie en INOX A2.
Rail associé : 11208.

View product

Moulded notched

Ref: 10172
- Polyurethane drive belt reinforced (Moulded notched)
View product

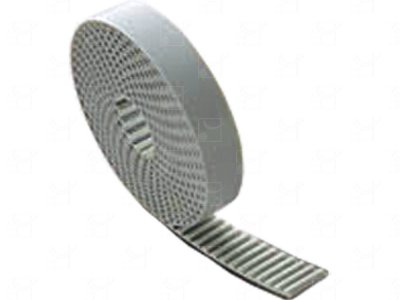

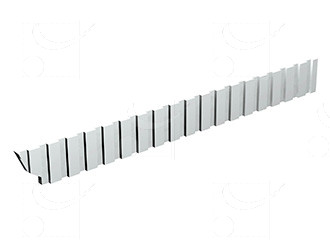

Reinforced cog belt

Ref: 10172/10
- Reinforced cog belt (Moulded notched). Length : 10 m
View product
Reinforced cog belt

Ref: 10172/15
- Reinforced cog belt (Moulded notched). Length : 15 m
View product
Reinforced cog belt

Ref: 10172/25
- Reinforced cog belt (Moulded notched). Length : 25 m
View product
Reinforced cog belt

Ref: 10172/250
- Reinforced cog belt (Moulded notched). Length : 2,5 m
View product
Reinforced cog belt

Ref: 10172/500
- Reinforced cog belt (Moulded notched). Length : 5 m
View product
Reinforced cog belt

Ref: 10172/750
- Reinforced cog belt (Moulded notched). Length : 7,5 m
View product

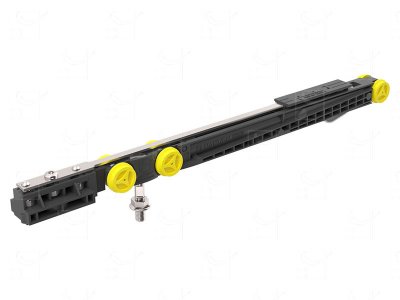

Produit

Ref: 11288M15

View product

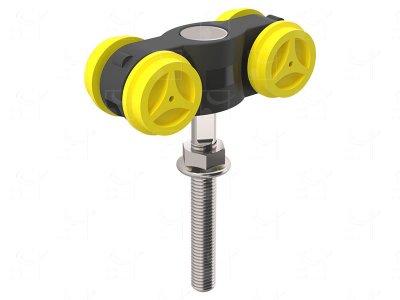

Mounting Win-Slide 2

Ref: 11280LXA2

Mounting with 4 rollers, ball-bearing axles, M8
A2 stainless steel screws (93 mm).
80 kg max. / panel.

View product

Set of 5 anodised aluminium brackets Win-Slide 2

Ref: 11294A

Set of 5 anodised aluminium brackets. For mounting banner 11261. Supplied with A4 stainless steel screws.
Fixes every 450 mm.

View product

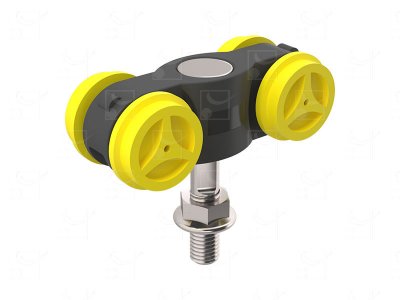

Hanger

Ref: 11280XA2

Hanger equipped with 4 rollers, pins mounted on ball bearings, A2 stainless steel M8 screw (59mm). For panels operated manually, without synchronisation – max. weight 80 kg/panel.

View product

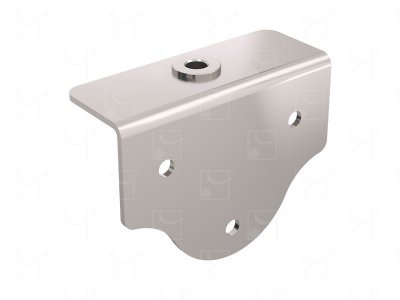

Plate

Ref: 0027XA2

A2 stainless steel bracketto be screwed on panel face (80 x 58 mm). Panel thickness: 28 to 36 mm.

View product

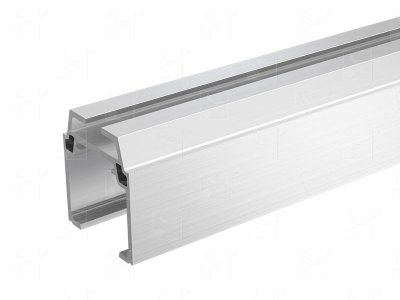

Raw aluminium track – 6 m

Ref: 11208/600

Raw aluminium track, 39 x 36 mm cross-section. L = 6 m.

View product

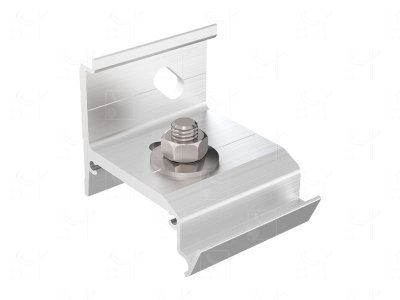

Aluminium mounting bracket

Ref: 11293

Adjustable, single, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.

View product

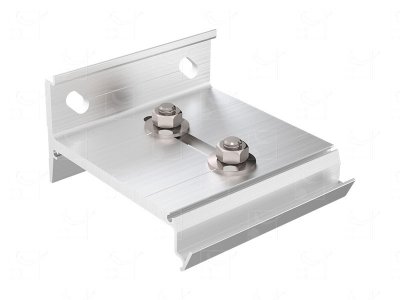

Aluminium mounting bracket

Ref: 11293D

Adjustable, double, raw aluminium mounting bracket. Supplied with A2 stainless steel fasteners. Fastened every 660 mm at most.

View product
Raw aluminium track Win-Slide 2 – 6 m

Ref: 11208P/600

Raw aluminium track, section 39 x 36 mm, drilled every 450 mm.
Length = 6 m.

View product

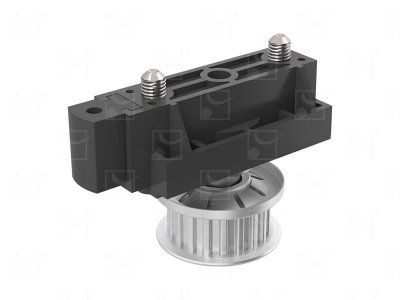

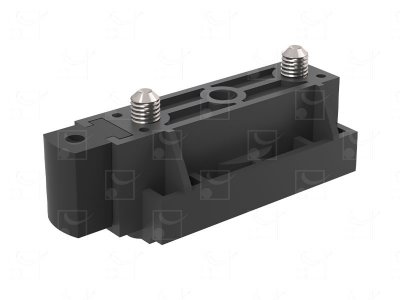

Track stop

Ref: 11286XA2-SYN

Track stop with integrated return pulley.

View product

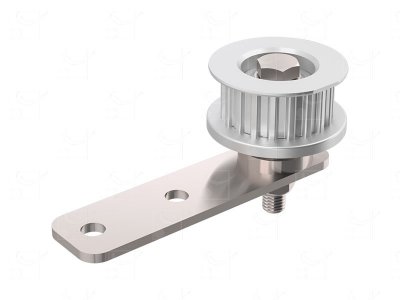

Return pulley

Ref: 10190

Offset return pulley.

View product

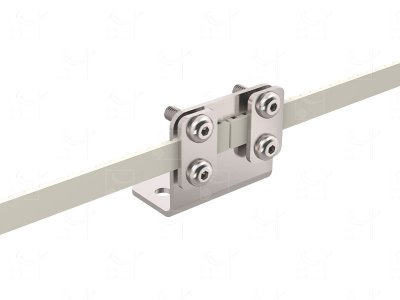

Joining bracket

Ref: 11291

A2 stainless steel joining bracket.

View product

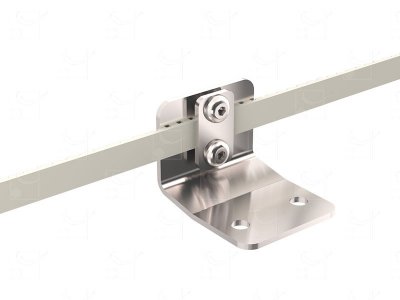

Driving Bracket

Ref: 10192

A2 stainless steel driving bracket

View product

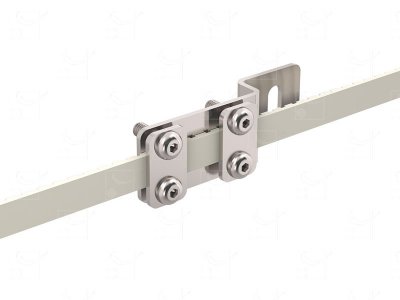

Fixed Point Assembly

Ref: 10171

A2 stainless steel fixed point assembly

View product

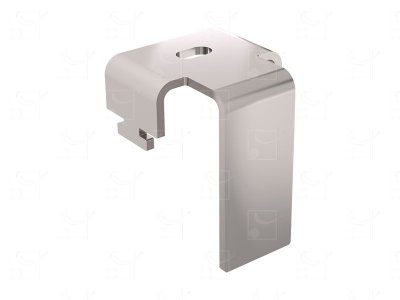

Set of suspensions

Ref: 11295

Set of 5 A2 stainless steel suspensions.

Manual configuration with ceiling mounting : for fastening the pelmet (not supplied by MANTION)

Motorised configuration with ceiling mounting : for installing the motor and fastening the pelmet (not supplied by MANTION).

View product

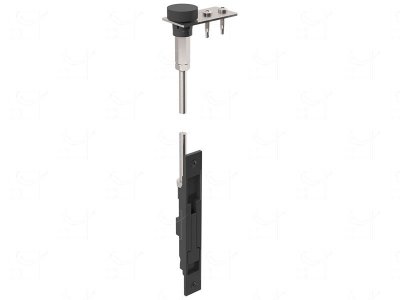

Sunshade stopper kit

Ref: 1310BR-1

Sunshade stopper kit that allows blocking shutters for panels with a maximum height of 3100 mm. Mechanical lock with pressure pad operated by a lever latch. Mechanism to be embedded in the shutter. Packaged in sets of 10.

View product
Sunshade stopper kit

Ref: 1310BR-1-UN

Sunshade stopper kit that allows blocking shutters for panels with a maximum height of 3100 mm. Mechanical lock with pressure pad operated by a lever latch. Mechanism to be embedded in the shutter. Packaged individually.

View product

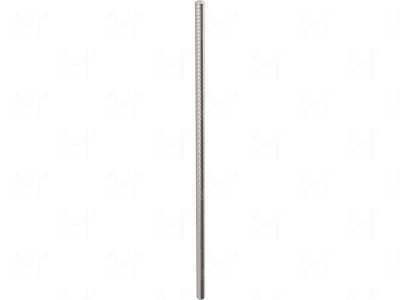

Threaded rods for sunshade stop

Ref: 1310BR-T

Threaded rods for sunshade stop. Packaged in sets of 10.

View product

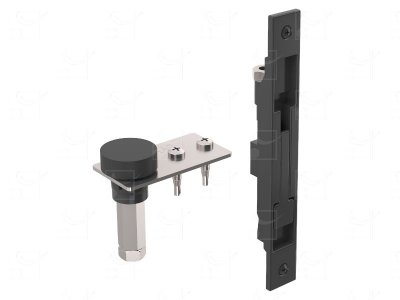

Sunshade gear set

Ref: 1310BR-STI

Sunshade gear set.

View product
