System for sliding shutters WIN-STS Steel track - 80 kg | Mantion

Capacity per panel: 80 kg
Panel thickness: 20-80 mm
Panel types: Wood, Aluminium, PVC ...
Track: Steel
Movement: Straight

* Fabrication

* 12 years guarantee

System for sliding shutters WIN-STS Steel track – 80 kg - Image 1

Track

Ref: 3530/200
- Galvanized track: 35 x 30mm, length, 2m
View product
Track

Ref: 3530/300
- Galvanized track: 35 x 30mm, length, 3m
View product
Track

Ref: 3530/400
- Galvanized track: 35 x 30mm, length, 4m
View product
Track

Ref: 3530/500
- Galvanized track: 35 x 30mm, length, 5m
View product

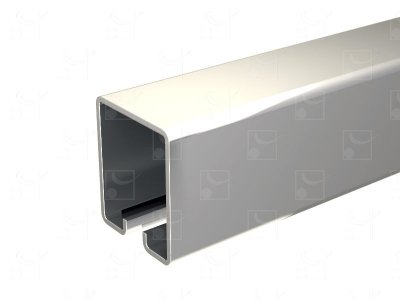

Track

Ref: 3530/600
- Galvanized track: 35 x 30mm, length, 6m
View product

Brackets

Ref: 3531
- Fixing bracket with normal rod
View product

Hanger

Ref: 0633D

Swivelling hanger with adjustable height, Delrin wheels, Ø M10 screw.

Maximum load: 20 kg per panel.

Combined track: 3530.

View product
Plate

Ref: 0036
- Top-fixing screwing plate Ø M10
View product
Angle plate

Ref: 0037
- Angle plate for side fixing, Ø M 10.
View product
Apron set

Ref: 0031
- Adjustable apron set, 25 to 35 mm thickness. Capacity : 40 Kg
View product
End stop

Ref: 1098
- End stop
View product

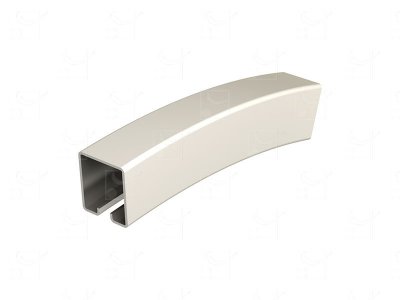

Track

Ref: 3530CH

Galvanized upper curve - track 35x30 R=500 mm.

View product

Pelmet

Ref: 10186/250
- Galvanised steel pelmet or track 9010 - Length = 2,5 m
View product
Pelmet – 1,25 m

Ref: 10186A/125

Electrogalvanized steel pelmet for track 9010 - Length = 1.25 m.

View product
Pelmet – 2,5 m

Ref: 10186A/250

Electrogalvanized steel pelmet for track 9010 - Length = 2.5 m.

View product
Fastener

Ref: 10187/250
- Fastener. To be used with a wooden pelmet
View product

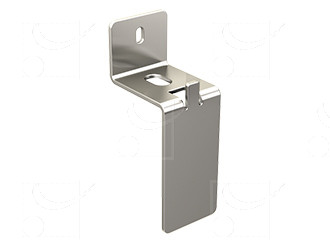

Bracket

Ref: 10185
- Track bracket for shutter
View product

End stop

Ref: 1098-1

Track stop.

View product

Angle plates

Ref: TRD3

Angle plates to move simultaneously 3 panels on 3 parallel tracks.

Parking zone on the right.

Material: stainless steel 304L and rubber.

View product
Angle plates

Ref: TRG3

Angle plates to move simultaneously 3 panels on 3 parallel tracks.

Parking zone on the left.

Material: stainless steel 304L and rubber.

View product
