SAF-TWIN | Mantion

Capacity/door : 80 kg
Track : Aluminium
Movement : Straight

A double straight sliding system for cupboards with 2 or 3 door panels weighing up to 80 kg each and with a maximum thickness of :

- 35 mm for track 11108D35

- 45 mm for track 11108D45

SILENT : The result of many hours of design and testing, our new rollers ensure doors slide softer than ever.
INGENIOUS : Rollers equipped with a ball joint that improves the robustness of the system and adjusts to any mounting location defects.
PRACTICAL : Quick and easy to install thanks to the double track.

EPD

* Number of cycles

* Fabrication

25 years guarantee

SAF-TWIN - Image 1

SAF-TWIN - Image 2

SAF-TWIN - Image 3

SAF-TWIN - Image 4

SAF-TWIN - Image 1

SAF-TWIN - Image 2

SAF-TWIN - Image 3

SAF-TWIN - Image 4

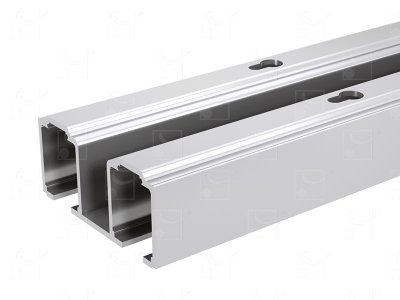

Aluminium double track – L : 1.981 m

Ref: 11108D35/P78

Raw aluminium double track, 33 x 27 mm cross-section, drilled every 0.44 m. Gap between the two tracks = 44.5 mm. Length = 1.981 m.

View product
Aluminium double track – L : 2.997 m

Ref: 11108D35/118

Raw aluminium double track, 33 x 27 mm cross-section, drilled every 0.44 m. Gap between the two tracks = 44.5 mm. Length = 2.997 m.

View product

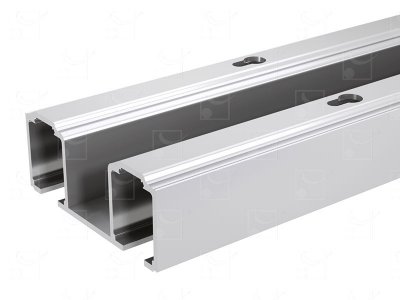

Aluminium double track – L : 1.981 m

Ref: 11108D45/P78

Raw aluminium double track, 33 x 27 mm cross-section, drilled every 0.44 m. Gap between the two tracks = 54 mm. Length = 1.981 m.

View product
Aluminium double track – L : 2.997 m

Ref: 11108D45/118

Raw aluminium double track, 33 x 27 mm cross-section, drilled every 0.44 m. Gap between the two tracks = 54 mm. Length = 2.997 m.

View product

Gear for 1 panel

Ref: SAF80A-7
Gear for one panel, includes :
- 2 rollers SAF81A (stainless steel pins mounted on ball bearings),
- 2 plates 10036,
- 2 stops 11213,
- 1 lower guide 1124,
- Tools and installation instructions
View product

Damper closer

Ref: M66S

Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position. Suitable for doors weighing 21-60 kg. It is recommended that 2 dampers be used for doors with a width of 830 mm or more

View product
Damper closer

Ref: M67S

Buffer damper system for softly opening and/or closing doors (over 100 mm).
The damper automatically accompanies the door to its open and/or closed position. Suitable for doors weighing 61-80 kg. It is recommended that 2 dampers be used for doors with a width of 870 mm or more.

View product

Guide

Ref: 1103R
- Polyamide guide - Screwing type for channel of 6x18 mm
View product

Plate

Ref: 11036

Plate for side-mounted doors. L = 127 mm. Can be installed flush to obtain the smallest gap between the track and door (min. gap of 11 mm required).

View product
