9200 series - For door up to 2000 KG | Mantion

Capacity/Door: 2000 kg
Track: 9060
Movement: Straight

Electrolytic protection of all hangers.

For fire doors: Hangers 9262 S and 9262 SL completely made of steel and equipped with ball bearings.
Hangers designed for automatic operated doors: 9262 SE.
For special applications: « L version » hangers with a 70 mm longer screw.

9200 series – For door up to 2000 KG - Image 1

9200 series – For door up to 2000 KG - Image 2

9200 series – For door up to 2000 KG - Image 3

9200 series – For door up to 2000 KG - Image 1

9200 series – For door up to 2000 KG - Image 2

9200 series – For door up to 2000 KG - Image 3

Hanger

Ref: 9262S
- Hanger with swanneck and 4 steel wheels mounted on ball bearings. Capacity per door : 1200kg
View product
Hanger

Ref: 9262SL
- Hanger with long fixing bolt (160 mm) : Capacity per door : 1200kg
View product
Hanger

Ref: 9262SE
- Hanger for automatic doors, idem 9262S equipped with a guiding wheel at each end.Capacity per door :700 kg
View product
Hanger

Ref: 9262SEL
- Hanger with long fixing bolt (160 mm). Capacity per door :700 kg
View product

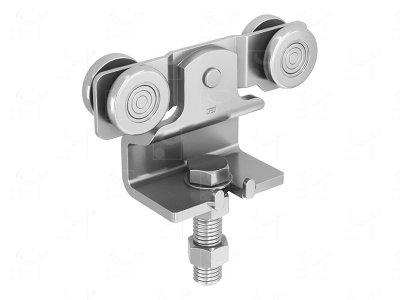

Hanger

Ref: 9264S
- Hanger with swanneck and 4 steel wheels mounted on ball bearings Capacity per door : 1200kg
View product
Hanger

Ref: 9265S
- Hanger with removable collar, with 4 steel wheels mounted on ball bearings Capacity per door : 1200kg
View product
Hanger

Ref: 9265SL
- Hanger with long fixing bolt (160 mm) : Capacity per door : 1200kg
View product

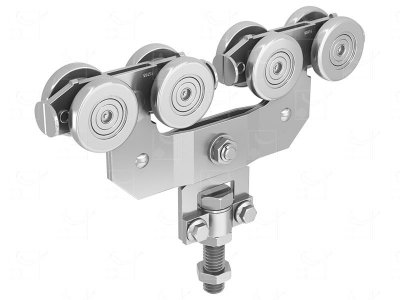

Hanger

Ref: 9268S
- Double hanger with removable collar, with 8 steel wheels mounted on ball bearings Capacity per door :2000kg
View product

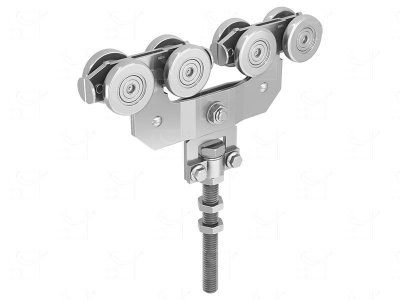

Hanger

Ref: 9268SL
- Hanger with long fixing bolt (160 mm). Capacity per door :2000kg
View product
Plate

Ref: 0085S
- Reinforced plate, welding type Ø M 20.
View product
Plate

Ref: 0086S
- Plate, screwing type for top fixing.
View product
Reinforced U plate

Ref: 0086SW
- Reinforced "U" plate, top fixing
View product
Reinforced U plate

Ref: 0096W
- Reinforced U plate screwing type with Ø M24
View product

Wall fixing angle plate

Ref: 9066

Wall fixing angle plate. Adjustable from 33 to 90 mm. For M20 screw and for track 9060.

View product
Wall fixing angle plate

Ref: 9066L

Wall fixing angle plate. Adjustable from 33 to 150 mm. For M20 screw and for track 9060.

View product
Angle plate

Ref: 8573S
- Angle plate - Screwing type
View product
Plate

Ref: 8576S
- Adjustment plate - Screwing type
View product
Fixing bracket

Ref: 8577
- Fixing bracket - For I-beam
View product

Track

Ref: 9060/600
- Galvanised track: 75 x 80 mm, length, 6m
View product
Track

Ref: 9060N/600
- Black, untreated track: 75 x 80 mm, length, 6m
View product
Track – 4 m

Ref: 9060/400

HERCULE galvanised steel track, 75 x 80 mm cross-section. Thickness = 4.5 mm. Length = 4 m.

View product

Bracket

Ref: 9061L
- Fixing bracket with long rod
View product
Bracket

Ref: 9061M
- Jointing bracket
View product
Bracket

Ref: 9062
- Clamping bracket with normal rod.
View product
Bracket

Ref: 9062N
- Bracket without fixing rod
View product
Bracket

Ref: 9068
- Bracket Welding type
View product
Bracket

Ref: 9068H
- Top-fixing bracket Screwing type
View product
Bracket

Ref: 9068V
- Bracket Wall fixing
View product
