9200 series - For door up to 180 KG | Mantion

Capacity/Door: 180 kg
Track: 9030
Movement: Straight

High stability: all hangers are designed to be in permanent contact with the track.

Electrolytic protection of all hangers.
For special applications : hangers with a screw of 70 mm longer than the standard version.

9200 series – For door up to 180 KG - Image 1

9200 series – For door up to 180 KG - Image 2

9200 series – For door up to 180 KG - Image 3

9200 series – For door up to 180 KG - Image 1

9200 series – For door up to 180 KG - Image 2

9200 series – For door up to 180 KG - Image 3

Hanger

Ref: 9231

Hanger with swanneck and 2 steel wheels mounted on balls.

View product

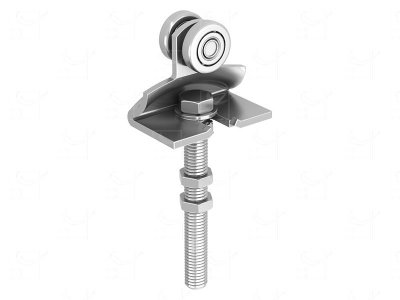

Hanger

Ref: 9231L
- Hanger with long fixing bolt (140 mm)
View product
Hanger

Ref: 9231W
- Hanger with swanneck and 2 steel wheels mounted on balls.
View product
Hanger

Ref: 9236
- Hanger on ball bearing with nylon binding - M12 stainless steel screw - 200 kg per panel
View product
Hanger

Ref: 9232

Hanger with swanneck and 4 steel wheels mounted on balls.

View product
Hanger

Ref: 9232L

Hanger with long fixing bolt (140 mm).

View product
Hanger

Ref: 9235

Hanger with removable collar and 4 steel wheels mounted on balls.

View product

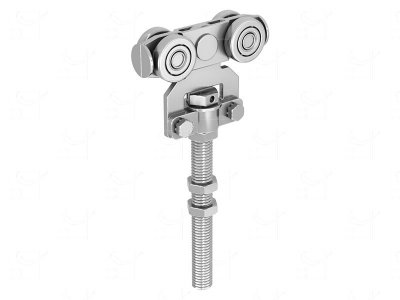

Hanger

Ref: 9235L

Hanger with long fixing bolt (140 mm).

View product
Hanger

Ref: 9234
- Hanger with swanneck and 4 steel wheels mounted on balls
View product
Side fixing plate

Ref: 0055
- Welding plate, side-fixing Ø 13
View product
Plate

Ref: 0056
- Screwing type plate for top fixing, Ø M 12.
View product
U-Plate

Ref: 0056W
- Screwing «U» plate, for top fixing, Ø M 12.
View product
Apron set

Ref: 0051
- Adjustable apron set for panels from 40 to 50 mm thickness - Capacity : 75 kg. Top fixing, screwing type
View product

Wall fixing angle plate

Ref: 9046CFC

Wall fixing angle plate. Adjustable from 35 to 60 mm. For M12.5 screw and for tracks 9030 and 9040.

View product
Wall fixing angle plate

Ref: 9046CF
- Wall fixing angle plate. Adjustable from 32 to 110 mm. For M12.5 screw and for tracks 9030 and 9040.
View product
Wall fixing angle plate

Ref: 9046CFL
- Wall fixing angle plate. Adjustable from 35 to 130 mm. For M12.5 screw and for tracks 9030 and 9040.
View product
Plate

Ref: 9033

Angle plate - Screwing type.

View product
Fixing plate

Ref: 6257
- Fixing plate - Sealing type
View product
Adjustment plate

Ref: 6260
- Adjustment plate - Sealing type
View product
Plate

Ref: 6261
- Adjustment plate - Screwing type
View product
Bracket

Ref: 6262
- Fixing bracket for I-beam
View product

Track

Ref: 9030/600

Galvanised track: 35 x 40 mm, length, 6m.

View product
Track

Ref: 9030N/600

Track 9030 in black STEEL: 35 x 40mm, length, 6 m

View product

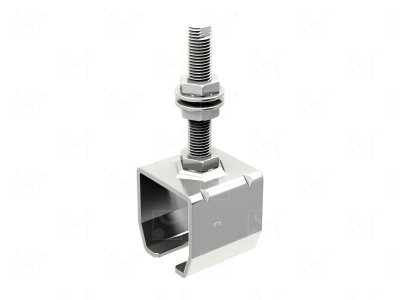

Fixing bracket

Ref: 9031L

Fixing bracket with long rod for track 9030.

View product
Jointing bracket

Ref: 9031M

Jointing bracket for track 9030.

View product
Bracket

Ref: 9032
- Clamping bracket with normal rod.
View product
Bracket

Ref: 9032N
- Bracket without fixing rod
View product
Bracket

Ref: 9038
- Bracket Welding type
View product
Bracket

Ref: 9038H

Top-fixing bracket Screwing type.

View product

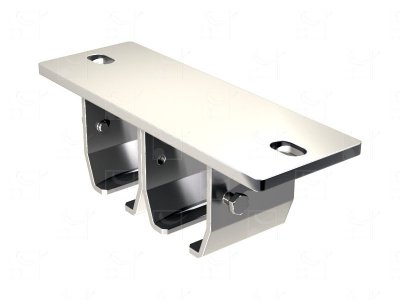

Bracket

Ref: 9038H2

Screw-in ceiling-mounted box bracket, for two 9030 tracks.

View product
Bracket

Ref: 9038V

Bracket Wall fixing.

View product

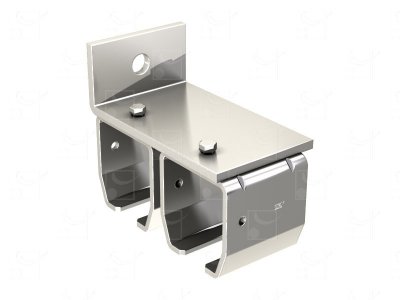

Bracket

Ref: 9038V2

Double Bracket Wall fixing.
