SOFTCLOSE

Capacity/Door: 80 kg
Track: Aluminium
Movement: Straight

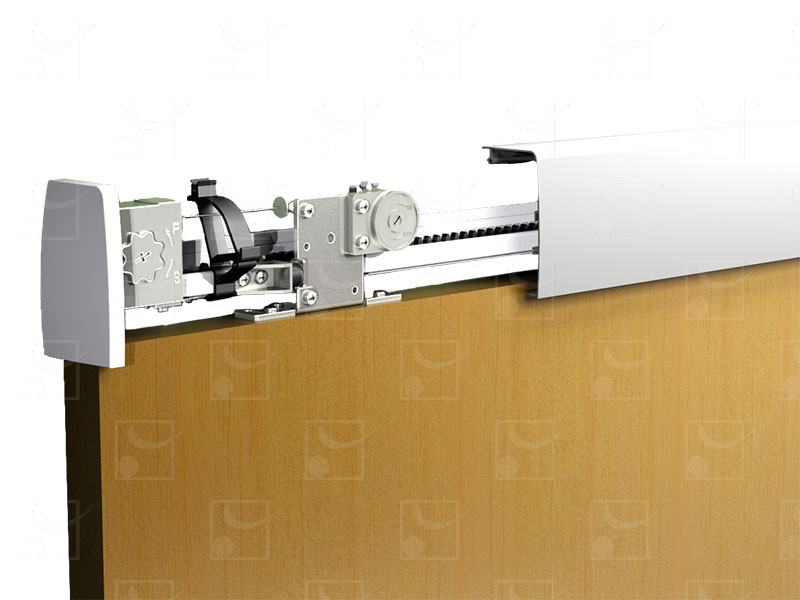

Self closing sliding system designed for aeras that must stay closed.

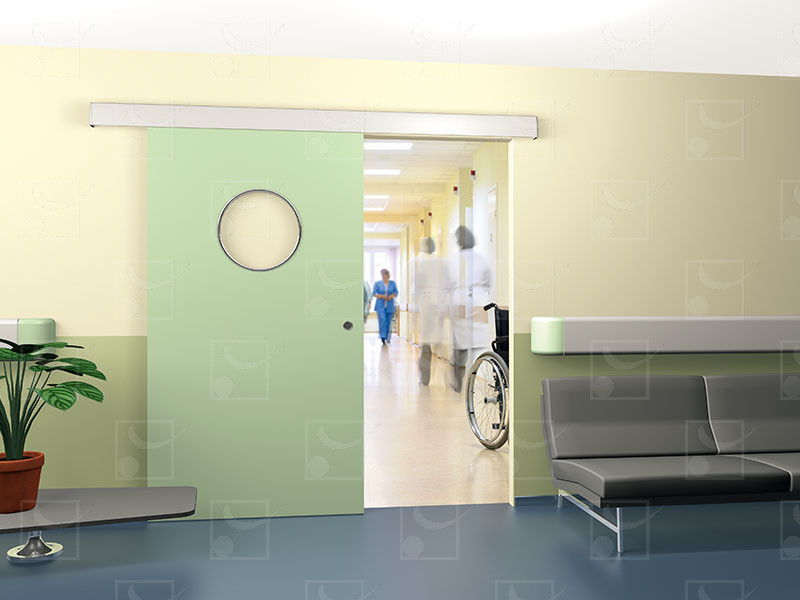

Ideal for public areas and access for mobility-impaired persons
4 kits ready to fit for the following widths of openings: 700 - 800 - 900 and 1000 mm
Perfect finish with anodized aluminium strip (with returns)
Hydraulic retarder for soft and silent closing. Closing speed can be adjusted.

Set for doors 730 to 780 mm wide

Ref: SC-70

Set for doors 730 to 780 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions

View product
Set for doors 830 to 880 mm wide

Ref: SC-80

Set for doors 830 to 880 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions

View product

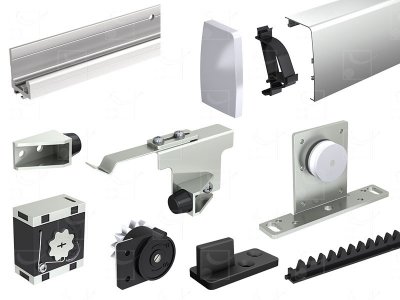

Set for doors 930 to 980 mm wide

Ref: SC-90

Set for doors 930 to 980 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions

View product
Set for doors 1030 to 1080 mm wide

Ref: SC-100

Set for doors 1030 to 1080 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions

View product
Set for doors 1480 to 1530 mm wide

Ref: SC-145

Set for doors 1480 to 1530 mm wide including:
- 1 track in anodized aluminium
- 1 pelmet in anodized aluminium with 2 ends and 2 pelmet brackets
- 2 rollers with ball bearings mounted on plates
- 1 hydraulic brake
- 1 rack
- 1 door closing device (spiral spring)
- 1 «open door» device
- 2 stoppers
- 1 adjustable «open door» stop
- 1 bottom guide
- Screws and assembly instructions

View product

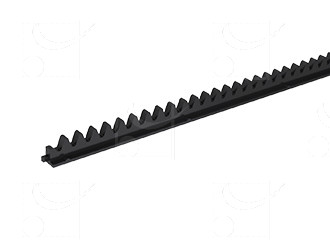

Rack

Ref: 3012CSC
- Additionnal rack allowing closing time adjustment (for SC-145 kit : you have to use 2 racks)
View product

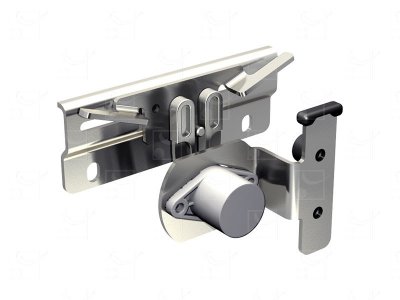

Timer on the right side

Ref: SC-TR

Timer on the right side: The door stays opened until 60 seconds before closing (adjustable).

View product
Timer on the left side

Ref: SC-TL

Timer on the left side: The door stays opened until 60 seconds before closing (adjustable).

View product

Choose your Complete sets

Set for doors 730 to 780 mm wide

Set for doors 830 to 880 mm wide

Set for doors 930 to 980 mm wide

Set for doors 1030 to 1080 mm wide

Set for doors 1480 to 1530 mm wide

Choose your Option for closing

Rack

Timer on the right side

Timer on the left side
