SAF-FOLD for wooden doors up to 80 kg | Mantion

Capacity of the 2 panels: 80 kg
Track: Anodised aluminium
Movement : Folding sliding

Folding sliding system, for wooden doors up to 80 kg.
Folding 1/3 - 2/3.

SAF®-FOLD: sliding / folding system

The solution when conventional sliding doors cannot be fitted

A genuine response to the problem of operating doors faced by persons with reduced mobility ;
Door swing space divided by 3 compared to a standard swing door ;
Saves space when the door is open ;
2 versions available for different types of use :
- a version for "classic" use
- a "heavy duty" version for intensive use (public places

EPD

* Number of cycles

* Fabrication

25 years guarantee

PMR

SAF-FOLD for wooden doors up to 80 kg - Image 1

SAF-FOLD for wooden doors up to 80 kg - Image 2

SAF-FOLD for wooden doors up to 80 kg - Image 3

SAF-FOLD for wooden doors up to 80 kg - Image 4

SAF-FOLD for wooden doors up to 80 kg - Image 5

SAF-FOLD for wooden doors up to 80 kg - Image 1

SAF-FOLD for wooden doors up to 80 kg - Image 2

SAF-FOLD for wooden doors up to 80 kg - Image 3

SAF-FOLD for wooden doors up to 80 kg - Image 4

SAF-FOLD for wooden doors up to 80 kg - Image 5

SAF-FOLD set for doors up to 80 kg

Ref: SFOLD80-140-1
Set for doors up to 80 Kg, including:
- 1 13108 anodised aluminium track. L = 1.4 m drilled every 0.44 m;
- 1 hanger (mounted on ball bearings);
- 1 12036Z Plate + 1 track/panel height adjustment gauge;
- 6 1540 concealed hinges;
- Fasteners and installation instruction.
View product

Wooden frame kit

Ref: SFOLD-F

Wooden door frame kit (finger-jointed limewood), predrilled and pre-routedfor easy installation and a neat finish. Compatible with openings up to 1500 mm wide and up to 2116 mm high.

View product

Anodised aluminium track – 1,95 m

Ref: 13108/195

Anodised aluminium track, 36 x 27 mm crosssection,
drilled every 0.44 m. Length = 2 m.

View product
Anodised aluminium track – 3 m

Ref: 13108/300

Anodised aluminium track, 36 x 27 mm crosssection,
drilled every 0.44 m. Length = 3 m.

View product

Set for doors up to 80 Kg

Ref: SFOLD80-1
Set for doors up to 80 Kg, including:
- 1 hanger (mounted on ball bearings) ;
- 1 12036Z Plate + 1 track/panel height adjustment gauge ;
- 6 1540 concealed hinges ;
- Fasteners and installation instructions.
View product
Heavy duty version for intensive use of the door (public places)

Ref: SFOLD80-2
Set for doors up to 80 Kg, including:
- 1 hanger 13232 (mounted on ball bearings);
- 1 12046 reinforced Plate + 1 track/panel height adjustment gauge;
- 6 reinforced 1575 concealed hinges;
- Fasteners and instructions.
View product

“Invisible” flush-mounted hinge

Ref: 1540
“Invisible” flush-mounted hinge. The hinge is hidden inside the panel and does not protrude from its plane.
Advantages :
- 3-dimensional adjustment: depth (X): +/- 2 mm / vertical (Z): +/- 2.5 mm / horizontal (Y): +/- 1 mm ;
- Reversible hinge;
- 23 mm width.
View product
Concealed hinge for heavy duty use

Ref: 1575
Invisible" concealed hinge. The hinge is hidden inside the panel and does not protrude from its plane. Reinforced version (for intensive consumer use).
- 3D adjustment: depth (X): ± 1 mm / vertical (Z): ± 2 mm / horizontal (Y): ± 1mm
View product
Drilling template

Ref: 1575G

Drilling template for 1540 and 1575 hinges.

Supplied with 4 interchangeable plates to machine different depths.

View product

Stopper

Ref: 11216

End stop

View product
Clamp stop

Ref: 11213

Adjustable stop.

Associated rails: 11108, 13108, 11112 and 11312.

View product

Adhesive sealing brush grey – 2.15 m

Ref: 63C5/215

Grey adhesive brush seal with short bristles (5 mm). Length = 2.15 m

View product
Tubular seal – 10 m

Ref: 66JC5/10

Tubular seal, 5 mm in diameter, made of silicone with a pine base. For 5 x 3 mm groove. Length = 10 m.

View product
Tubular seal – 2.5 m

Ref: 66JC5/250

Tubular gasket, 5 mm diameter, made of silicone with fir base. For 5 x 3 mm groove. Length 2.50 m.

View product

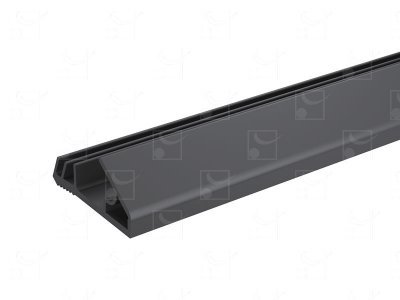

TPE seal

Ref: GHEU30L

TPE seal, sold by the metre. To be fixed on the vertical frame. Seals against noise and dust.

View product
