9200 series - For door up to 900 KG | Mantion

Capacity/Door: 900 kg
Track: 9050
Movement: Straight

Electrolytic protection of all hangers.

For fire doors : Hangers 9252 S and 9252 SL completely made of steel and equipped with ball bearings.
Hangers designed for automatic operated doors : 9252 SE.
For special applications : « L version » hangers with a 70 mm longer screw.

9200 series – For door up to 900 KG - Image 1

9200 series – For door up to 900 KG - Image 2

9200 series – For door up to 900 KG - Image 3

9200 series – For door up to 900 KG - Image 1

9200 series – For door up to 900 KG - Image 2

9200 series – For door up to 900 KG - Image 3

Gear

Ref: 9050GPAF
Special gear for 4-metre-long steel cantilever sliding gates weighing 400 kg.

Gear includes:
- 2 standard cantilever hangers 9952PAF;
- 2 end brackets 1051G;
- 2 lead-in guides 1050E;
- 2 adjustable guides 1062.
View product

Hanger

Ref: 9251
- Hanger with swanneck and 2 steel wheels mounted on balls.
View product
Hanger

Ref: 9251L
- Hanger with long fixing bolt (150 mm)
View product
Hanger

Ref: 9251W
- Hanger with swanneck and 2 steel wheels mounted on balls.
View product
Hanger

Ref: 9252
- Hanger with swanneck and 4 steel wheels mounted on balls
View product
Hanger

Ref: 9252L
- Hanger with long fixing bolt (150 mm)
View product
Hanger

Ref: 9252S
- Roller with stainless steel framing and nylon wheels mounted on ball bearing top fixing Ø M12
View product

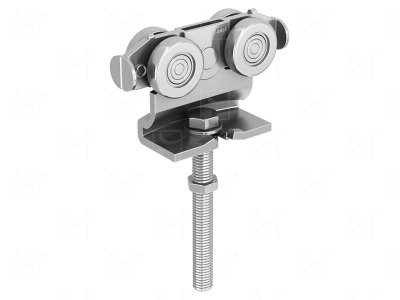

Hanger

Ref: 9252SL
- Hanger with long fixing bolt (150 mm)
View product
Hanger

Ref: 9252SE

Hanger for automatic doors, with a swan neck bracket, 4 steels rollers mounted on ball bearings, and a guiding roller at each end. M16 screw. Capacity/door: 350 Kg. Corresponding track: 9050.

View product
Hanger

Ref: 9252SEL

Hanger for automatic doors, with a swan neck bracket, 4 steels rollers mounted on ball bearings, and a guiding roller at each end. M16 screw, long (150 mm). Capacity/door: 350 kg. Corresponding track: 9050.

View product
Hanger

Ref: 9254S
- Hanger with swanneck and 4 steel wheels mounted on ball bearings
View product
Hanger

Ref: 9255
- Hanger with removable collar, with 4 steel wheels mounted on ball bearings
View product
Hanger

Ref: 9255L
- Hanger with long fixing bolt (150 mm)
View product
Hanger

Ref: 9255S
- Hanger with removable collar, with 4 steel wheels mounted on ball bearings
View product
Hanger

Ref: 9255SL
- Hanger with long fixing bolt (150 mm)
View product
Hanger

Ref: 9256S
- Welding type hanger, with 4 steel wheels mounted on ball bearings.
View product
Fixing hanger

Ref: 9258S
- Top fixing hangers with 8 wheels mounted on balls
View product

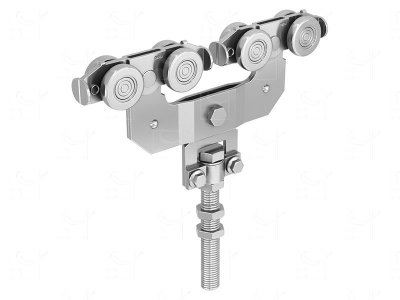

Fixing hanger

Ref: 9258SL
- Top fixing hanger with long fixing bolt (160 mm)
View product
Plate

Ref: 0085
- Plate, welding type Ø M 16.
View product
Plate

Ref: 0085S
- Reinforced plate, welding type Ø M 20.
View product
Plate

Ref: 0086
- Plate, screwing type for top fixing Ø M 16.
View product
Plate

Ref: 0086S
- Plate, screwing type for top fixing.
View product
Reinforced U plate

Ref: 0086SW
- Reinforced "U" plate, top fixing
View product
Adjustable apron set

Ref: 0081
- Adjustable apron set for 55 to 75 mm panels - Ø M16
View product

Wall fixing angle plate

Ref: 9056CFC

Wall fixing angle plate. Adjustable from 40 to 65 mm. For M16.5 screw and for track 9050.

View product
Wall fixing angle plate

Ref: 9056CF

Wall fixing angle plate. Adjustable from 30 to 105 mm. For M16.5 screw and for track 9050.

View product
Wall fixing angle plate

Ref: 9056CFL

Wall fixing angle plate. Adjustable from 30 to 135 mm. For M16.5 screw and for track 9050.

View product
Plate

Ref: 8572
- Fixing plate - Sealing type
View product
Angle plate

Ref: 8573S
- Angle plate - Screwing type
View product
Plate

Ref: 8575
- Adjustment plate - Sealing type
View product
Plate

Ref: 8576
- Adjustment plate - Screwing type
View product
Fixing bracket

Ref: 8577
- Fixing bracket - For I-beam
View product

Track

Ref: 9050/600
- Galvanized track 9050: 60 x 65, length, 6m
View product
Track

Ref: 9050N/600
- Raw track 9050: 60 x 65, length, 6m
View product
Track – 4 m

Ref: 9050/400

HERCULE track in galvanised steel. Length = 4 m.

View product

Bracket

Ref: 9051L
- Jointing bracket
View product
Jointing bracket

Ref: 9051M
- Jointing bracket - For track 9050
View product
Bracket

Ref: 9052
- Clamping bracket with fixing rod
View product
Bracket

Ref: 9052N

Clamping bracket without fixing rod

View product
Bracket

Ref: 9058

Bracket Welding type

View product
Bracket

Ref: 9058H
- Top-fixing bracket Screwing type
View product
Bracket

Ref: 9058H2
- Double bracket
View product
Bracket

Ref: 9058V
- Bracket Wall fixing
View product
Bracket

Ref: 9058V2
- Double bracket
View product
