  • Invisible door closer

    Invisible door closer

    Capacity/Door: 200 kg
    Movement: Gates mounted on pivots

  • Gates mounted on pivots – Hinge to seal with apron set to screw

    Gates mounted on pivots – Hinge to seal with apron set to screw

    Steel hinge with a raw steel screw-in or weld-on clevis. The galvanized hinge rod is equipped with a cast-in-place insert. Versatile range, for gates weighing up to 100 kg.
  • Gates mounted on pivots – Adjustable hinge (180°opening)

    Gates mounted on pivots – Adjustable hinge (180°opening)

    Steel hinge with a raw steel weld-on clevis. The galvanized hinge rod is mounted on a weld-on raw steel plate. This hinge allows the gate to be opened to 180 degrees. The vertical alignment of the gate is adjusted dynamically, without removing the hinge pin. Versatile range, for gates weighing up to 100 kg.
  • Gates mounted on pivots – Hinge to weld with apron set to screw

    Gates mounted on pivots – Hinge to weld with apron set to screw

    Steel hinge with a screw-in or weld-on raw steel clevis. The galvanized hinge rod is mounted on a weld-on plate. The vertical alignment weld gate is adjusted dynamically, without removing the hinge pin. Versatile range, for gates weighing up to 150 kg.
  • Gates mounted on pivots – Hinge to screw with apron set to weld

    Gates mounted on pivots – Hinge to screw with apron set to weld

    Steel hinge with a weld-on raw steel clevis. The galvanized hinge rod is screwed in through a steel, or other, upright. Versatile range, for gates weighing up to 200 kg.
  • Gates mounted on pivots – Hinge to screw with apron set to screw

    Gates mounted on pivots – Hinge to screw with apron set to screw

    Steel hinge with a screw-in or weld-on raw steel clevis. The galvanized hinge rod is screwed in through a steel, or other, upright. Versatile range, for gates weighing up to 200 kg.
  • Gates mounted on pivots – Pivots with fastener for gates up to 80 Kg

    Gates mounted on pivots – Pivots with fastener for gates up to 80 Kg

    Pivot with upper and lower heads to be inserted in a square-shaped tube. Both heads are equipped with a lubricator. The lower head is mounted on a ball bearing to reduce the stress of the gate’s rotational force. Pivot equipped with screw-in or cast-in-place fastening plates. A covering can be added to the upper part […]
  • Adjustable pivots to weld

    Adjustable pivots to weld

    Steel pivot with the top part mounted on ball bearings and the lower part on tapered roller bearings to bear the weight of the gate. Weld-on pivot. The top part of the pivot is equipped with 2 screws to adjust the vertical alignment of the gate. Covering a wide range of weights – view the […]
  • Adjustable pivots to screw

    Adjustable pivots to screw

    Steel pivot with the top part mounted on ball bearings and the lower part on tapered roller bearings to bear the weight of the gate.
    The pivot is mounted on a screw-in bracket to make it easier to install.
    The top part of the pivot is equipped with 2 screws to adjust the vertical alignment of the gate.
    Covering a wide range of weights – view the chart in Mantion’s catalogue 411.

  • Sliding gates – Steel wheels – Round groove wheels

    Sliding gates – Steel wheels – Round groove wheels

    White galvanized steel, round-groove roller, equipped with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 1500 kg – always use two rollers per gate. Roller compatible with round-shaped tracks. The 20000 range, with its through bolt, enables you to install the roller under the gate more easily, whatever the set-up.
  • Sliding gates – Steel wheels – Triangular groove wheels

    Sliding gates – Steel wheels – Triangular groove wheels

    White galvanized steel, triangular-groove roller, equipped with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 1500 kg – always use two rollers per gate. Roller compatible with triangular-shaped tracks. The 20000 range, with its through bolt, enables you to install the roller under the gate more easily, whatever the set-up.
  • Sliding gates – Steel wheels – Steel external mounting brackets – Round groove wheels

    Sliding gates – Steel wheels – Steel external mounting brackets – Round groove wheels

    Hanger with an external mounting bracket equipped with a round-groove white galvanized steel roller, with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 800 kg – always use two rollers per gate. Roller compatible with round-shaped tracks. The 21000 range, with clevis, avoids you having to machine the gate beam. […]
  • Sliding gates – Steel internal mounting bracket

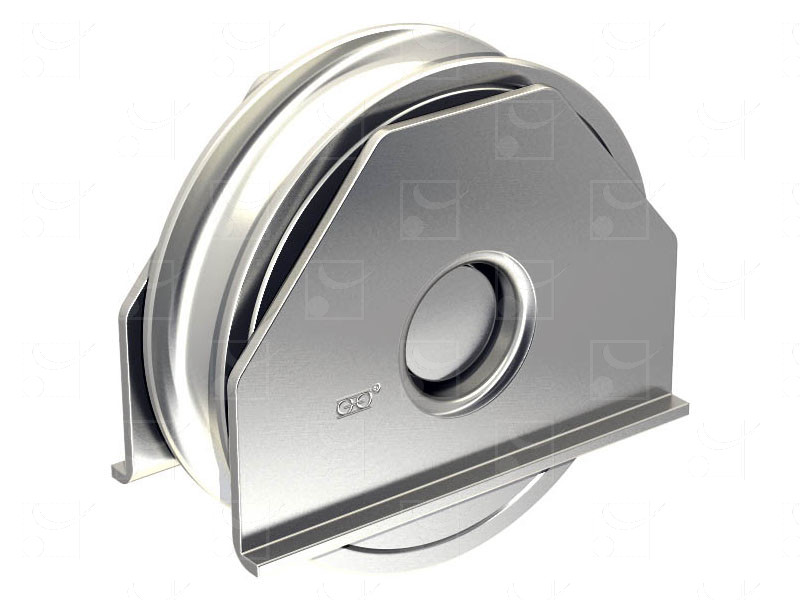

    Sliding gates – Steel internal mounting bracket

    This weld-on hanger with an internal mounting bracket is equipped with a white galvanized steel round-groove roller, with waterproof ball bearings. It is compatible with gates up to 400 kg – always use two rollers per gate. Roller compatible with round-shaped tracks. The 23000 range, with a clevis that can be welded flush onto the gate, […]
  • Sliding gates – Steel wheels – Steel external mounting brackets – Triangular groove wheels

    Sliding gates – Steel wheels – Steel external mounting brackets – Triangular groove wheels

    Hanger with an external mounting bracket equipped with white galvanized steel triangular-groove roller, with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 800 kg – always use two rollers per gate. Roller compatible with triangular-shaped tracks. The 21000 range, with clevis, avoids you having to machine the gate beam. It’s […]
  • Sliding gates – Steel wheels – Steel internal mounting bracket – Round groove wheels

    Sliding gates – Steel wheels – Steel internal mounting bracket – Round groove wheels

    This hanger with an internal mounting bracket is equipped with a white galvanized steel round-groove roller, with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 1100 kg – always use two rollers per gate. Roller compatible with round-shaped tracks. The 22000 range, with a clevis that can be flush-mounted onto […]
  • Sliding gates – Steel wheels – Steel internal mounting bracket – Triangular groove wheels

    Sliding gates – Steel wheels – Steel internal mounting bracket – Triangular groove wheels

    This hanger with an internal mounting bracket is equipped with a white galvanized steel triangular-groove roller, with waterproof ball bearings. Covering a wide range of weights, compatible with gates up to 1100 kg – always use two rollers per gate. Roller compatible with triangular-shaped tracks. The 22000 range, with a clevis that can be flush-mounted onto […]
  • Sliding gates – Cast iron wheels (round or square tracks)

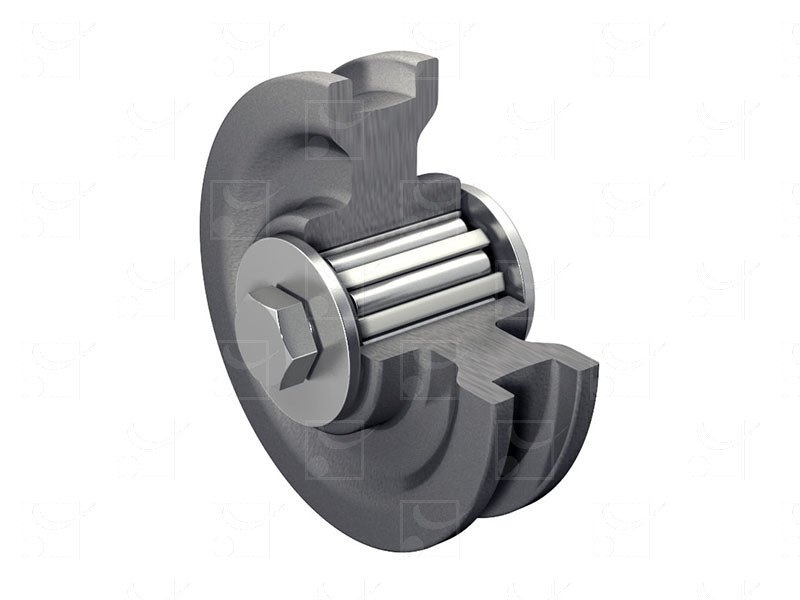

    Sliding gates – Cast iron wheels (round or square tracks)

    Cast iron roller equipped with a roller frame or waterproof ball bearings depending on the capacity of the roller – please refer to the data sheet for each product. This range is compatible with gates up to 1000 kg – always use 2 rollers per gate. The wide round-groove allows the roller to be used for […]
  • Sliding gates – Inox wheels

    Sliding gates – Inox wheels

    Range of 304L stainless steel rollers and hangers with an internal mounting bracket. The roller is equipped with waterproof ball bearings. This range is compatible with gates up to 1000 kg – always use 2 rollers per gate. Roller compatible with round-shaped stainless steel tracks. The 22000 version, with a clevis that can be flush-mounted onto […]
  • Gates mounted on pivots – Hinge on plate to screw

    Gates mounted on pivots – Hinge on plate to screw

    Steel hinges with a raw steel screw-in or weld-on clevis. The galvanized hinge rod is mounted on a screw-in plate. The vertical alignment of the gate is adjusted dynamically, without removing the hinge pin. Versatile range, for gates weighing up to 150 kg.
  • Steel cantilever gate – PAF version

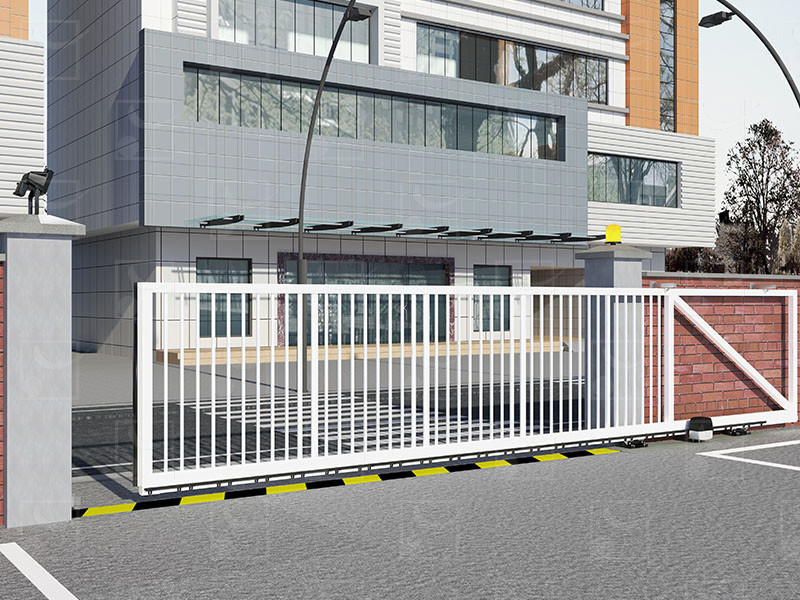

    Steel cantilever gate – PAF version

    Capacity: maximum opening of up to 10.5 m
    Track: Steel
    Movement: Straight
    Hangers recommended for motorised version

    Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.

  • Steel cantilever gate – S version

    Steel cantilever gate – S version

    Capacity: maximum opening of up to 10.5 m
    Track: Steel
    Movement: Straight

    Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.


  • Cantilever on an aluminium track

    Cantilever on an aluminium track

    Capacity: maximum opening of up to 6 m
    Track: Aluminium
    Movement: Straight

    Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers.
